Revolt 1

Share
Skip to compare section

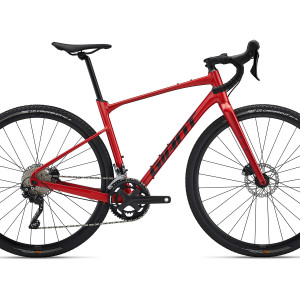

Ride roads, gravel or dirt with this all-new aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

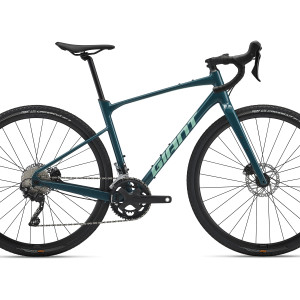

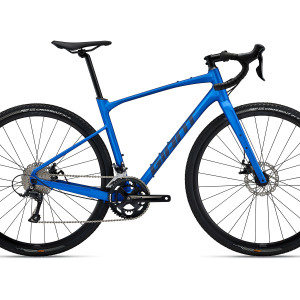

Gallery

Highlights

The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.

Revolt with interactive tooltips

Techs & Features

ALUXX SL Aluminum Technology
D-Fuse Technology
OverDrive
Tubeless System
Flip Chip - Dropout

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1” to 166 cm5’5”
  • S
      159 cm5’3” to 171 cm5’7”
  • M
      169 cm5’7” to 181 cm5’11”
  • ML
      174 cm5’9” to 186 cm6’1”
  • L
      179 cm5’10” to 191 cm6’3”
  • XL
      189 cm6’2” to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ASeat Tube Length (mm) (inch)43016,945017,747018,549019,351020,153020,9
BSeat Tube Angle (degrees)74,0°73,5°73,5°73,0°73,0°73,0°
CTop Tube Length (mm) (inch)54021,355021,75602257522,65852360023,6
DHead Tube Length (mm) (inch)1254,91355,31505,91656,51807,11957,7
EHead Tube Angle (degrees)70,0°71,0°71,5°72,0°72,0°72,0°
FFork Rake (mm) (inch)502502502502502502
GTrail (mm) (inch)783,1 | 823,2722,8 | 753682,7 | 722,8652,6 | 682,7652,6 | 682,7652,6 | 682,7
HWheelbase (mm) (inch)102940,5 | 103940,9102540,4 | 103540,7103040,6 | 104040,9103540,7 | 104541,1104541,1 | 105541,5106141,8 | 107142,2
IChain Stay Length (mm) (inch)43016,9 | 44017,343016,9 | 44017,343016,9 | 44017,343016,9 | 44017,343016,9 | 44017,343016,9 | 44017,3
JBottom Bracket Drop (mm) (inch)803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2
KStack (mm) (inch)55621,957022,458623,160223,761624,363024,8
LReach (mm) (inch)381153811538715,239115,439715,640716
MStand Over Height (mm) (inch)71728,2 | 72428,573428,9 | 74129,275229,6 | 75929,976930,3 | 77630,678630,9 | 79331,280131,5 | 81031,9
NHandlebar Width (mm) (inch)42016,542016,544017,344017,346018,146018,1
OStem Length (mm) (inch)702,8803,1903,51003,91003,91104,3
PCrank Length (mm) (inch)1706,71706,7172,56,8172,56,81756,91756,9
QWheel Size 700x 42C | 50C700x 42C | 50C700x 42C | 50C700x 42C | 50C700x 42C | 50C700x 42C | 50C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Grenadine, Deep Lake
  • Frame
    ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    cork tape with gel
  • Stem
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano GRX RX-400, 2x10
  • Front Derailleur
    Shimano Tiagra
  • Rear Derailleur
    Shimano GRX RX-400
  • Brakes
    Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-400 hydraulic
  • Cassette
    Shimano HG500, 11x34
  • Chain
    KMC X10 with Missing Link
  • Crankset
    FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    FSA Mega EXA, press fit
  • Rims
    Giant S-X2 Disc wheelset
  • Hubs
    Giant S-X2 Disc wheelset
  • Spokes
    Giant S-X2 Disc wheelset
  • Tires
    Giant CrossCut AT 2, 700x38c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

All specifications listed are subject to change without notice.
