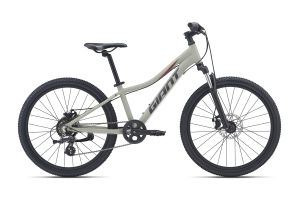

XtC Jr Disc 24

2021

$530

By a professional mechanic

Original Owners

Within 14 Days

Big-time off-road performance in a small package. With an aluminum frame, front suspension and disc brakes, they’re ready to conquer the climbs and have fun on the descents.

The disc-brake version of the XtC Jr. gives added control for more advanced trails and conditions. With its lightweight aluminum frame, front suspension, and fast-rolling 24-inch wheels, he’s ready to roll on off-road adventures.

Key Performance Factors

Lightweight frame

ALUXX-grade aluminum frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.

Confidence and control

Size-specific 24-inch wheels, front suspension and disc brakes give young riders the performance they need for true off-road riding.

Kid-friendly features

Youth-specific performance components help young riders improve their off-road skills.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      130 cm4’3”  to 150 cm4’11”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Seat Tube Length (mm) (inch)30512
B Seat Tube Angle (degrees)72.0°
C Top Tube Length (mm) (inch)52020.5
D Head Tube Length (mm) (inch)1204.7
E Head Tube Angle (degrees)70.0°
F Fork Rake (mm) (inch)401.6
G Trail (mm) (inch)692.7
H Wheelbase (mm) (inch)98338.7
I Chain Stay Length (mm) (inch)41016.1
J Bottom Bracket Drop (mm) (inch)240.9
K Stack (mm) (inch)51820.4
L Reach (mm) (inch)35213.9
M Stand Over Height (mm) (inch)61324.1
N Handlebar Width (mm) (inch)56022
O Stem Length (mm) (inch)602.4
P Crank Length (mm) (inch)1526
Q Wheel Size 24"
Specs
  • Sizes
    one size
  • Colors
    Concrete
  • Frame
    ALUXX-Grade Aluminum
  • Fork
    Giant WIN254, 50mm
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8
  • Stem
    forged alloy Ahead, 8-degree
  • Seatpost
    alloy, single-bolt, 27.2
  • Saddle
    Giant Jr. Sports
  • Pedals
    platform
  • Shifters
    Shimano RevoShifter
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Tourney
  • Brakes
    mechanical disc
  • Brake Levers
    alloy, junior MTB
  • Cassette
    14x34
  • Chain
    KMC HV500
  • Crankset
    alloy, 32t, 140mm
  • Bottom Bracket
    semi-cartridge
  • Rims
    Giant Kids 24", alloy
  • Hubs
    nutted, 28h
  • Spokes
    stainless, 14g
  • Tires
    Giant Junior Sport 24x2.1",22 tpi
  • Extras
    bell, kickstand
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
