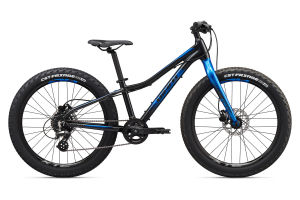

XTC Jr 24 +

2020

$575

Big tires, big fun. This junior-sized mountain bike has loads of traction and stability, giving young riders confidence to improve their skills and have more fun riding off-road.

The XtC Jr. 24+ is designed to give young riders more confidence and control. Featuring a lightweight ALUXX aluminum frame with a low stand-over height and geometry designed for smaller bodies, it has stable handling to help ride tricky sections of trail. Its specially sized, smaller diameter 24-inch wheels come with extra-wide 2.8-inch tires, which add comfort and traction. The soft, cushy tires can be ridden with lower air pressure, giving the bike a smooth ride on rocky, bumpy trails. It also features a lightweight, easy-to-use 1x9 drivetrain, powerful disc brakes, and youth-sized components for added comfort and control.

Key Performance Factors

Lightweight frame

ALUXX-grade aluminum frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.

Confidence and control

24-inch wheels and high-volume “Plus” size tires create a cushioned off-road ride quality for added control and confidence.

Kid-friendly features

Youth-specific performance components help young riders improve their off-road skills.

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      130 cm4’3”  to 150 cm4’11”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
ASeat Tube Length (mm) (inch)30512
BSeat Tube Angle (degrees)73.0°
CTop Tube Length (mm) (inch)52020.5
DHead Tube Length (mm) (inch)1104.3
EHead Tube Angle (degrees)70.0°
FFork Rake (mm) (inch)401.6
GTrail (mm) (inch)81.93.2
HWheelbase (mm) (inch)99939.3
IChain Stay Length (mm) (inch)42516.7
JBottom Bracket Drop (mm) (inch)451.8
KStack (mm) (inch)52020.5
LReach (mm) (inch)36114.2
MStand Over Height (mm) (inch)57122.5
NHandlebar Width (mm) (inch)64025.2
OStem Length (mm) (inch)602.4
PCrank Length (mm) (inch)1526
QWheel Size 24"
Specs
  • Sizes
    one size
  • Colors
    Gunmetal Black
  • Frame
    ALUXX-Grade Aluminum
  • Fork
    alloy
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8
  • Stem
    forged alloy Ahead, 8-degree
  • Seatpost
    alloy, single-bolt, 30.9x350
  • Saddle
    Giant Grow Technology
  • Pedals
    platform
  • Shifters
    Shimano Altus SL-M315
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Altus
  • Brakes
    Shimano MT-200, hydraulic disc
  • Brake Levers
    Shimano
  • Cassette
    Shimano HG31, 11x34
  • Chain
    KMC Z7
  • Crankset
    alloy forged, 32t
  • Bottom Bracket
    cartridge
  • Rims
    alloy, 35mm width
  • Hubs
    Giant Disc, 28h, 100/148, QR, alloy, disc
  • Spokes
    stainless, 14g
  • Tires
    CST C1918, 24x2.8
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
