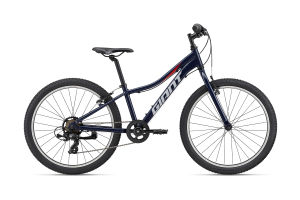

XTC Jr 24 Lite

2022

$440

Lightweight and trail-ready, this little dirt shredder has a wide range of gears to tackle hills, plus a durable build that can handle their adventures.

Key Performance Factors

Lightweight frame

ALUXX-grade aluminum frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.

Confidence and control

Size-specific wheels give young riders the performance they need for true off-road riding.

Kid-friendly features

Youth-specific performance components help young riders improve their off-road skills.

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      130 cm4’3”  to 150 cm4’11”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
ASeat Tube Length (mm) (inch)30512
BSeat Tube Angle (degrees)72.0°
CTop Tube Length (mm) (inch)52020.5
DHead Tube Length (mm) (inch)1204.7
EHead Tube Angle (degrees)70.0°
FFork Rake (mm) (inch)401.6
GTrail (mm) (inch)69.92.7
HWheelbase (mm) (inch)98338.7
IChain Stay Length (mm) (inch)41016.1
JBottom Bracket Drop (mm) (inch)240.9
KStack (mm) (inch)51820.4
LReach (mm) (inch)35213.9
MStand Over Height (mm) (inch)61624.3
NHandlebar Width (mm) (inch)56022
OStem Length (mm) (inch)602.4
PCrank Length (mm) (inch)1526
QWheel Size 24"
Specs
  • Sizes
    one size
  • Colors
    Eclipse, Trekking Green, Eclipse
  • Frame
    ALUXX-Grade Aluminum
  • Fork
    high-tensile steel, rigid
  • Shock
    N/A
  • Handlebar
    Giant Jr MTB, 25.4mm
  • Grips
    Giant Junior
  • Stem
    steel, quill
  • Seatpost
    alloy, 27.2x300mm
  • Saddle
    Giant Jr. Sports
  • Pedals
    platform
  • Shifters
    Shimano REVOSHIFT, 1x7
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Tourney
  • Brakes
    alloy, linear pull
  • Brake Levers
    alloy, junior MTB
  • Cassette
    14x34
  • Chain
    KMC HV500
  • Crankset
    32t, 140mm
  • Bottom Bracket
    semi-cartridge
  • Rims
    Giant Kids 24", alloy
  • Hubs
    nutted, 28h
  • Spokes
    stainless, 14g
  • Tires
    Giant Junior Sport, 24x2.1"
  • Weight
    11.94 kg (26 lb 6oz) - Size (OS)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
