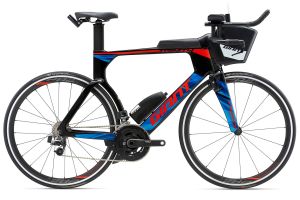

Trinity Advanced Pro 0

2018

$8,570

What is my size? | Why pick up in store?

Share

On All Bicycles

Within 14 Days

By a professional mechanic

FULL INTEGRATION, FLAT-OUT FAST. ENGINEERED FOR Pro-LEVEL TRIATHLETES, THIS AERO MACHINE IS IN A CLASS OF ITS OWN.

Engineered using Computational Fluid Dynamics and dynamic wind-tunnel testing, the Trinity Advanced Pro delivers supreme aerodynamic performance in a race-ready package. Handcrafted from premium Advanced-grade composite, and meticulously formed with Giant’s AeroSystem Shaping Technology, it slices through the wind better than any bike in its class. Made for real-world triathlon performance, it offers a comfortable fit for long distance training and racing. And its unique AeroVault system includes an integrated front hydration unit, top tube storage box and downtube water bottle that, together, actually improve the bike’s aero performance on the road.

  • High-performance Advanced-grade composite frame with Trinity composite seatpost
  • AeroDrive Tri Advanced-grade composite fork with alloy steerer
  • Giant PA-2 Aero wheelset with Giant Gavia AC 1 tubeless tires
  • SRAM RED eTap 11-speed electronic componentry with SRAM Blip remote shifters
  • Giant SpeedControl SL brakes w/ Ti hardware
Specs
  • Sizes
    XS, S ,M, L
  • Colors
    Carbon Smoke/Neon Red/Blue
  • Frame
    Advanced-grade composite
  • Fork
    Advanced-Grade composite, alloy steerer
  • Shock
    N/A
  • Handlebar
    Giant Trinity composite base bar with composite extensionsW/SKI bend)
  • Stem
    Giant Trinity
  • Seatpost
    Trinity composite
  • Saddle
    ISM PS1.0
  • Pedals
    N/A
  • Shifters
    SRAM RED E-Tap w/ Blips
  • Front Derailleur
    SRAM RED E-Tap
  • Rear Derailleur
    SRAM RED E-Tap
  • Brakes
    Giant SpeedControl SL
  • Brake Levers
    SRAM RED E-Tap
  • Cassette
    SRAM RED 11x28, 11-Speed
  • Chain
    SRAM Red
  • Crankset
    SRAM Red, 36/52 w/Power Meter
  • Bottom Bracket
    SRAM GXP
  • Rims
    Giant PA-2, Aero, Tubeless
  • Hubs
    Giant Performance Tracker Road, Sealed bearing, [F] 16h [R] 24h
  • Spokes
    Dynamic Balanced Lacing, Sapim Race, 14/15g
  • Tires
    Giant Gavia Race 1 Tubeless, 700x25, Folding
  • Extras
    AeroVault System: Integrated front hydration (XS~S: 750ml/M~L: 1200ml) / toptube storage (290ml) /downtube water bottle (440ml), integrated rear brake fairing
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.

Integrated Aero. Ready to Race.

Engineered using Computational Fluid Dynamics and dynamic wind-tunnel testing, the Trinity Advanced Pro delivers supreme aerodynamic performance in a race-ready package. Handcrafted from premium Advanced-grade composite, and meticulously formed with Giant’s AeroSystem Shaping Technology, it slices through the wind better than any bike in its class. Made for real-world triathlon performance, it offers a comfortable fit for long distance training and racing. And its unique AeroVault system includes an integrated front hydration unit, top tube storage box and downtube water bottle that, together, actually improve the bike’s aero performance on the road.

2018 Trinity Advanced Pro with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      162 cm5’4”  to 172 cm5’8”
  • S
      173 cm5’8”  to 177 cm5’10”
  • M
      177 cm5’10”  to 185 cm6’1”
  • L
      185 cm6’1”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSML
ASeat Tube Length (mm) (inch)46018.149019.351520.354521.5
BSeat Tube Angle (degrees)77.0°77.0°77.0°77.0°
CTop Tube Length (mm) (inch)5092052820.854121.355421.8
DHead Tube Length (mm) (inch)803.11104.31405.51706.7
EHead Tube Angle (degrees)73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)401.6401.6401.6401.6
GTrail (mm) (inch)612.4612.4612.4612.4
HWheelbase (mm) (inch)96738.198838.9100339.5101840.1
IChain Stay Length (mm) (inch)40515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)652.6652.6652.6652.6
KStack (mm) (inch)4821951020.153921.256822.4
LReach (mm) (inch)39815.741016.141716.442316.7
MStand Over Height (mm) (inch)74229.276730.279031.183632.9
NHandlebar Width (mm) (inch)40015.740015.740015.740015.7
OStem Length (mm) (inch)803.1903.5903.51003.9
PCrank Length (mm) (inch)1656.51706.7172.56.81756.9
QWheel Size 700C700C700C700C
RArm Pad Stack 550~600mm580~630mm610~660mm640~690mm
SArm Pad Reach 443~503mm455~515mm462~532mm468~538mm
