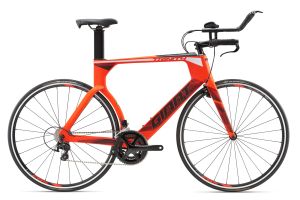

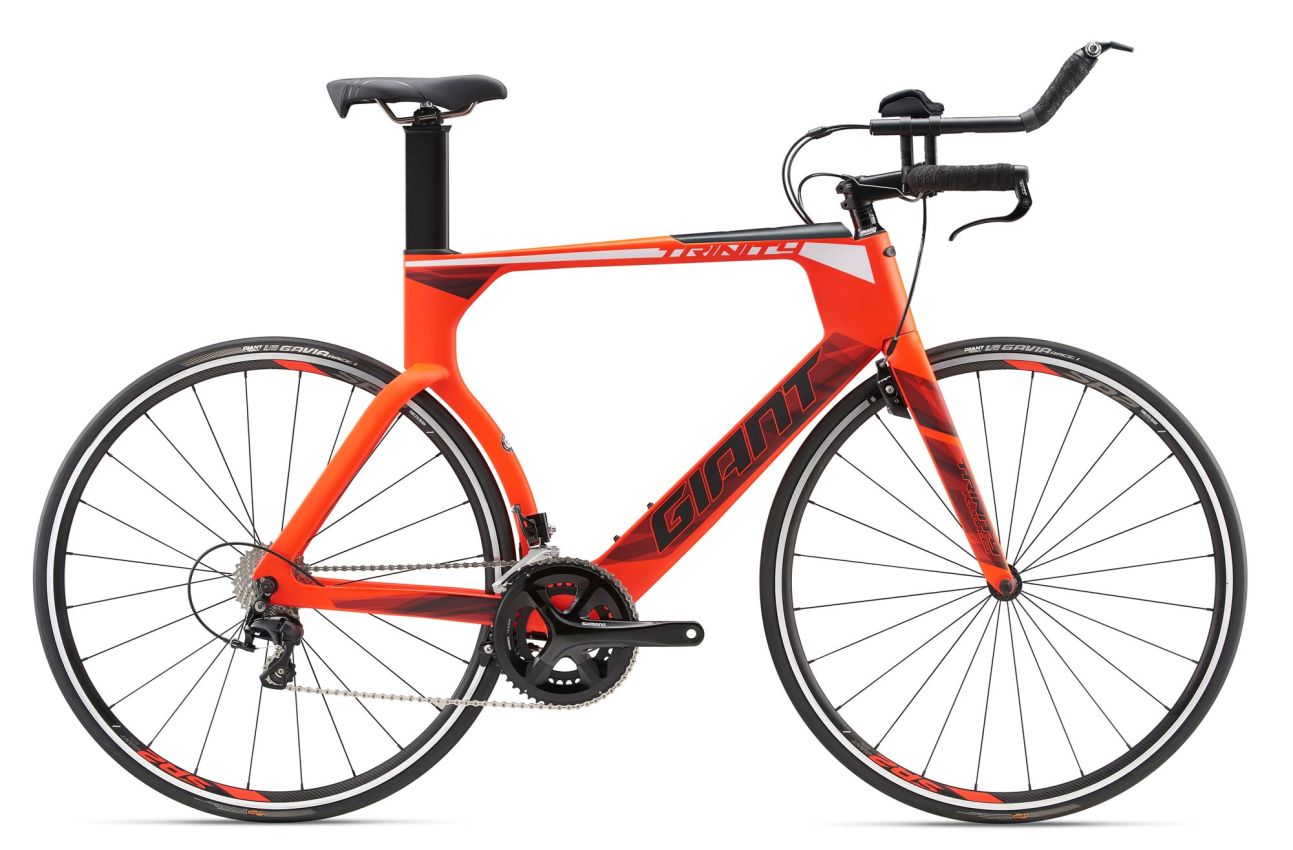

Trinity Advanced

2018

$2,040

By a professional mechanic

Original Owners

Within 14 Days

FROM SPRINTS TO IRONMAN, HERE’S YOUR AERO ADVANTAGE. INTEGRATED WITH EVERYTHING YOU NEED TO SCORE A NEW PR.

Built with Advanced-grade composite material that’s engineered with AeroSystem Shaping Technology, this frameset improves aerodynamics in real-world triathlon conditions. Its AeroSystem Shaping means that every tube shape is designed to minimize drag no matter which direction the wind is blowing. The Contact base bar offers maximum adjustability so you can dial in your perfect position for comfort and performance. And the SpeedControl brakes offer confident control without sacrificing aerodynamics.

  • High-performance Advanced-grade composite frame with Trinity composite seatpost
  • Advanced-grade composite fork with alloy steerer
  • Giant SR-2 wheelset with Giant Gavia AC 1 tubeless tires
  • Shimano 105 11-speed mechanical componentry with Shimano BSR1 bar-end shifters
  • Giant SpeedControl brakes

Techs & Features

Advanced Composite Technology
AeroSystem Shaping Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      162 cm5’4”  to 172 cm5’8”
  • S
      173 cm5’8”  to 177 cm5’10”
  • M
      177 cm5’10”  to 185 cm6’1”
  • L
      185 cm6’1”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSML
A Seat Tube Length (mm) (inch)46018.149019.351520.354521.5
B Seat Tube Angle (degrees)77.0°77.0°77.0°77.0°
C Top Tube Length (mm) (inch)5092052820.854121.355421.8
D Head Tube Length (mm) (inch)803.11104.31405.51706.7
E Head Tube Angle (degrees)73.0°73.0°73.0°73.0°
F Fork Rake (mm) (inch)401.6401.6401.6401.6
G Trail (mm) (inch)612.4612.4612.4612.4
H Wheelbase (mm) (inch)96738.198838.9100339.5101840.1
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)652.6652.6652.6652.6
K Stack (mm) (inch)4821951020.153921.256822.4
L Reach (mm) (inch)39815.741016.141716.442316.7
M Stand Over Height (mm) (inch)74229.276730.279031.183632.9
N Handlebar Width (mm) (inch)40015.740015.740015.740015.7
O Stem Length (mm) (inch)803.1903.5903.51003.9
P Crank Length (mm) (inch)1656.51706.7172.56.81756.9
Q Wheel Size 700C700C700C700C
R Arm Pad Stack 550~600mm580~630mm610~660mm640~690mm
S Arm Pad Reach 443~503mm455~515mm462~532mm468~538mm
Specs
  • Sizes
    XS, S ,M, L
  • Colors
    Matte Neon Red/Black/White
  • Frame
    Advanced-grade composite
  • Fork
    Advanced-Grade composite, alloy steerer
  • Shock
    N/A
  • Handlebar
    Giant Contact base bar with extensionsAl Extension
  • Stem
    Giant Connect
  • Seatpost
    Trinity composite
  • Saddle
    ISM PS1.0, Steel Rail
  • Pedals
    N/A
  • Shifters
    Shimano BSR1 Bar End Shifters
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105
  • Brakes
    Giant SpeedControl
  • Brake Levers
    Tektro RX 4.1
  • Cassette
    Shimano 105 11x28 , 11-Speed
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano RS510, 34/50
  • Bottom Bracket
    Shimano, Pressfit
  • Rims
    Giant SR-2, Tubeless
  • Hubs
    Giant Sport Tracker Road, 24h
  • Spokes
    Sapim Leader, 14g
  • Tires
    Giant Gavia Race 1 Tubeless, 700x25, Folding
  • Extras
    Saddle waterbottle cage adaptor
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
