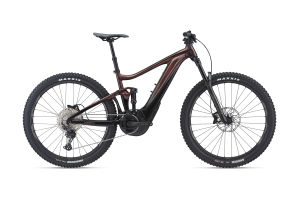

Trance X E+ Pro 29 3

2021

$5,000 *

MSRP excluding sales tax, shipping & handling, and dealer-installed options. Dealer prices and fees may vary.

{{partnumber.supplementaryGroup.introText}} {{partnumber.supplementaryGroup.urlLabel}}

{{partnumbersByColor()[0].description}}{{partnumbersByColor()[0].globalFrameSize}}

{{partnumbersByColor()[0].priceToFormat}}

{{partnumbersByColor()[0].stock.Label}}

Pick-up at any Giant retailer in about 7 business days.

Expected in our warehouse around {{partnumber.stock.DateExpectedToFormat}} and shipped to any Giant retailer in about 1 week{{partnumber.stock.DateExpectedToWeeks}}-{{partnumber.stock.DateExpectedToWeeks + 1}} weeks

The product you have selected is currently out of stock in our warehouse but there may be a store in your area that has the product in stock. Please contact your local store for availability.

In store now and available for pick up in 1 - 4 business days at these Giant retailers (distance from {{ dealercity }}): This bicycle is not permitted to be shipped directly to you, however it can be purchased online and picked up at a local Retailer. Want to pick up the bike in 1-4 business days?
We know these retailers near {{ dealercity }} have it in store now: This bicycle is not permitted to be shipped directly to you, however it can be purchased online and picked up at a local Retailer.

  • {{ item.Name | limitTo : 22 }}{{item.Name.length > 22 ? '..' : ''}}

    {{item.Name}}

    {{ item.DistanceToFormat }} Miles | {{ item.City }} {{ item.State }}
    Show details Hide details

    {{item.Street}}
    {{item.Zipcode}} {{item.City}}
    Phone: {{item.Phone}}
    {{ item.Email }}
  • No stores found
Show more stores Find more stores

Notify me when available at any Giant retailer

If you are willing to take a road trip, the bike is available in 1-4 days at these Giant retailers more than 200 miles from {{ dealercity }}. This bicycle is not permitted to be shipped directly to you, however it can be purchased online and picked up at a local Retailer.

Why pick up in store?

COMPARE

Share

Free Home Delivery

On All Bicycles

Free Returns

Within 14 Days

Assembly Included

By a professional mechanic

Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the freedom to extend your trail-riding adventures with this powerful, smooth-riding 29er.

The SyncDrive Pro motor gives the new Trance X E+ Pro 29 a massive 80Nm of torque and 360 percent tunable support, all controlled by the new Giant E-bike App. This gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedaling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm up front, and progressive frame geometry that’s designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails. The EnergyPak 625 battery is cleanly integrated into the downtube of the lightweight ALUXX SL frame.

Key Performance Factors

SMOOTH, POWERFUL SUPPORT

SyncDrive Pro motor delivers 80Nm of torque and tunable support ratios up to 360 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

29ER CONFIDENCE AND CONTROL

Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adjustable Frame Geometry

Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.8/76.0 head/seattube angle and 30mm BB drop) for faster, open terrain or high (66.5/76.7 head/seattube angle and 20mm drop) for slower, tighter singletrack.

Specs
MotorGiant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph.
DisplayGiant RideControl Ergo
BatteryGiant EnergyPak Smart 625, 36V Integrated Lithium-Ion
SizesS, M, L, XL
ColorsChameleon Mars/Black
FrameALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, 'Boost' 148x12QR, ISS, Giant EnergyPak Plus Range Extender Compatible
ForkRockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
ShockFox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
HandlebarGiant Contact 35 Trail, 35x780mm
StemGiant Contact SL 35
SeatpostGiant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
SaddleGiant Romero Trail
PedalsN/A
ShiftersShimano Deore 12-speed I-spec EV
Front DerailleurMRP 1X custom "V3" co-molded TR chain guide
Rear DerailleurShimano Deore 12-speed
BrakesShimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake LeversShimano Deore BL-M4100 I-spec EV
CassetteShimano CS-M6100-12, 10-51T, 12-speed
ChainKMC e.12 Turbo, EcoProteq, e-bike optimized
CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
Bottom BracketN/A
RimsGiant AM 29", Tubeless ready, 30mm inner width
HubsShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
SpokesSapim E-Lite [R] Race [F]
TiresMaxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R]
ExtrasGiant EnergyPak Smart 6A charger Tubeless kit (liquid, valves, levers, manual, tool)Inner tube suppliedGiant EnergyPak Plus range extender compatible
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications and prices listed are subject to change without notice.

Highlights

The new Trance X E+ Pro 29 gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedaling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm up front, and progressive frame geometry that’s designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails.

1 2 3 4 5 6 7 8 9 10 Highlights

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram
  SMLXL
  LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
Seat Tube Length (mm) (inch)40015.742516.745017.747518.7
Seat Tube Angle (degrees)76.0° | 76.7°76.0° | 76.7°76.0° | 76.7°76.0° | 76.7°
Top Tube Length (mm) (inch)57522.6 | 57522.660523.8 | 60523.863525 | 6352566526.2 | 66526.2
Head Tube Length (mm) (inch)953.71003.91104.31204.7
Head Tube Angle (degrees)65.8° | 66.5°65.8° | 66.5°65.8° | 66.5°65.8° | 66.5°
Fork Rake (mm) (inch)441.7441.7441.7441.7
Trail (mm) (inch)123.44.8 | 118.14.6123.44.8 | 118.14.6123.44.8 | 118.14.6123.44.8 | 118.14.6
Wheelbase (mm) (inch)120247.3 | 120547.4123348.5 | 123648.7126549.8 | 126849.9129751.1 | 129951.1
Chain Stay Length (mm) (inch)47218.6 | 47218.647218.6 | 47218.647218.6 | 47218.647218.6 | 47218.6
Bottom Bracket Drop (mm) (inch)301.2 | 200.8301.2 | 200.8301.2 | 200.8301.2 | 200.8
Stack (mm) (inch)60823.9 | 60223.761324.1 | 60723.962224.5 | 61624.363124.8 | 62524.6
Reach (mm) (inch)42316.7 | 4331745217.8 | 46218.248018.9 | 48919.350820 | 51720.4
Stand Over Height (mm) (inch)74429.3 | 75329.674529.3 | 75429.775029.5 | 75929.976029.9 | 77030.3
Handlebar Width (mm) (inch)78030.778030.778030.778030.7
Stem Length (mm) (inch)401.6401.6401.6401.6
Crank Length (mm) (inch)1606.31606.31656.51656.5
Wheel Size 29"29"29"29"

Technologies & Features

SyncDrive Pro
Hybrid Cycling Technology
Smart Assist
RideControl ONE
Maestro Suspension Technology
ALUXX SL Aluminum Technology
Energypak
RideControl Ergo
