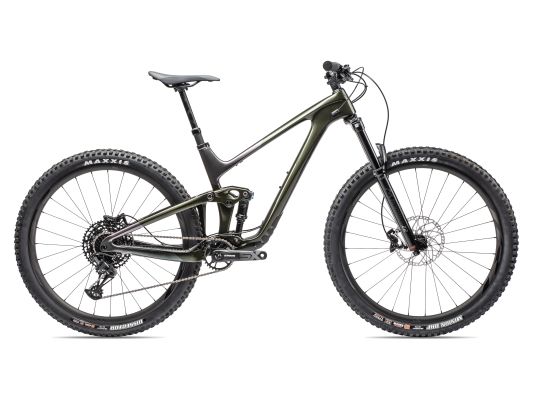

Trance X Advanced Pro 29 3

$3,000

Similar Products

Best For: Trail

Trance X Advanced Pro 29 1

$4,500

From fast, rowdy descents to technical terrain, this progressive trail bike gives you active suspension, adjustable frame geometry, and everything you need to up your singletrack game.

Key Performance Factors

29er confidence and control

29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tires.

Progressive suspension

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable geometry

A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.

Highlights

This full-composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. A flip chip lets you choose either low or high frame geometry settings, which adjusts the headtube and seattube angle, along with the bottom bracket drop, to fine tune handling for your riding style and terrain.

Trance X Advanced Pro 29 with interactive tooltips

Techs & Features

Advanced Composite Technology
Advanced Forged Composite Technology
Maestro Suspension Technology
OverDrive
Tubeless System
Flip Chip - Maestro

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 196 cm6’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
  LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
ASeat Tube Length (mm) (inch)43016.943016.946518.349619.5
BSeat Tube Angle (degrees)77.2° | 77.9°77.2° | 77.9°77.2° | 77.9°77.2° | 77.9°
CTop Tube Length (mm) (inch)56622.3 | 56422.259723.5 | 59523.462924.8 | 62724.765625.8 | 65425.7
DHead Tube Length (mm) (inch)953.71003.91104.31204.7
EHead Tube Angle (degrees)65.5° | 66.2°65.5° | 66.2°65.5° | 66.2°65.5° | 66.2°
FFork Rake (mm) (inch)441.7441.7441.7441.7
GTrail (mm) (inch)125.14.9 | 119.54.7125.14.9 | 119.54.7125.14.9 | 119.74.7125.14.9 | 119.54.7
HWheelbase (mm) (inch)117346.2120547.4123948.8126849.9
IChain Stay Length (mm) (inch)43817.243817.243817.243817.2
JBottom Bracket Drop (mm) (inch)401.6401.6401.6401.6
KStack (mm) (inch)61724.362124.463124.864025.2
LReach (mm) (inch)42616.84561848619.151020.1
MStand Over Height (mm) (inch)72928.772928.775229.676029.9
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)401.6401.6502502
PCrank Length (mm) (inch)1656.51706.71706.71706.7
QWheel Size 29"29"29"29"
Specs
  • Sizes
    S, M, L, XL
  • Colors
    Phantom Green / Dark Iridescent / Chrome
  • Frame
    Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle
  • Fork
    Marzocchi Z2, 150mm, Rail damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
  • Shock
    Fox Float DPS Performance, 185/55, custom tuned for Giant
  • Handlebar
    Giant Contact TR35, 780x35mm, 20mm rise
  • Grips
    Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Seatpost
    Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
  • Saddle
    Giant Romero SL
  • Pedals
    N/A
  • Shifters
    SRAM SX Eagle, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM SX Eagle
  • Brakes
    Tektro HD M745
  • Brake Levers
    Tektro HD M745
  • Cassette
    SRAM SX, 11x50
  • Chain
    SRAM SX Eagle
  • Crankset
    SRAM SX, 30t S:165mm, M:170mm, L:170mm, XL:170mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant TR 1 29 WheelSystem
  • Hubs
    Giant TR 1 29 WheelSystem
  • Spokes
    Giant TR 1 29 WheelSystem
  • Tires
    [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
  • Extras
    tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector
  • Weight
    13.94 kg (30 lb 10oz) - Size (XL)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
