Trance E+
SX 0 Pro

2019

$7,035

What is my size?

Why pick up in store?

Share

On All Bicycles

Within 14 Days

By a professional mechanic

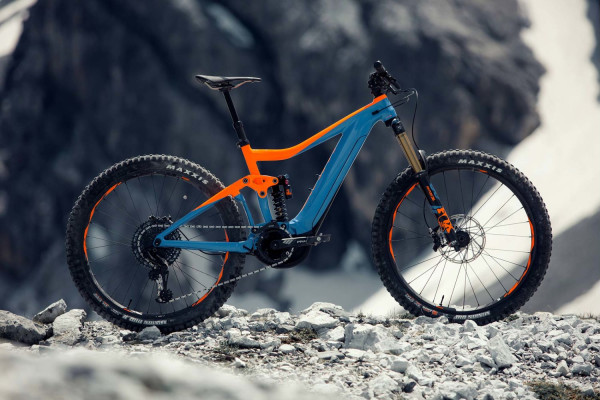

With a high-performance frame and tunable power, this premium full-suspension trail bike gives you the power, confidence and control to take your off-road adventures to a new level.

This premium level full-suspension bike is made for trail and enduro riding. The Trance E+ SX Pro features 140mm of Maestro rear suspension technology,160mm travel in the front, and Giant’s SyncDrive Pro motor technology, delivering 360 percent support. The lightweight yet strong ALUXX aluminum frame is seamlessly integrated with the updated 500Wh downtube EnergyPak. The RideControl ONE features user-friendly buttons that are easy to use and out of the way.

Key Performance Factors

High performance

Proven Maestro suspension and tunable SyncDrive Pro motor technology offer a high-performance trail riding experience.

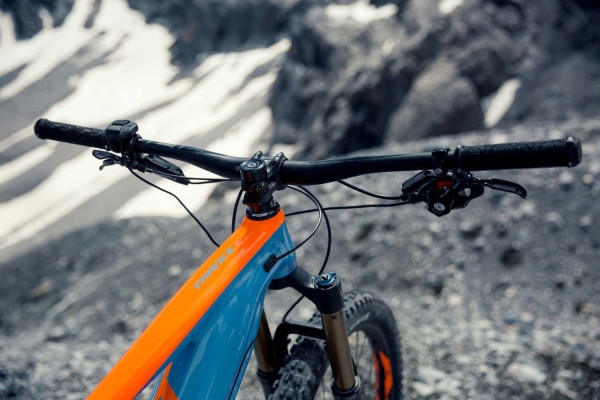

RideControl One

Handlebar-integrated control unit for a clean and high end design.

Integrated

Downtube integrated EnergyPak with 500Wh of capacity features a clean, out of the way design.

Highlights

This premium level full-suspension bike is made for trail and enduro riding. The Trance E+ SX Pro features 140mm of Maestro rear suspension technology,160mm travel in the front, and Giant’s SyncDrive Pro motor technology, delivering 360 percent support. The lightweight yet strong ALUXX aluminum frame is seamlessly integrated with the updated 500Wh downtube EnergyPak. RideControl ONE features user-friendly buttons that are easy to use and out of the way.

2019 Trance E+ SX Pro with interactive tooltips

Techs & Features

ALUXX SL Aluminum Technology
Maestro Suspension Technology
Hybrid Cycling Technology
SyncDrive Pro
RideControl ONE

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1”  to 166 cm5’5”
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMLXL
ASeat Tube Length (mm) (inch)380154061644517.54821950720
BSeat Tube Angle (degrees)73.5°73.5°73.5°73.5°73.5°
CTop Tube Length (mm) (inch)57022.4585236102463024.865525.8
DHead Tube Length (mm) (inch)953.7953.71003.91104.31305.1
EHead Tube Angle (degrees)66.0°66.0°66.0°66.0°66.0°
FFork Rake (mm) (inch)441.7441.7441.7441.7441.7
GTrail (mm) (inch)1134.41134.41134.41134.41134.4
HWheelbase (mm) (inch)117746.3118546.7121147.7123348.5126049.6
IChain Stay Length (mm) (inch)469.518.5469.518.5469.518.5469.518.5469.518.5
JBottom Bracket Drop (mm) (inch)110.4110.4110.4110.4110.4
KStack (mm) (inch)58222.958623.159023.259923.661824.3
LReach (mm) (inch)40315.941116.243517.145217.847218.6
MStand Over Height (mm) (inch)73128.874329.374429.377430.579631.3
NHandlebar Width (mm) (inch)80031.580031.580031.580031.580031.5
OStem Length (mm) (inch)401.6401.6401.6502502
PCrank Length (mm) (inch)1656.51656.51706.71706.71706.7
QWheel Size 27.527.527.527.527.5
Specs
  • Motor
    Giant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph.
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display
    Giant RideControl One
  • Battery
    Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
  • Sizes
    XS, S, M, L, XL
  • Colors
    Neon Orange / Metallic Blue
  • Frame
    ALUXX SL-grade aluminum, 140mm Maestro suspension system, 'Boost' 148x12QR

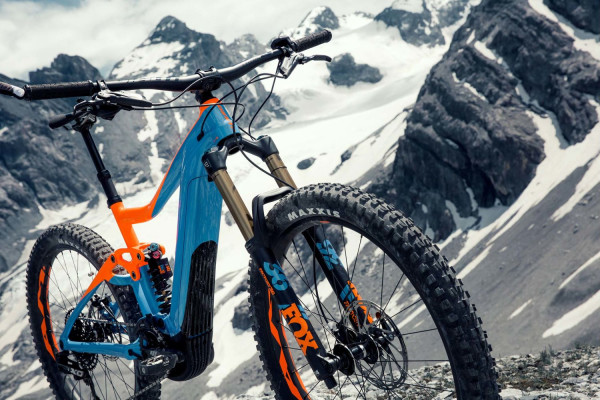

  • Fork
    Fox 36 Factory 27,5+ 160mm, EVOL, Fit4 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized
  • Shock
    Fox Factory DHX2 Coil, 2-position lever, 185x52.5mm Trunnion mount
  • Handlebar
    Giant Contact SL 35 Trail, 35x800mm
  • Stem
    Giant Contact SL 35
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm, under bar remote lever
  • Saddle
    Giant Contact SL, Neutral
  • Shifters
    SRAM XO1 Eagle
  • Front Derailleur
    MRP 1X V3 custom full-size HD upper
  • Rear Derailleur
    SRAM XO1 Eagle
  • Brakes
    SRAM Code R, hydraulic disc, 200mm
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM PG-1230, 11-50T, 12-Speed
  • Chain
    SRAM GX Eagle PowerLock, 12-Speed
  • Crankset
    SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Cadet+ custom forged crankarm set
  • Rims
    Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
  • Hubs
    Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
  • Spokes
    Sapim E-Lite [r] Race [f], e-bike optimized
  • Tires
    Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO protect, Dual Compound[F], Maxxis Minion DHR II 27.5x2.6" foldable, Tubeless, EXO, Dual Compound [R]
  • Extras
    Giant EnergyPak 6A Smart charger (60% charge in 60minutes)Tubeless kit
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
