TCX Espoir 26

2020

$730

What is my size? | Why pick up in store?

**Please note we are experiencing a delay with shipping times. Orders may take 4-7 additional business days to be processed and shipped.

Share

On All Bicycles

Within 14 Days

By a professional mechanic

This speedy youth bike can be ridden in a variety of ways. It’s designed to help young riders feel confident while riding with drop bars, and is versatile enough for road, dirt, or even a first cyclocross race.

Built around a lightweight ALUXX aluminum frame with youth-specific compact geometry, the TCX Espoir 26 has a low stand-over height that gives smaller riders the confidence and control to go fast and have fun. Its 26-inch wheels, short-reach handlebars and powerful disc brakes give it a confident ride. Perfect for family day at the cyclocross races or backroad adventures, it can tackle road, dirt and everything in between.

Key Performance Factors

Lightweight

High-quality ALUXX aluminum frame delivers a responsive ride quality that makes it easier for young riders to climb, accelerate and corner.

Youth-specific design

Low standover height, short-reach handlebars, and comfortable saddle for young riders.

Geared for hills

Special drivetrain with a wide range of gears makes it easier for young riders to tackle challenging terrain.

Specs
  • Sizes
    one size
  • Colors
    Charcoal / Pure Red
  • Frame
    ALUXX-Grade Aluminum, disc
  • Fork
    alloy, disc
  • Shock
    N/A
  • Handlebar
    Giant Youth, 380mm width
  • Stem
    Giant Sport, 70mm
  • Seatpost
    Giant Sport, 27.250
  • Saddle
    Giant Youth
  • Pedals
    N/A
  • Shifters
    microSHIFT SB-R582
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Claris
  • Brakes
    mechanical disc
  • Brake Levers
    microSHIFT SB-R582 short reach brake lever and top lever
  • Cassette
    Shimano HG41, 11x32
  • Chain
    KMC Z81
  • Crankset
    alloy, three-piece, 36t, 152mm
  • Bottom Bracket
    sealed cartridge
  • Rims
    Giant alloy, double wall
  • Hubs
    alloy, F/R 24/28h QR
  • Spokes
    stainless, 14g
  • Tires
    Kenda K1153, 26x1.35
  • Extras
    rear derailleur protector
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications and prices listed are subject to change without notice.

Highlights

Built around a lightweight ALUXX aluminum frame with youth-specific compact geometry, the TCX Espoir 26 has a low stand-over height that gives smaller riders the confidence and control to go fast and have fun. Its 26-inch wheels, short-reach handlebars and powerful disc brakes give it a confident ride. Perfect for family day at the cyclocross races or backroad adventures, it can tackle road, dirt and everything in between.

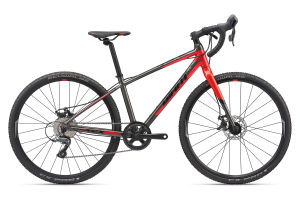

2020 TCX Espoir 26 with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One size
      145 cm4’9”  to 165 cm5’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One size
ASeat Tube Length (mm) (inch)35013.8
BSeat Tube Angle (degrees)73.0°
CTop Tube Length (mm) (inch)48018.9
DHead Tube Length (mm) (inch)1254.9
EHead Tube Angle (degrees)71.0°
HWheelbase (mm) (inch)92636.5
IChain Stay Length (mm) (inch)41016.1
JBottom Bracket Drop (mm) (inch)401.6
MStand Over Height (mm) (inch)64325.3
NHandlebar Width (mm) (inch)38015
OStem Length (mm) (inch)702.8
PCrank Length (mm) (inch)1526
QWheel Size 26"

Techs & Features

ALUXX Aluminum Technology
