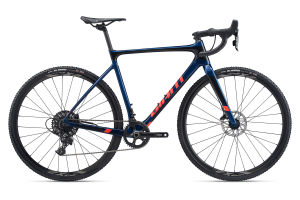

TCX Advanced

2020

$2,550

By a professional mechanic

Original Owners

Within 14 Days

Blast through the sandpit, carve through corners, and lay down the power on the final finishing stretch. This sharp-handling cyclocross machine is made for podium pursuits during ’cross season and mixed road and dirt rides all year long.

Engineered for the beautiful chaos of cyclocross racing, this composite flyer helps you keep your cool when conditions get wild. Its Advanced-grade composite frame makes it easier to power up steep climbs, shoulder the bike for barriers and run-ups, and rail descents in sand, mud or ice. It has the perfect balance of stiffness and compliance, and the D-Fuse composite seatpost helps absorb shocks and vibrations—so you can float through ruts and washboard bumps, and stay fresh for the final lap. Integrated disc brakes with flat mounts and thru-axles help boost control, and its Tubeless Ready Giant WheelSystem makes it easy to enjoy the advantages of tubeless tires including a smoother ride quality, less rolling resistance and a reduced risk of flats.

Key Performance Factors

Light and agile

Advanced-grade composite frame offers a perfect balance of light weight for climbing and accelerating, plus stiffness for precise handling on rough cyclocross terrain.

Total control

Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.

Smooth ride quality

D-shaped composite seatpost reduces shocks and vibrations, minimizing fatigue so you can stay strong to the finish.

Techs & Features

Advanced Composite Technology
OverDrive
D-Fuse Technology
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      182 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMMLLXL
A Seat Tube Length (mm) (inch)50019.752520.754521.555521.956522.2
B Seat Tube Angle (degrees)73.5°73.0°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)53020.954521.55602257522.659023.2
D Head Tube Length (mm) (inch)1305.11455.71606.31756.91907.5
E Head Tube Angle (degrees)71.0°71.5°72.0°72.5°72.5°
F Fork Rake (mm) (inch)502502502502502
G Trail (mm) (inch)682.7652.6622.4592.3592.3
H Wheelbase (mm) (inch)101439.9101940.1103040.6104040.9105541.5
I Chain Stay Length (mm) (inch)43016.943016.943016.943016.943016.9
J Bottom Bracket Drop (mm) (inch)602.4602.4602.4602.4602.4
K Stack (mm) (inch)54021.355621.957222.558923.260323.7
L Reach (mm) (inch)37014.637514.838515.239515.640616
M Stand Over Height (mm) (inch)78330.880331.682132.383232.884333.2
N Handlebar Width (mm) (inch)40015.742016.542016.544017.344017.3
O Stem Length (mm) (inch)903.51104.31104.31104.31204.7
P Crank Length (mm) (inch)1706.7172.56.8172.56.81756.91756.9
Q Wheel Size 700C700C700C700C700C
Specs
  • Sizes
    S, M, ML, L, XL
  • Colors
    Metallic Navy, Black
  • Frame
    Advanced-Grade Composite, 12mm thru-axle, disc
  • Fork
    Advanced-Grade Composite, alloy OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Connect
  • Stem
    Giant Contact
  • Seatpost
    Giant D-Fuse, composite
  • Saddle
    Giant Contact (neutral)
  • Pedals
    N/A
  • Shifters
    SRAM Apex 1
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM Apex 1
  • Brakes
    SRAM Apex 1x hydraulic
  • Brake Levers
    SRAM Apex 1
  • Cassette
    SRAM PG1130, 11x42
  • Chain
    SRAM PC1110
  • Crankset
    SRAM S-350-1, 40t
  • Bottom Bracket
    SRAM GXP, press fit
  • Rims
    Giant P-X2 Disc wheelset
  • Hubs
    Giant P-X2 Disc wheelset
  • Spokes
    Giant P-X2 Disc wheelset
  • Tires
    Maxxis All-Terrene, 700x33, tubeless
  • Extras
    Giant 1x chainguide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
