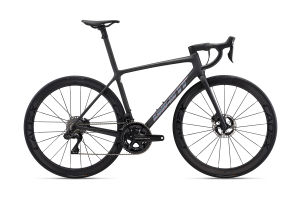

TCR Advanced SL Disc 0 Dura-Ace
2022
$12,200
MSRP excluding sales tax, shipping & handling, destination fees, e-bike battery recycling fees and dealer-installed options. Dealer prices and fees may vary.
Why pick up in store?
Giant believes the Giant/Liv/Momentum retailer is an essential part of the cycling foundation. Competent bicycle retailers make the difference in creating a cyclist for life. Our family of retailers is ready to communicate our mutual commitment to the cycling lifestyle and its lifelong health benefits. Our promise to you; we are committed to your riding experience, there is no better way to service, fit, or impact the cycling experience with such emotion and sustainability than through an energized Giant/Liv/Momentum retailer.
Thank you for supporting a local business. Let’s ride!
All the best,
John ‘JT’ Thompson
General Manager – Giant Bicycle USA
Complete Your Rider Experience
The latest generation of our flagship road racing series has been winning the biggest races in the world for more than three decades. It’s the ultimate all-rounder for the performance obsessed.
Key Performance Factors
Class-leading efficiency
With the highest pedaling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
Highlights
The latest TCR Advanced SL Disc builds on its proven climbing capabilities, boasting its highest stiffness-to-weight ratio ever, and adds aero shaping in key sections of the frameset for added all-rounder performance. Additional updates include added frame and fork clearance to fit high-volume tires up to 32mm, the latest integrated WheelSystem technology, and a new aero-engineered Contact SLR composite handlebar to make it even faster against the wind.
1
ADVANCED SL COMPOSITE
Professional-grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fiber Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
2
TRUNCATED ELLIPSE TUBING
Strategically engineered airfoil sections in the frame and fork, developed through CFD and wind-tunnel testing, improve aerodynamic efficiency, reducing wind drag at a wider range of yaw angles compared to traditional teardrop shaped tubes.
3
VARIANT INTEGRATED SEATPOST
Specifically engineered for competitive road racers, Variant’s refined shape and integrated design result in a ride quality that perfectly balances compliance and efficiency.
4
CUTTING-EDGE COMPOSITE ASSEMBLY
Up to 150 small individual composite swatches are placed using robotic layup assembly. The swatches are laser-cut so that smaller, ultra-precise sections can be used, resulting in lighter weight framesets. Carbon Nanotube Technology resin improves impact resistance, and Fusion Process creates lighter, stronger frame junctions.
5
FULL COMPOSITE FORK
Advanced SL-grade composite fork features a symmetric design and aero shaping, along with disc-brake integration and increased clearance for tires up to 32mm. This new design makes it lighter, stiffer and more aerodynamic.
6
CONTACT SLR HANDLEBAR
New Contact SLR handlebar features modified cable routing to provide a smart balance of aerodynamics, rider ergonomics and hassle-free setup and maintenance.
7
OVERDRIVE 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
8
MEGADRIVE
A massive rectangular downtube forms the link between the OverDrive 2 headtube area and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while optimizing aerodynamic flow over a standard water bottle.
9
POWERCORE
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter-wide bottom-bracket design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
10
GIANT TUBELESS SYSTEM
Engineered with proprietary Dynamic Balanced Lacing, a composite WheelSystem and tubeless tires for improved efficiency, comfort and control in the most user-friendly and reliable system.
11
DISC BRAKE INTEGRATION
The frame and fork are engineered with flat-mount disc-brake technology for powerful, consistent braking performance in all conditions.
Techs & Features
Advanced SL Composite Technology
Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.
OverDrive 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Compact Road Design
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Integrated Seatpost
Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 40 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
RideSense Ready
This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 68026.8 | 71028 | 74029.1 | 77030.3 | 80031.5 | 83032.7 |
| B Seat Tube Angle (degrees) | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C Top Tube Length (mm) (inch) | 52020.5 | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 60023.6 |
| D Head Tube Length (mm) (inch) | 1204.7 | 1305.1 | 1455.7 | 1656.5 | 1857.3 | 2007.9 |
| E Head Tube Angle (degrees) | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| G Trail (mm) (inch) | 72.12.8 | 642.5 | 59.22.3 | 59.22.3 | 59.22.3 | 59.22.3 |
| H Wheelbase (mm) (inch) | 97638.4 | 97738.5 | 98038.6 | 99139 | 100639.6 | 102040.2 |
| I Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| J Bottom Bracket Drop (mm) (inch) | 722.8 | 702.8 | 702.8 | 672.6 | 672.6 | 672.6 |
| K Stack (mm) (inch) | 51720.4 | 52820.8 | 54521.5 | 56222.1 | 58122.9 | 59623.5 |
| L Reach (mm) (inch) | 37614.8 | 38315.1 | 38815.3 | 39315.5 | 40215.8 | 41216.2 |
| M Stand Over Height (mm) (inch) | 70627.8 | 72528.5 | 74729.4 | 77330.4 | 80031.5 | 81632.1 |
| N Handlebar Width (mm) (inch) | 40015.7 | 40015.7 | 42016.5 | 42016.5 | 44017.3 | 44017.3 |
| O Stem Length (mm) (inch) | 803.1 | 903.5 | 1003.9 | 1104.3 | 1104.3 | 1204.7 |
| P Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
