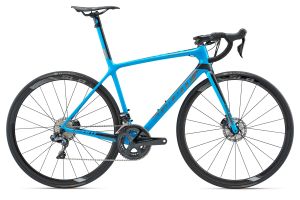

TCR Advanced SL 1 Disc

2018

$6,325

By a professional mechanic

Original Owners

Within 14 Days

PURE ROAD PERFORMANCE FOR EVERY MOVE YOU MAKE. CLIMB, CORNER AND DESCEND WITH UNBEATABLE EFFICIENCY AND CONTROL.

Break away on the climb or on a fast, tricky descent. The TCR Advanced SL Disc is designed to excel in every aspect of racing, and engineered to the precise demands of top pro racers from Team Sunweb. From the superior stiffness-to-weight ratio of its Advanced SL composite frame to its integrated disc brakes including flat mounts and thru-axles—everything about this bike screams high performance. The Variant integrated seatpost balances efficiency and compliance. Proven Compact Road geometry, an OverDrive 2 steerer tube, and the massive MegaDrive downtube all work together to deliver legendary handling that’s synonymous with the TCR name.

  • Professional-grade Advanced SL composite frame with integrated Variant composite seatpost
  • Advanced SL-grade composite fork with full-composite OverDrive 2 steerer
  • Giant SLR 1 Composite WheelSystem with Giant Gavia Race 0 tubeless tires
  • Shimano Ultegra Di2 11-speed electronic componentry
  • Shimano Ultegra hydraulic disc brakes

Techs & Features

Advanced SL Composite Technology
Compact Road Design
OverDrive 2
RideSense

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 167 cm5’6”
  • S
      167 cm5’6”  to 173 cm5’8”
  • M
      173 cm5’8”  to 178 cm5’10”
  • M/L
      178 cm5’10”  to 183 cm6’0”
  • L
      183 cm6’0”  to 188 cm6’2”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMM/LL
A Seat Tube Length (mm) (inch)42516.744517.547018.550019.752520.7
B Seat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)51520.353521.155021.757022.458022.8
D Head Tube Length (mm) (inch)1234.81335.21485.81686.61887.4
E Head Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8
G Trail (mm) (inch)702.8602.4572.2572.2572.2
H Wheelbase (mm) (inch)97238.397038.297638.499739.3100739.6
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)702.8682.7682.7652.6652.6
K Stack (mm) (inch)51720.452920.854521.556222.158122.9
L Reach (mm) (inch)37214.637814.938315.139815.740215.8
M Stand Over Height (mm) (inch)72428.574229.276530.17873180531.7
N Handlebar Width (mm) (inch)40015.740015.742016.542016.544017.3
O Stem Length (mm) (inch)803.1903.51003.91104.31104.3
P Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.9
Q Wheel Size 700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L
  • Colors
    Blue/Black/Charcoal
  • Frame
    Advanced SL-grade composite, Integrated seatpost
  • Fork
    Advanced SL-grade composite, Full-composite OverDrive 2 steerer
  • Shock
    N/A
  • Handlebar
    Giant Contact SLR, 31.8mm
  • Stem
    Giant Contact SLR
  • Seatpost
    Advanced SL-grade composite, integrated design
  • Saddle
    Contact SLR Forward
  • Pedals
    N/A
  • Shifters
    Shimano Ultegra Di2 Hydraulic
  • Front Derailleur
    Shimano Ultegra Di2
  • Rear Derailleur
    Shimano Ultegra Di2
  • Brakes
    Shimano Ultegra Di2, hydraulic disc, 140mm
  • Brake Levers
    Shimano Ultegra Di2, hydraulic disc
  • Cassette
    Shimano Ultegra 11x28, 11-Speed
  • Chain
    KMC X11SL-1
  • Crankset
    Shimano Ultegra, 36/52
  • Bottom Bracket
    Shimano, Press Fit
  • Rims
    Giant SLR 1 DBL Disc WheelSystem; 30mm deep, 23mm wide, Tubeless, Full composite
  • Hubs
    Giant SLR 1 DBL Disc WheelSystem; Pawl driver, 12mm axles, [F] 16h [R] 21h
  • Spokes
    Giant SLR 1 DBL Disc WheelSystem; Dynamic Balanced Lacing, bladed stainless
  • Tires
    Giant Gavia 0 Tubeless, 700x25, Folding
  • Extras
    Ride Sense ANT+/Bluetooth
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
