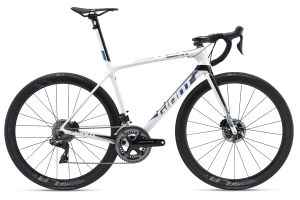

TCR Advanced SL 0 Disc Dura-Ace

2019

$10,500

Pure road performance for every move you make. Climb, corner and descend with unbeatable efficiency and control. Break away on the climb or on a fast, technical descent. The TCR Advanced SL Disc is designed to excel in every aspect of road racing.

From the superior stiffness-to-weight ratio of its Advanced SL composite frame to its integrated disc brakes including flat mounts and thru-axles—everything about this bike screams high performance. The Variant integrated seatpost balances efficiency and compliance. Proven Compact Road geometry, an OverDrive 2 steerer tube, and the massive MegaDrive downtube all work together to deliver legendary handling that’s synonymous with the TCR name.

Key Performance Factors

Pro-level race efficiency

With the highest pedaling stiffness-to-weight ratio of any bike in its class, this frameset is engineered to give Giant pro road racers superior climbing efficiency, sprint stiffness and all-rounder capabilities.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling.

Speed and compliance

Variant integrated seatpost design and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.

Techs & Features

Advanced SL Composite Technology
Compact Road Design
OverDrive 2
RideSense
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMMLL
ASeat Tube Length (mm) (inch)7102874029.177030.379031.1
BSeat Tube Angle (degrees)73.5°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)53521.155021.757022.458022.8
DHead Tube Length (mm) (inch)1335.21485.81686.61887.4
EHead Tube Angle (degrees)72.5°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8
GTrail (mm) (inch)602.4572.2572.2572.2
HWheelbase (mm) (inch)97038.297638.499739.3100739.6
IChain Stay Length (mm) (inch)40515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)67.52.667.52.6652.6652.6
KStack (mm) (inch)52920.854521.556222.158122.9
LReach (mm) (inch)37814.938315.139815.740215.8
MStand Over Height (mm) (inch)74229.276530.17873180531.7
NHandlebar Width (mm) (inch)40015.742016.542016.544017.3
OStem Length (mm) (inch)903.51003.91104.31104.3
PCrank Length (mm) (inch)1706.7172.56.8172.56.81756.9
QWheel Size 700c700c700c700c
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    White / Black / Iris
  • Frame
    Advanced SL-Grade Composite, integrated seatpost
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive 2 steerer
  • Shock
    N/A
  • Handlebar
    Giant Contact SLR
  • Stem
    Giant Contact SLR
  • Seatpost
    Advanced SL-Grade Composite, integrated Design
  • Saddle
    Giant Contact SLR (forward)
  • Pedals
    N/A
  • Shifters
    Shimano Dura-Ace Di2
  • Front Derailleur
    Shimano Dura-Ace Di2
  • Rear Derailleur
    Shimano Dura-Ace Di2
  • Brakes
    Shimano Dura-Ace, hydraulic
  • Brake Levers
    Shimano Di2, hydraulic
  • Cassette
    Shimano Dura-Ace, 11x28
  • Chain
    Shimano CN-HG901
  • Crankset
    Shimano Dura-Ace with power meter, 36/52
  • Bottom Bracket
    Shimano Press Fit
  • Rims
    Giant SLR 0 Disc WheelSystem (F:42mm, R:42mm)
  • Hubs
    Giant SLR 0 Disc WheelSystem, 12mm thru-axle, Center Lock
  • Spokes
    Giant SLR 0 Disc WheelSystem
  • Tires
    Giant Gavia AC 0 tubeless, 700x25, folding
  • Extras
    RideSense Bluetooth
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
