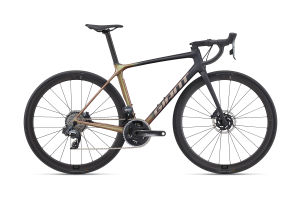

TCR Advanced Pro Disc 0 AR

2023

$6,700

Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions, this lightweight composite road racer takes you to the next level.

Key Performance Factors

Class-leading efficiency

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

Techs & Features

Advanced Composite Technology
OverDrive 2
Compact Road Design
Tubeless System
Power Halo

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMMLLXL
A Seat Tube Length (mm) (inch)42516.744517.547018.550019.753020.956022
B Seat Tube Angle (degrees)74.5°74.0°73.5°73.0°73.0°72.5°
C Top Tube Length (mm) (inch)52020.553521.155021.756522.258022.860023.6
D Head Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
E Head Tube Angle (degrees)71.0°72.3°73.0°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
G Trail (mm) (inch)72.12.8642.559.22.359.22.359.22.359.22.3
H Wheelbase (mm) (inch)97638.497738.598038.699139100639.6102040.2
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)722.8702.8702.8672.6672.6672.6
K Stack (mm) (inch)51720.452820.854521.556222.158122.959623.5
L Reach (mm) (inch)37614.838315.138815.339315.540215.841216.2
M Stand Over Height (mm) (inch)70627.872528.574729.477330.480031.581632.1
N Handlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
O Stem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
P Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
Q Wheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Matte Carbon/Gloss Messier
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Giant Fleet SL
  • Pedals
    N/A
  • Shifters
    SRAM Force eTap AXS with Blips
  • Front Derailleur
    SRAM Force eTap AXS
  • Rear Derailleur
    SRAM Force eTap AXS
  • Brakes
    SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Force eTap AXS hydraulic
  • Cassette
    SRAM Force, 12-speed, 10x36
  • Chain
    SRAM Force D1
  • Crankset
    SRAM Force D1 DUB, 33/46with Power Halo power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
  • Hubs
    [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    Sapim CX-Ray
  • Tires
    CADEX Classic, tubeless, 700x28c (32mm), folding
  • Extras
    computer mount, tubeless prepared, 32mm max tire size
  • Weight
    7.42kg (16lbs 06oz) Size - (M)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
