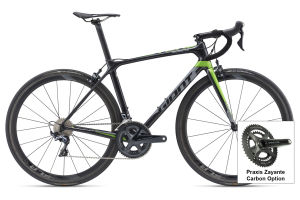

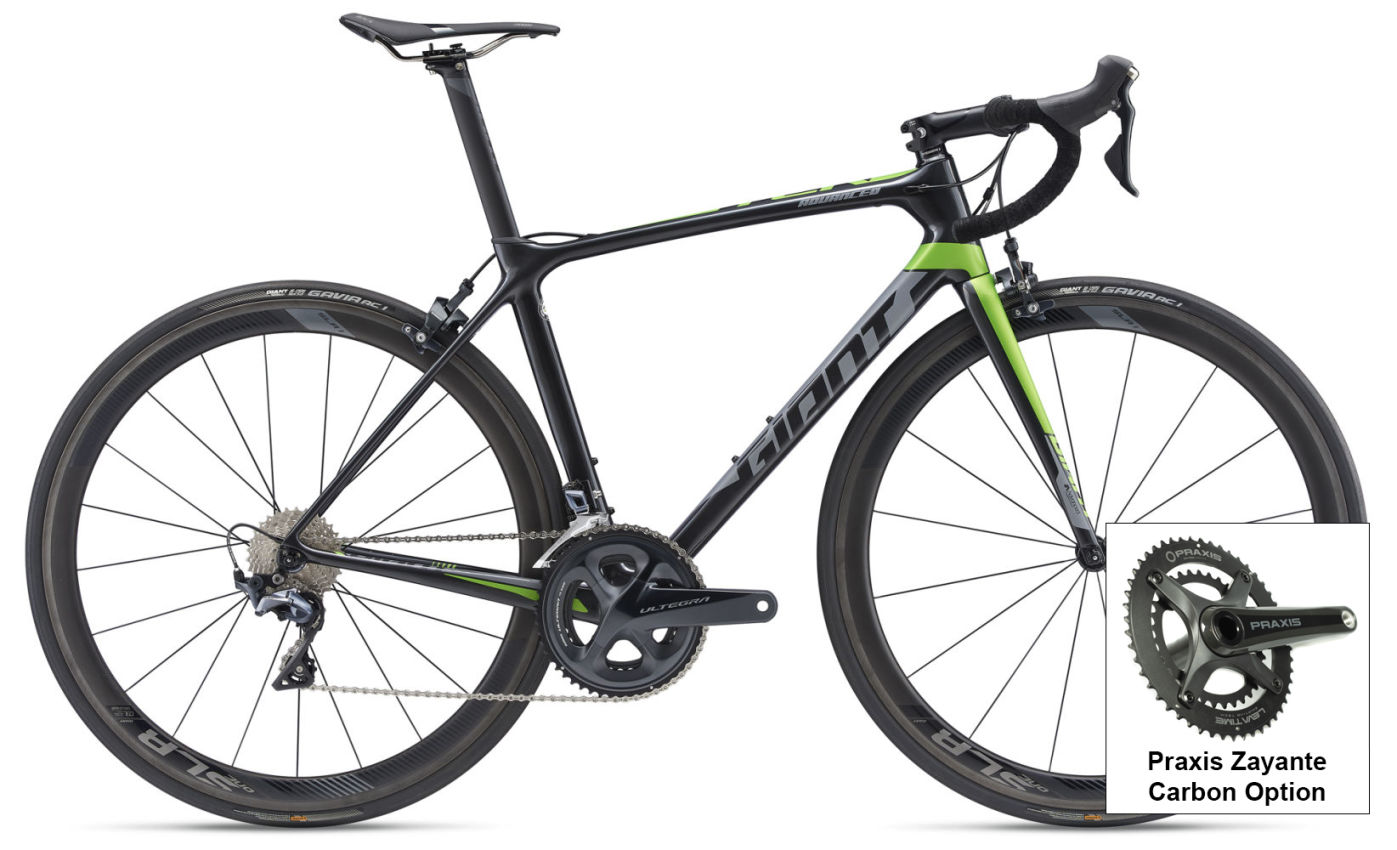

TCR Advanced Pro 1

2019

$3,465

By a professional mechanic

Original Owners

Within 14 Days

From daily training rides to your biggest race of the year. Lightweight, stiff and ultra-efficient, this composite machine delivers pure road performance to make your podium dreams come true.

With its Advanced-grade composite frame, which minimizes weight without sacrificing best-in-class stiffness, the TCR Advanced Pro puts you in position to win. Legendary Compact Road race geometry blends quick, precise handling with aggressive positioning, and the OverDrive 2 front end delivers razor-sharp steering performance. The Variant seatpost helps smooth out the ride, giving you a well-rounded machine that flies from start to finish.

Key Performance Factors

Lightweight efficiency

Composite frameset is engineered to offer minimal weight without sacrificing pedaling stiffness and efficiency.

Pro pedigree

Proven geometry and precise steering stiffness makes this frame design the choice of climbers and all-rounders who compete at the Giro d’Italia, Tour de France and other major races around the world.

Speed and compliance

The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.

Techs & Features

Advanced Composite Technology
Compact Road Design
OverDrive 2
RideSense
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMMLLXL
A Seat Tube Length (mm) (inch)42516.744517.547018.550019.752520.755021.7
B Seat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°72.0°
C Top Tube Length (mm) (inch)51520.353521.155021.757022.458022.860523.8
D Head Tube Length (mm) (inch)1234.81335.21485.81686.61887.42038
E Head Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
G Trail (mm) (inch)702.8602.4572.2572.2572.2572.2
H Wheelbase (mm) (inch)97238.397038.297638.499739.3100739.6102140.2
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)702.8682.7682.7652.6652.6652.6
K Stack (mm) (inch)51720.452920.854521.556222.158122.959523.4
L Reach (mm) (inch)37214.637814.938315.139815.740215.841216.2
M Stand Over Height (mm) (inch)72428.574229.276530.17873180531.782332.4
N Handlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
O Stem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
P Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
Q Wheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Gun Metal Black / Metallic Green / Reflective Gray
  • Frame
    Advanced-Grade Composite
  • Fork
    Advanced-Grade Composite, full-composite OverDrive 2 steerer
  • Shock
    N/A
  • Handlebar
    Giant Contact SL
  • Stem
    Giant Contact SL
  • Seatpost
    Giant Variant, composite
  • Saddle
    Giant Contact SL (forward)
  • Pedals
    N/A
  • Shifters
    Shimano Ultegra
  • Front Derailleur
    Shimano Ultegra
  • Rear Derailleur
    Shimano Ultegra
  • Brakes
    Shimano Ultegra
  • Brake Levers
    Shimano Ultegra
  • Cassette
    Shimano Ultegra, 11x30
  • Chain
    KMC X11SL-1
  • Crankset
    Shimano Ultegra, 36/52
  • Bottom Bracket
    Shimano Press Fit
  • Rims
    Giant SLR-1 WheelSystem (F:42mm, R:42mm)
  • Hubs
    Giant SLR-1 WheelSystem
  • Spokes
    Giant SLR-1 WheelSystem
  • Tires
    Giant Gavia AC 1 tubeless, 700x25, folding
  • Extras
    RideSense Bluetooth
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
