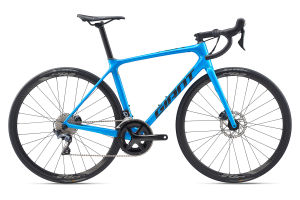

TCR Advanced 1 Disc Pro Compact

2020

$2,950

Training, racing, pushing it to the limit. Whether you’re attacking the field or digging deep for a new PR, the lightweight and efficient TCR Advanced Disc with integrated disc brake technology delivers total performance on the road.

Designed with Compact Road geometry and built with Giant’s Advanced-grade composite frame material, the TCR Advanced Disc delivers the best on-the-road efficiency of any bike in its class. The Variant seatpost adds just enough compliance to give it a balanced, race-tuned feel on the road. Our tubeless WheelSystem delivers speed and efficiency with a smoother ride and a reduced risk of flats. And with its integrated disc-brake technology, including flat mounts and 12mm front and rear thru-axles, it’s an all-weather, all-conditions race machine to keep you at the front of the pack.

Key Performance Factors

Road racing efficiency

With one of the highest pedaling stiffness-to-weight ratios of any bike in its class, this frameset is engineered to give competitive road riders superior climbing efficiency, sprint stiffness and all-rounder capabilities.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling.

Speed and compliance

The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.

Techs & Features

Advanced Composite Technology
Compact Road Design
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)42516.744517.547018.550019.752520.755021.7
BSeat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°72.0°
CTop Tube Length (mm) (inch)51520.353521.155021.757022.458022.860523.8
DHead Tube Length (mm) (inch)1234.81335.21485.81686.61887.42038
EHead Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)702.8602.4572.2572.2572.2572.2
HWheelbase (mm) (inch)97238.397038.297638.499739.3100739.6102140.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)702.8682.7682.7652.6652.6652.6
KStack (mm) (inch)51720.452920.854521.556222.158122.959523.4
LReach (mm) (inch)37214.637814.938315.139815.740215.841216.2
MStand Over Height (mm) (inch)72428.574229.276530.17873180531.782332.4
NHandlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, ML, L, XL
  • Colors
    Metallic Blue / Gunmetal Black
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact
  • Stem
    Giant Contact
  • Seatpost
    Giant Variant, composite
  • Saddle
    Giant Contact (forward)
  • Pedals
    N/A
  • Shifters
    Shimano Ultegra
  • Front Derailleur
    Shimano Ultegra
  • Rear Derailleur
    Shimano Ultegra
  • Brakes
    Shimano Ultegra hydraulic
  • Brake Levers
    Shimano Ultegra hydraulic
  • Cassette
    Shimano 105, 11x30
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano RS-510, 36/52
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant PR-2 Disc wheelset
  • Hubs
    Giant PR-2 Disc wheelset, 12mm thru-axle
  • Spokes
    Giant PR-2 Disc wheelset
  • Tires
    Giant Gavia Course AC 1, tubeless, 700x25, folding
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
