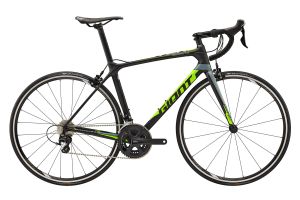

TCR Advanced 2

2018

$1,735

By a professional mechanic

Original Owners

Within 14 Days

CLIMB FASTER. CORNER QUICKER. BREAK AWAY FROM THE PACK. FOR ALL-AROUND ROAD RACING PERFORMANCE, LOOK NO FURTHER.

The most efficient race bikes have the perfect balance of light weight, stiffness and smooth compliance on the road. The TCR Advanced delivers on all three, making it a versatile performer for competitive road riders. The Advanced-grade composite frame manages to shave every gram possible, while retaining pedal-stomping stiffness. The OverDrive steerer system and MegaDrive downtube are engineered for the precise handling so you can rail corners at speed. And the Variant seatpost is engineered for an ideal blend of efficiency and compliance—so you stay fresh until the finish on those big days in the saddle.

  • High-performance Advanced-grade composite frame with Variant composite seatpost
  • Advanced-grade composite fork with alloy/composite hybrid steerer
  • Giant PR-2 wheelset with Giant Gavia Race 1 tubeless tires
  • Shimano 105 11-speed componentry

Techs & Features

Advanced Composite Technology
Compact Road Design
OverDrive

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 167 cm5’6”
  • S
      167 cm5’6”  to 173 cm5’8”
  • M
      173 cm5’8”  to 178 cm5’10”
  • M/L
      178 cm5’10”  to 183 cm6’0”
  • L
      183 cm6’0”  to 188 cm6’2”
  • XL
      188 cm6’2”  to 194 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMM/LLXL
A Seat Tube Length (mm) (inch)42516.744517.547018.550019.752520.755021.7
B Seat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°72.0°
C Top Tube Length (mm) (inch)51520.353521.155021.757022.458022.860523.8
D Head Tube Length (mm) (inch)1234.81335.21485.81686.61887.42038
E Head Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
G Trail (mm) (inch)702.8602.4572.2572.2572.2572.2
H Wheelbase (mm) (inch)97238.397038.297638.499739.3100739.6102140.2
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)702.8682.7682.7652.6652.6652.6
K Stack (mm) (inch)51720.452920.854521.556222.158122.959523.4
L Reach (mm) (inch)37214.637814.938315.139815.740215.841216.2
M Stand Over Height (mm) (inch)72428.574229.276530.17873180531.782332.4
N Handlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
O Stem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
P Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
Q Wheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Matte Carbon Smoke/Neon Green/Grey, Matte Neon Red/Black
  • Frame
    Advanced-grade composite
  • Fork
    Advanced-grade composite, Hybrid OverDrive steerer
  • Shock
    N/A
  • Handlebar
    Giant Contact , 31.8mm
  • Stem
    Giant Connect
  • Seatpost
    Giant Variant composite
  • Saddle
    Contact Forward
  • Pedals
    N/A
  • Shifters
    Shimano 105
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105
  • Brakes
    Shimano 105
  • Brake Levers
    Shimano 105
  • Cassette
    Shimano 105 11x28, 11-Speed
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano 105, 34/50
  • Bottom Bracket
    Shimano, Press Fit
  • Rims
    Giant PR-2, Tubeless
  • Hubs
    Giant Performance Tracker Road, Sealed Bearings, QR, 28h
  • Spokes
    Dynamic Balanced Lacing, Sapim Race 14/15g
  • Tires
    Giant Gavia 1 Tubeless, 700x25, Folding
  • Extras
    Factory Tubeless
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
