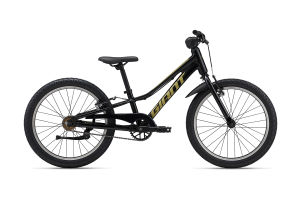

Talon 20 SS

$410

Similar Products

Best For: First Bike

Talon 20 Lite

$530

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      113 cm3’8”  to 135 cm4’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Seat Tube Length (mm) (inch)2258.9
B Seat Tube Angle (degrees)72.0°
C Top Tube Length (mm) (inch)45017.7
D Head Tube Length (mm) (inch)1305.1
E Head Tube Angle (degrees)69.0°
F Fork Rake (mm) (inch)381.5
G Trail (mm) (inch)58.32.3
H Wheelbase (mm) (inch)891.235.1
I Chain Stay Length (mm) (inch)387.115.2
J Bottom Bracket Drop (mm) (inch)301.2
K Stack (mm) (inch)442.617.4
L Reach (mm) (inch)306.212
M Stand Over Height (mm) (inch)467.618.4
N Handlebar Width (mm) (inch)52020.5
O Stem Length (mm) (inch)602.4
P Crank Length (mm) (inch)1305.1
Q Wheel Size 20"
Specs
  • Sizes
    one size
  • Colors
    Black, Sandstorm
  • Frame
    ALUXX-grade aluminum
  • Fork
    high-tensile steel, rigid
  • Shock
    N/A
  • Handlebar
    Giant Kids, alloy, 31.8mm, 10-degree rise, 60mm, custom taper design
  • Grips
    Giant Junior, custom taper design
  • Stem
    forged alloy Ahead, 10-degree
  • Seatpost
    alloy, single-bolt, 27.2x250mm
  • Saddle
    Explora Jr.
  • Pedals
    platform
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    N/A
  • Brakes
    alloy, linear pull
  • Brake Levers
    alloy, junior MTB
  • Cassette
    20t
  • Chain
    KMC C410
  • Crankset
    alloy, 32t, 140mm
  • Bottom Bracket
    semi-cartridge
  • Rims
    Giant Kids 20", alloy
  • Hubs
    nutted, 28h
  • Spokes
    stainless, 14g
  • Tires
    Giant Junior Sport, 20x1.95", 22 tpi
  • Extras
    bell, kickstand, fender, rear derailleur protector
  • Weight
    9.34 kg (20 lbs 09 oz) - Size (20)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
