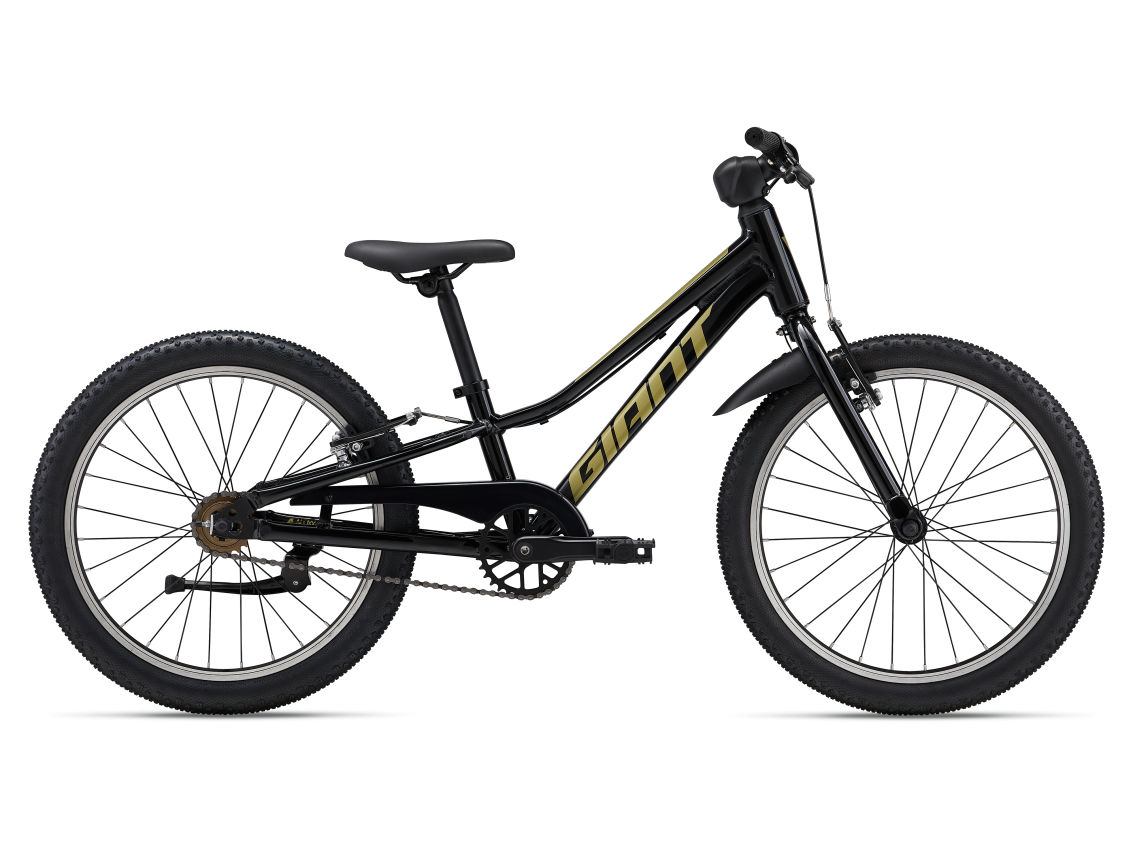

Talon 20 SS

$410

Similar Products

Best For: First Bike

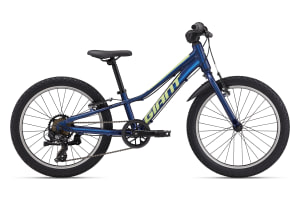

Talon 20 Lite

$480

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      113 cm3’8”  to 135 cm4’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
ASeat Tube Length (mm) (inch)2258.9
BSeat Tube Angle (degrees)72.0°
CTop Tube Length (mm) (inch)45017.7
DHead Tube Length (mm) (inch)1305.1
EHead Tube Angle (degrees)69.0°
FFork Rake (mm) (inch)381.5
GTrail (mm) (inch)58.32.3
HWheelbase (mm) (inch)891.235.1
IChain Stay Length (mm) (inch)387.115.2
JBottom Bracket Drop (mm) (inch)301.2
KStack (mm) (inch)442.617.4
LReach (mm) (inch)306.212
MStand Over Height (mm) (inch)467.618.4
NHandlebar Width (mm) (inch)52020.5
OStem Length (mm) (inch)602.4
PCrank Length (mm) (inch)1305.1
QWheel Size 20"
Specs
  • Sizes
    one size
  • Colors
    Black, Sandstorm
  • Frame
    ALUXX-grade aluminum
  • Fork
    high-tensile steel, rigid
  • Shock
    N/A
  • Handlebar
    Giant Kids, alloy, 31.8mm, 10-degree rise, 60mm, custom taper design
  • Grips
    Giant Junior, custom taper design
  • Stem
    forged alloy Ahead, 10-degree
  • Seatpost
    alloy, single-bolt, 27.2x250mm
  • Saddle
    Explora Jr.
  • Pedals
    platform
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    N/A
  • Brakes
    alloy, linear pull
  • Brake Levers
    alloy, junior MTB
  • Cassette
    20t
  • Chain
    KMC C410
  • Crankset
    alloy, 32t, 140mm
  • Bottom Bracket
    semi-cartridge
  • Rims
    Giant Kids 20", alloy
  • Hubs
    nutted, 28h
  • Spokes
    stainless, 14g
  • Tires
    Giant Junior Sport, 20x1.95", 22 tpi
  • Extras
    bell, kickstand, fender, rear derailleur protector
  • Weight
    9.34 kg (20 lbs 09 oz) - Size (20)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
