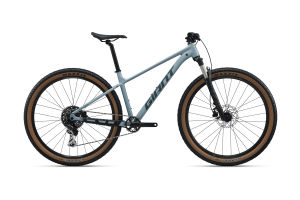

Talon 1

$1,000

Similar Products

Best For: XC

Talon 2

$800

Best For: XC

Talon 4

$650

By a professional mechanic

Original Owners

Within 14 Days

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models.

Key Performance Factors

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • M (29")
      169 cm5’7”  to 179 cm5’10”
  • L (29")
      176 cm5’9”  to 186 cm6’1”
  • XL (29")
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 M (29")L (29")XL (29")
A Seat Tube Length (mm) (inch)42016.545017.748018.9
A1 Seat Post Insertion Depth (mm) (inch)2007.92509.830011.8
B Seat Tube Angle (degrees)74.5°74.5°74.5°
C Top Tube Length (mm) (inch)60423.862924.865325.7
D Head Tube Length (mm) (inch)1054.11254.91405.5
E Head Tube Angle (degrees)67.5°67.5°67.5°
F Fork Rake (mm) (inch)441.7441.7441.7
G Trail (mm) (inch)1094.31094.31094.3
H Wheelbase (mm) (inch)116445.8119146.9121647.9
I Chain Stay Length (mm) (inch)45517.945517.945517.9
J Bottom Bracket Drop (mm) (inch)552.2552.2552.2
K Stack (mm) (inch)60623.962524.663825.1
L Reach (mm) (inch)43517.145517.947518.7
M Stand Over Height (mm) (inch)70827.970827.971028
N Handlebar Width (mm) (inch)76029.976029.976029.9
O Stem Length (mm) (inch)502602.4602.4
P Crank Length (mm) (inch)1706.71706.71756.9
Specs
  • Sizes
    XS, S, M, L, XL, XXL
  • Frame
    ALUXX-Grade Butted Aluminum
  • Fork
    GIANT SXC32-2 RCL Alloy SingleAir 29""/27.5"" 15x110 TA 80mm(27.5") Spring: Air 80mm(27.5")/100mm(29") Spring: Air | M, L, XL, XXL: 100mm(29") Spring: Air
  • Handlebar
    Giant Connect Trail, 780mm x 31.8mm,GA 690mm XS: 690mm(27,5") S: 690mm(27,5") /750mm(29") M, L, XL, XXL: 780mm(29")
  • Grips
    Giant Sole-O Grip
  • Stem
    Giant Sport, 7 Degree XS: 40(27.5") S: 50(27.5"/29") M: 60(27.5"/29") L: 70(27.5"/29") XL: 80(29") XXL: 90(29")
  • Seatpost
    Giant Sport, 30.9, SP217
  • Saddle
    Giant ErgoContact Trail
  • Pedals
    MTB caged
  • Shifters
    Microshift Advent MX 1x11 SL-M7115-R
  • Rear Derailleur
    Microshift Advent 1x11 RD-M7015M
  • Brakes
    Tektro HD M3121 [F] 180mm [R] 160mm, Hydraulic
  • Brake Levers
    Tektro HD-M3121 M275
  • Cassette
    Microshift Advent MX 1x11 CS-H114 11-50T
  • Chain
    KMC X11
  • Crankset
    Prowheel Charm w/Steel C.Ring, 32t Prowheel Charm w/Steel C.Ring, 30t w/O Chain Guard for 29"" 52.5mm chainline
  • Bottom Bracket
    FP-B902W
  • Rims
    Giant - Tubeless Compatible, 6061 Aluminum, Double Wall, 21mm Inner Width
  • Hubs
    Giant [F] 15x110 thru axle, [R] 12x142 thru-axle
  • Spokes
    Stainless 14G
  • Tires
    Maxxis Rekon Race 29x2.4"" Rekon 27.5x2.4"" 60 TPI wire bead
  • Max Tire Clearance
    maximum Rear tire size 2.4"
  • Max Chainring Size
    maximum chainring size 32T
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
