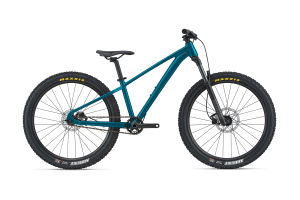

STP 26 SS

2021

$1,100

Make the world your playground with the updated STP 26. A longtime favorite for dirt jumping, street shredding and whatever style you dream up, it’s built on a lightweight, super-strong aluminum frame and quick, responsive 26-inch wheels.

With its quickness, durability and lightweight feel, this reengineered STP gives you more pop to help you up your game and do it with style. Made with a gusset-free ALUXX aluminum frame and 26-inch wheels, it has a low saddle height and taller front end so you can rail corners and stick your landings. Disc brakes will help you stop on a dime, and a 120mm suspension fork with a handlebar-mounted remote lets you go from fast street riding to rugged trails with total control. Available in two sizes, Regular and Large, for riders of all heights.

Key Performance Factors

Trail Inspired Geometry

Lightweight, strong and durable aluminum frameset with a longer top tube, tighter rear triangle and slacker head angle delivers confident, agile handling on dirt jumps, trails or street riding sessions.

Quick and responsive

Frame is designed for 26-inch wheels with a low saddle height and taller front end for quick, confident handling.

Maximum Control

Powerful disc brakes and a 120 mm suspension fork with a remote lockout puts maximum control in the rider’s hands. Grippy, high-volume 2.6” tires are ideal for multi-surface riding on streets, trails or bike parks.

Highlights

The new STP 26 is built on a lightweight and durable ALUXX frameset with updated geometry including a longer top tube, tighter rear triangle and a slacker headtube angle designed for a 120mm suspension fork. It’s built up with 26-inch wheels fitted with high-volume 2.4-inch tires. Here’s a look at some of the key technologies on the STP 26.

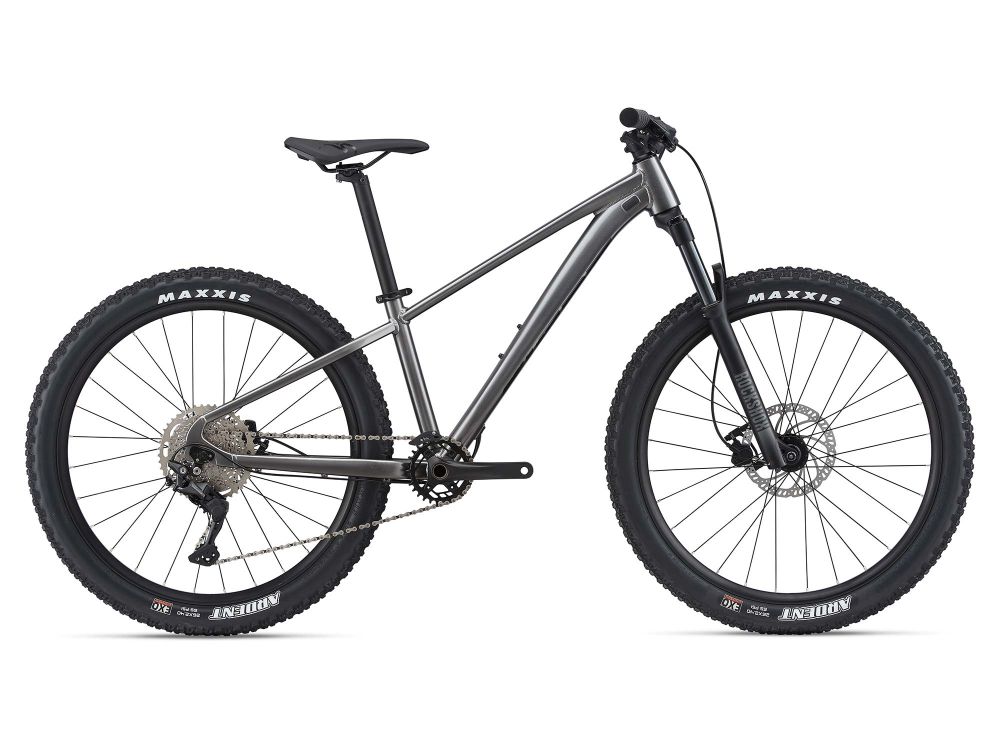

STP 26 with interactive tooltips

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • Regular
      140 cm4’7”  to 160 cm5’3”
  • Large
      155 cm5’1”  to 170 cm5’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  RegularLarge
BSeat Tube Angle (degrees)73.5°73.5°
CTop Tube Length (mm) (inch)54521.557522.6
DHead Tube Length (mm) (inch)1003.91104.3
EHead Tube Angle (degrees)67.0°67.0°
HWheelbase (mm) (inch)108642.8111744
IChain Stay Length (mm) (inch)43517.143517.1
KStack (mm) (inch)57922.858823.1
LReach (mm) (inch)37414.740115.8
MStand Over Height (mm) (inch)679.526.7717.628.2
PCrank Length (mm) (inch)1556.11556.1
Specs
  • Sizes
    regular, large
  • Colors
    Teal
  • Frame
    ALUXX-Grade Aluminum, horizontal dropouts, integrated chain tensioner
  • Fork
    RockShox Recon Silver RL, 15x110mm120mm, with remote lockout
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8
  • Stem
    forged alloy, 0-degree
  • Seatpost
    alloy, two-bolt, 30.9x350
  • Saddle
    Giant Sport
  • Pedals
    platform
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    N/A
  • Brakes
    Tektro HD-M275, hydraulic disc
  • Brake Levers
    Tektro HD-M275
  • Cassette
    16t
  • Chain
    Z610
  • Crankset
    alloy forged, 30t
  • Bottom Bracket
    threaded
  • Rims
    Giant 26", alloy, 28mm inner width
  • Hubs
    Giant Disc, 28h, QR, alloy, disc
  • Spokes
    stainless, 14g
  • Tires
    Maxxis Ardent, 26x2.25
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
