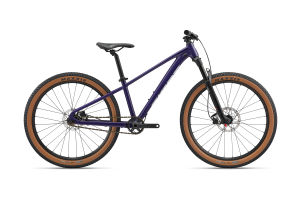

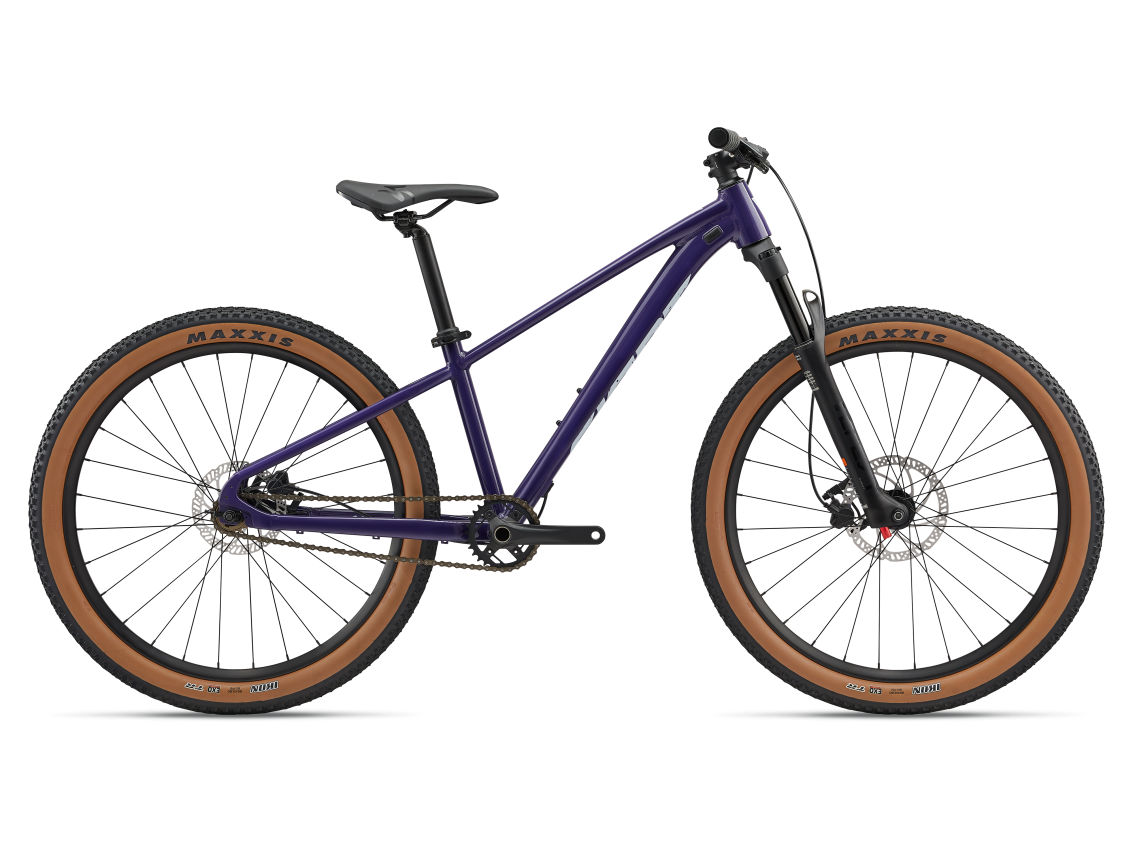

STP 26 SS

2025

$980

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • Regular
      140 cm4’7”  to 160 cm5’3”
  • Large
      155 cm5’1”  to 170 cm5’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 RegularLarge
B Seat Tube Angle (degrees)73.5°73.5°
C Top Tube Length (mm) (inch)54521.557522.6
D Head Tube Length (mm) (inch)1003.91104.3
E Head Tube Angle (degrees)67.0°67.0°
H Wheelbase (mm) (inch)108642.8111744
I Chain Stay Length (mm) (inch)43517.143517.1
K Stack (mm) (inch)57922.858823.1
L Reach (mm) (inch)37414.740115.8
M Stand Over Height (mm) (inch)679.526.7717.628.2
P Crank Length (mm) (inch)1556.11556.1
Specs
  • Sizes
    regular, large
  • Colors
    Astral Aura
  • Frame
    ALUXX-grade aluminum, horizontal dropouts, integrated chain tensioner
  • Fork
    Giant CREST 34 Boost RCL, 15x110mm, 100mm
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8mm
  • Grips
    Giant Sole-O
  • Stem
    forged alloy, 0-degree
  • Seatpost
    alloy, two-bolt, 30.9x300mm (regular) alloy, two-bolt, 30.9x350mm (large)
  • Saddle
    Giant Sport
  • Pedals
    platform
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    N/A
  • Brakes
    Tektro HD-M275, hydraulic [F]180mm, [R]160mm rotors
  • Brake Levers
    Tektro HD-M275
  • Cassette
    16t
  • Chain
    Z610
  • Crankset
    Prowheel Charm, 30t, 155mm (regular) Prowheel Charm, 30t, 155mm (large)
  • Bottom Bracket
    threaded
  • Rims
    Giant 26", alloy, 28mm inner width
  • Hubs
    Giant Disc, 28h, 100x15 thru-axle, alloy, disc
  • Spokes
    stainless, 14g
  • Tires
    Maxxis Ikon, 26x2.2"
  • Weight
    11.24 kg (24 lbs 12 oz) - Size (26)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
