FREE Dropper Seat Post w/ Select Bike Purchases  SHOP NOW

New

STP 20 FS

$675

Similar Products

Best For: Trail

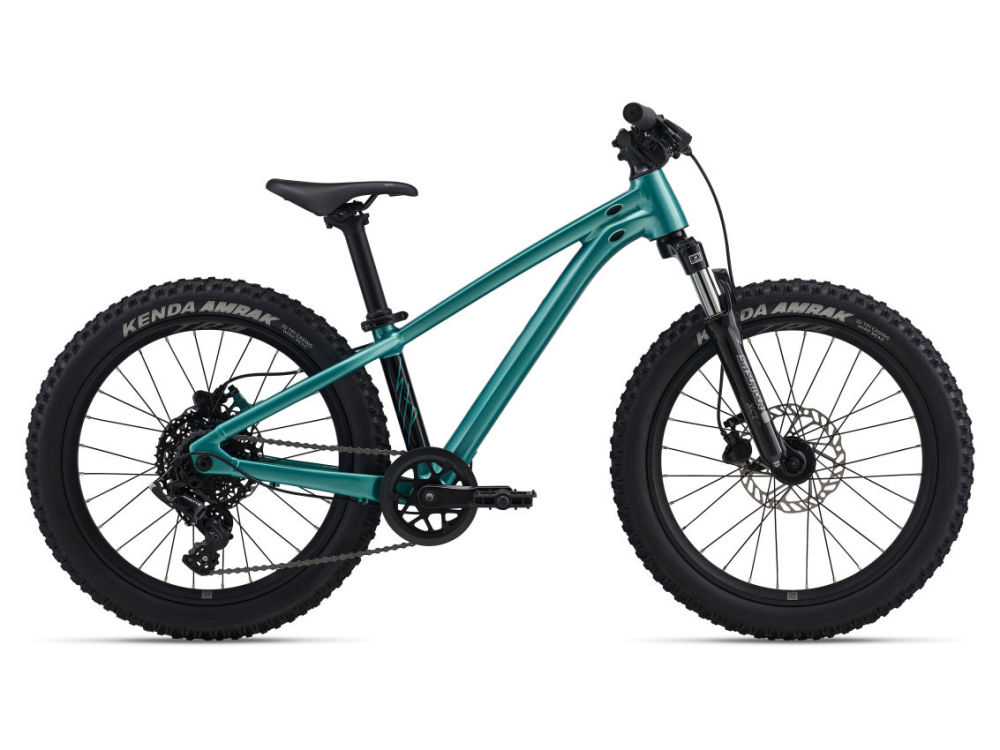

STP 20

$640

From the driveway to the bike park, STP 20 helps young riders make the transition from wobbly laps around the block to having fun on trails and off-road terrain.

Key Performance Factors

Dirt or street

Lightweight, strong and durable aluminum frameset is designed to go from street riding to bike parks or trails.

Kid-friendly design

Frame geometry is designed specifically for young riders with 20-inch wheels, a low standover height and taller front end for a stable ride quality.

Maximum control

Powerful disc brakes and suspension fork (on select models) with a lockout option puts maximum control in the rider’s hands.

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      115 cm3’9”  to 130 cm4’3”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
BSeat Tube Angle (degrees)73.0°
CTop Tube Length (mm) (inch)45017.7
DHead Tube Length (mm) (inch)1054.1
EHead Tube Angle (degrees)69.0°
HWheelbase (mm) (inch)88734.9
IChain Stay Length (mm) (inch)36514.4
KStack (mm) (inch)44817.6
LReach (mm) (inch)31312.3
MStand Over Height (mm) (inch)54521.5
PCrank Length (mm) (inch)1275
Specs
  • Sizes
    one size
  • Colors
    Blue Palace, Dusted Peri
  • Frame
    ALUXX-grade aluminum
  • Fork
    SR XCT L20, coil, 60mm, lockout
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8mm
  • Grips
    Giant Junior
  • Stem
    forged alloy, 0-degree
  • Seatpost
    alloy, 27.2x250mm
  • Saddle
    Giant Jr. Sport
  • Pedals
    platform
  • Shifters
    microSHIFT DS45-7
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Tourney
  • Brakes
    Tektro HD-J285, hydraulic [F]160mm, [R]160mm rotors
  • Brake Levers
    Tektro HD-J285
  • Cassette
    Shimano CS-HG200, 12x32
  • Chain
    KMC Z7
  • Crankset
    alloy forged, 30t, 127mm
  • Bottom Bracket
    cartridge
  • Rims
    Giant 20", alloy, 28mm inner width
  • Hubs
    Giant Disc, 28h, QR, alloy, disc
  • Spokes
    stainless, 14g
  • Tires
    Kenda Karma, 20x2.2"
  • Weight
    10.59kg (23lbs 06oz) - Size (Reg.)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
