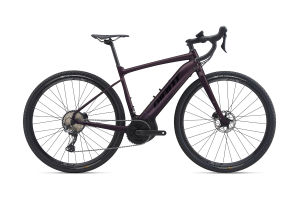

Revolt E+ Pro 28mph

2021

$5,100

From city streets to rugged backroads, this versatile drop-bar E-bike gives you the power to venture far on gravel roads, dirt roads, any route you dream up.

This new E-bike gives you the power to ride from suburban streets to rugged rural backroads with efficiency and control. It’s a great way to experience adventure on ever-changing terrain and feel the freedom to extend your range. The ALUXX SL aluminum frameset has a SyncDrive Pro motor that’s powered by Yamaha. This advanced system delivers smooth acceleration on paved roads, gravel or dirt. It also includes wider tires and integrated rack mounts so you can customize your adventure with fenders, racks or whatever other adventure accessories you need.

Key Performance Factors

Unlimited adventure

Powerful SyncDrive Pro motor, lightweight ALUXX SL aluminum frame, smooth-riding tubeless tires and a comfortable D-Fuse seatpost give you the ability to ride any road, any route.

Powerful, integrated battery

All-new EnergyPak Smart Compact 500 battery delivers long-distance pedaling support and is seamlessly integrated into the frame for a sleek overall profile.

System simplicity

With the press of the simple RideControl Switch on/off button on the top tube, you are ready to go. The SmartAssist mode will keep you spinning without any worries. ANT+ capability further allows you to connect a cycle computer of choice.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 500 / SyncDrive Pro

  • Range
  • Extreme: 41 km 25 miles
  • Good: 82 km 50 miles
  • Ideal: 145 km 90 miles

Highlights

The new Revolt E+ gives you the power to ride from urban streets to rugged rural backroads with efficiency and control. It’s a great way to experience adventure on ever-changing terrain and feel the freedom to extend your range. The reengineered frameset has a new SyncDrive Pro motor that’s powered by Shimano. This customized system delivers smooth acceleration on paved roads, gravel or dirt. New this year is a compact 500Wh battery that lasts 30 percent longer than the previous generation. It also features range extender compatibility, adding another 50 percent battery life to your adventure. The unique SmartAssist motor support smoothly adapts to your riding style automatically and removes the need to adjust the support levels yourself. Manual controls are now cleanly integrated into the brake levers, leaving your cockpit clean and smooth. Wider tires and integrated rack mounts allow you to customize your adventure with fenders, racks or whatever other accessories you desire.

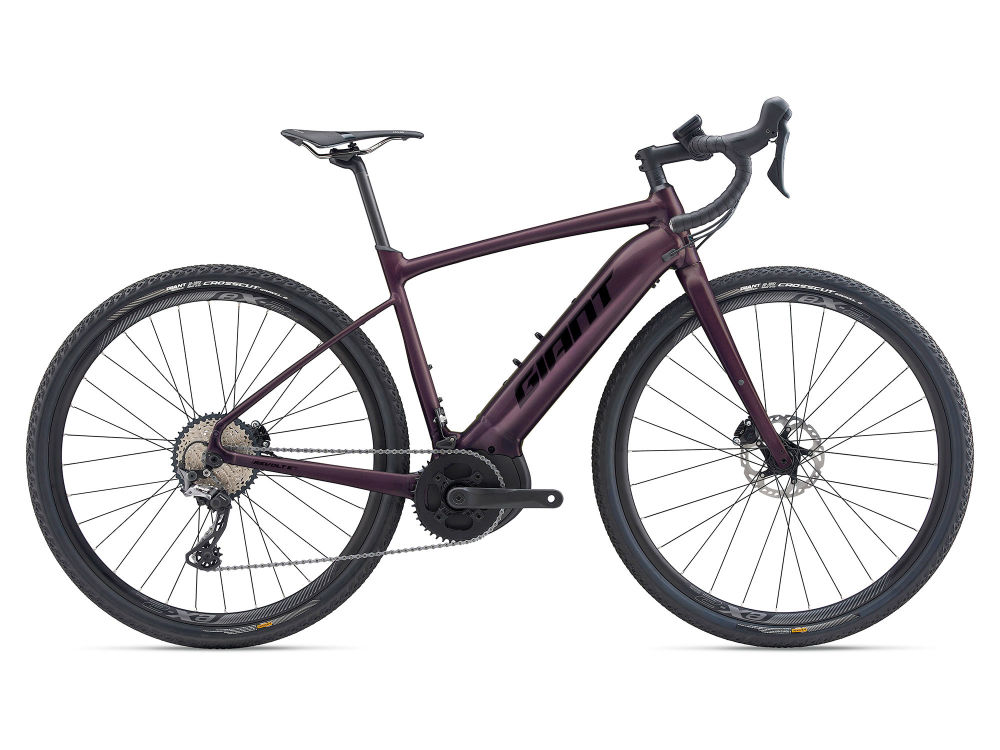

Revolt E+ Pro with interactive tooltips

Techs & Features

E+ System
SyncDrive Pro
Smart Assist
ALUXX SL Aluminum Technology
D-Fuse Technology
Tubeless System
Energypak

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      159 cm5’3”  to 171 cm5’7”
  • M
      169 cm5’7”  to 181 cm5’11”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)45017.747518.752520.755021.7
BSeat Tube Angle (degrees)73.5°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)54521.555521.957522.659023.2
DHead Tube Length (mm) (inch)1355.31505.91807.11957.7
EHead Tube Angle (degrees)71.0°71.0°71.0°71.0°
FFork Rake (mm) (inch)502502502502
GTrail (mm) (inch)72.52.872.52.872.52.872.52.8
HWheelbase (mm) (inch)105041.3105641.6107742.4109243
IChain Stay Length (mm) (inch)45517.945517.945517.945517.9
JBottom Bracket Drop (mm) (inch)853.3853.3853.3853.3
KStack (mm) (inch)57322.658723.161524.262924.8
LReach (mm) (inch)37514.837514.838715.239715.6
MStand Over Height (mm) (inch)74229.27623080431.782532.5
NHandlebar Width (mm) (inch)40015.742016.542016.544017.3
OStem Length (mm) (inch)803.1903.51104.31204.7
PCrank Length (mm) (inch)1706.71706.71706.71706.7
QWheel Size 700C700C700C700C
Specs
  • Motor
    Giant SyncDrive Pro (28 mph/45 km/h)
  • Controller
    Giant RideControl Ergo 4 Shimano GRX Di2
  • Display
    Wireless display compatible
  • Battery
    Giant EnergyPak Smart Compact 500Wh
  • Maximum Assisted Speed
    28 mph
  • Sizes
    S, M, ML, L, XL
  • Colors
    Rosewood
  • Frame
    ALUXX SL aluminum
  • Fork
    Advanced-grade composite,12x100 thru-axle
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
  • Stem
    Giant Contact
  • Seatpost
    Giant D-Fuse SL, composite
  • Saddle
    Giant Contact SL, Neutral
  • Pedals
    Aluminum Platform
  • Shifters
    Shimano ST-RX810 GRX Hydraulic Disc Brake 11-speed
  • Front Derailleur
    -
  • Rear Derailleur
    Shimano RD-RX812 GRX 11-speed
  • Brakes
    Shimano BR-RX810 GRX Hydraulic Disc, 160mm Rotors
  • Brake Levers
    Shimano ST-RX810 Hydraulic Disc
  • Cassette
    Shimano CS-M5100-11, 11-42, 11-Speed
  • Chain
    KMC e.11 Turbo, EcoProteq
  • Crankset
    Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
  • Bottom Bracket
    N/A
  • Rims
    Giant eX 2, Tubeless-Ready, 700c Aluminum
  • Hubs
    Giant Performance Tracker Road, Sealed Bearing
  • Spokes
    Sapim E-Lite [r] Race [f]
  • Tires
    Maxxis Receptor, EXO, Skinwall, 700x40c (622x40), Tubeless, w/o Reflex
  • Extras
    Giant EnergyPak 4A Fast Charger, Giant EnergyPak Plus range extender compatible
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
