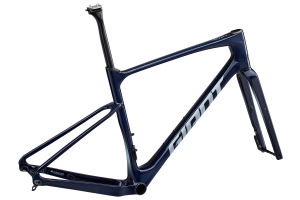

Revolt Advanced Pro Frameset

2022

$2,400

By a professional mechanic

Original Owners

Within 14 Days

Now lighter, smoother and more adaptable to variable terrain, this all-new, ready-for-anything gravel frameset combines ultra-efficient performance with next-level control.

Key Performance Factors

Lightweight efficiency

New Advanced composite frame and Advanced SL composite fork save a combined 125 grams compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper headtube angle for improved acceleration and climbing.

Tuned compliance

New frame features a lower seatstay junction with smaller diameter tubes to absorb road shocks and vibrations.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can choose between the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Techs & Features

Advanced Composite Technology
D-Fuse Seatpost
MegaDrive
OverDrive
PowerCore
Flip Chip - Dropout

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1”  to 166 cm5’5”
  • S
      159 cm5’3”  to 171 cm5’7”
  • M
      169 cm5’7”  to 181 cm5’11”
  • ML
      174 cm5’9”  to 186 cm6’1”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMMLLXL
 SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
A Seat Tube Length (mm) (inch)43016.945017.747018.549019.351020.153020.9
B Seat Tube Angle (degrees)74.0°73.5°73.5°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)54021.355021.75602257522.65852360023.6
D Head Tube Length (mm) (inch)1254.91355.31505.91656.51807.11957.7
E Head Tube Angle (degrees)70.0°71.0°71.5°72.0°72.0°72.0°
F Fork Rake (mm) (inch)502502502502502502
G Trail (mm) (inch)783.1 | 823.2722.8 | 753682.7 | 722.8652.6 | 682.7652.6 | 682.7652.6 | 682.7
H Wheelbase (mm) (inch)102440.3 | 103440.7102040.2 | 103040.6102640.4 | 103640.8103140.6 | 104141104141 | 105141.4105641.6 | 106642
I Chain Stay Length (mm) (inch)42516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.1
J Bottom Bracket Drop (mm) (inch)803.1 | 813.2803.1 | 813.2803.1 | 813.2803.1 | 813.2803.1 | 813.2803.1 | 813.2
K Stack (mm) (inch)55621.957022.458623.160223.761624.363024.8
L Reach (mm) (inch)381153811538715.239115.439715.640716
M Stand Over Height (mm) (inch)72428.5 | 73128.874029.1 | 74729.475729.8 | 76430.177430.5 | 78030.779131.1 | 79731.480731.8 | 81432
N Handlebar Width (mm) (inch)42016.542016.544017.344017.346018.146018.1
O Stem Length (mm) (inch)502602.4702.8803.1803.1903.5
P Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
Q Wheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Candy Navy
  • Frame
    Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Seatpost
    Giant D-Fuse SLR, composite, -5/+15mm offset
  • Extras
    53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
  • Weight
    1.52 kg (3 lb 6oz) - Size (XS)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
