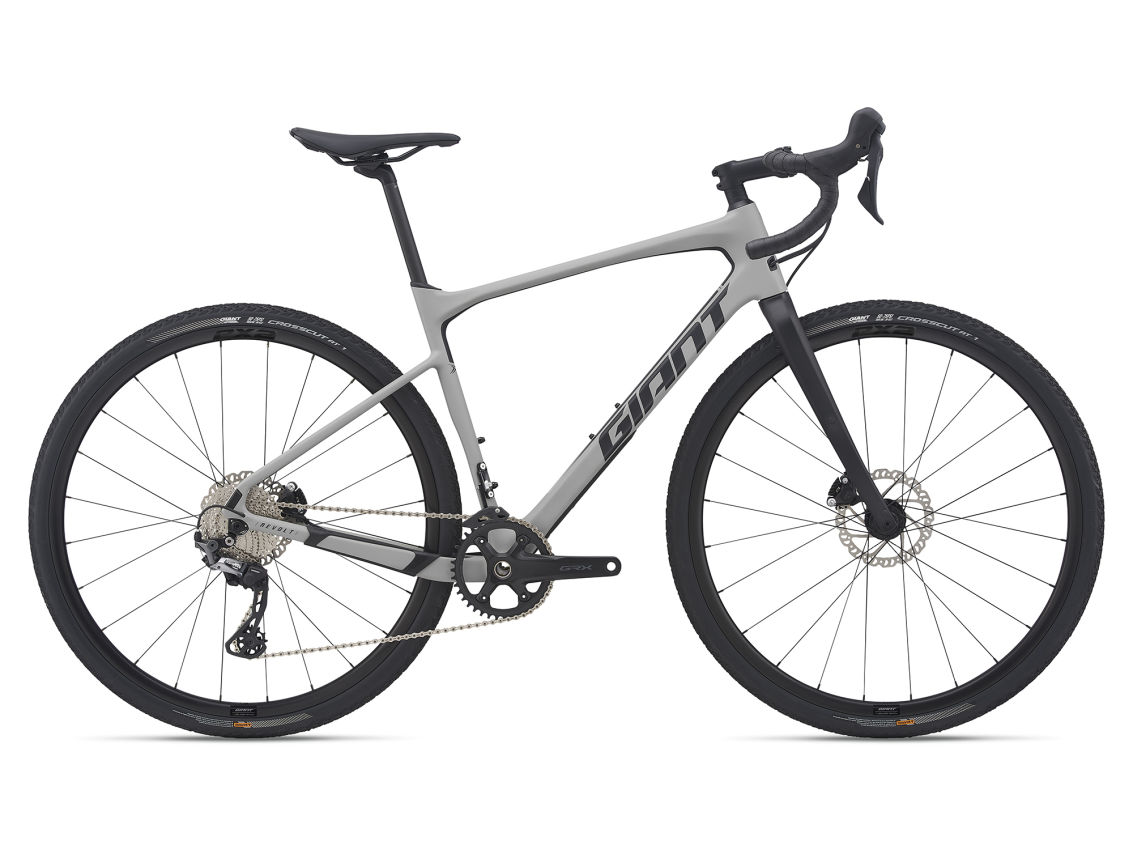

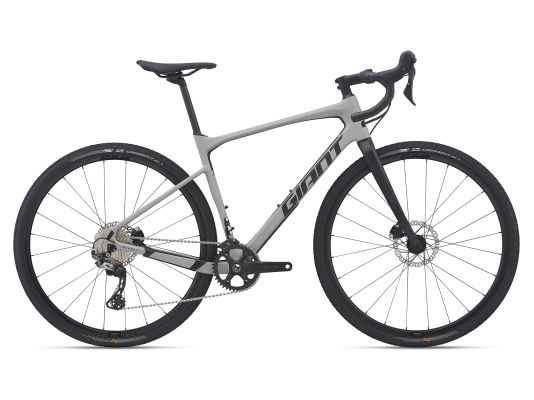

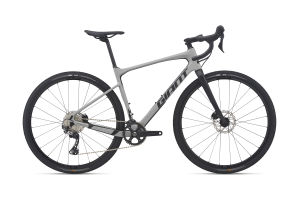

Revolt Advanced 1

2021

$2,800 *

MSRP excluding sales tax, shipping & handling, and dealer-installed options. Dealer prices and fees may vary.

{{partnumber.supplementaryGroup.introText}} {{partnumber.supplementaryGroup.urlLabel}}

{{partnumbersByColor()[0].description}}{{partnumbersByColor()[0].globalFrameSize}}

{{partnumbersByColor()[0].priceToFormat}}

{{partnumbersByColor()[0].stock.Label}}

Pick-up at any Giant retailer in about 7 business days.

Expected in our warehouse around {{partnumber.stock.DateExpectedToFormat}} and shipped to any Giant retailer in about 1 week{{partnumber.stock.DateExpectedToWeeks}}-{{partnumber.stock.DateExpectedToWeeks + 1}} weeks

The product you have selected is currently out of stock in our warehouse but there may be a store in your area that has the product in stock. Please contact your local store for availability.

In store now and available for pick up in 1 - 4 business days at these Giant retailers (distance from {{ dealercity }}): Want to pick up the bike in 1-4 business days?
We know these retailers near {{ dealercity }} have it in store now:

  • {{ item.Name | limitTo : 22 }}{{item.Name.length > 22 ? '..' : ''}}

    {{item.Name}}

    {{ item.DistanceToFormat }} Miles | {{ item.City }} {{ item.State }}
    Show details Hide details

    {{item.Street}}
    {{item.Zipcode}} {{item.City}}
    Phone: {{item.Phone}}
    {{ item.Email }}
  • No stores found
Show more stores Find more stores

Notify me when available at any Giant retailer

If you are willing to take a road trip, the bike is available in 1-4 days at these Giant retailers more than 200 miles from {{ dealercity }}.

What is my size? | Why pick up in store?

COMPARE

Share

Free Home Delivery

On All Bicycles

Free Returns

Within 14 Days

Assembly Included

By a professional mechanic

Get ready to crush some gravel. With its lightweight, endurance-friendly composite frame, generous tire clearance and smooth ride quality, Revolt Advanced lets you ride farther and faster on rough roads, gravel or dirt.

Designed with purpose-built geometry for gravel riding, plus engineered compliance in a lightweight composite frame, the Revolt Advanced is the perfect way to push new limits of speed on variable terrain. A composite fork eats up bumps, and the D-Fuse seatpost and Contact XR D-Fuse handlebar absorb shocks and vibrations. The frame is integrated for disc brakes and has clearance for high-volume tires up to 45mm so you can float through the rough stuff. Details including the X-Defender downtube protector and smart mount system for racks and accessories give you a head start on any gravel riding mission.

Key Performance Factors

Versatile gravel geometry

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. The result is confident speed in all situations, from out-of-the-saddle climbs to rugged dirt descents.

Tuned compliance

Innovative Contact XR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume tires up to 45mm helps smooth out rough roads, gravel and dirt.

All-rounder efficiency

The Advanced composite frame maximizes pedaling power, giving Revolt Advanced a smooth, fast ride quality on variable riding surfaces.

Download PDF

Specs
SizesXS, S, M, ML, L, XL
ColorsConcrete
FrameAdvanced-Grade Composite, rack mount, disc
ForkAdvanced-Grade Composite, full-composite OverDrive steerer, rack mount, disc
ShockN/A
HandlebarGiant Contact XR D-Fuse, 31.8
StemGiant Contact
SeatpostGiant D-Fuse, composite
SaddleGiant Approach, UniClip accessory mount
PedalsN/A
ShiftersShimano GRX RX-600
Front DerailleurN/A
Rear DerailleurShimano GRX RX-810
BrakesShimano GRX RX400 hydraulic, 160mm
Brake LeversShimano GRX RX-600 hydraulic
CassetteShimano CS-M7000, 11-speed, 11x42
ChainKMC X11EL-1
CranksetShimano FC-RX600, 40t
Bottom BracketShimano, press fit
RimsGiant P-X2 Disc wheelset
HubsGiant P-X2 Disc wheelset, 12mm thru-axle
SpokesGiant CXR-2 WheelSystem, DBL technology
TiresGiant CrossCut AT 1, tubeless, 700x38c
ExtrasTubeless prepared
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

  • XS
      155 cm5’1”  to 166 cm5’5”
  • S
      159 cm5’3”  to 171 cm5’7”
  • M
      169 cm5’7”  to 181 cm5’11”
  • ML
      174 cm5’9”  to 186 cm6’1”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram
  XSSMMLLXL
Seat Tube Length (mm) (inch)43016.945017.747018.549019.351020.153020.9
Seat Tube Angle (degrees)74.0°73.5°73.5°73.0°73.0°73.0°
Top Tube Length (mm) (inch)53020.954021.355021.756522.257522.659023.2
Head Tube Length (mm) (inch)1254.91355.31505.91656.51807.11957.7
Head Tube Angle (degrees)70.5°70.5°70.5°71.0°71.0°71.0°
Fork Rake (mm) (inch)502502502502502502
Trail (mm) (inch)74.12.974.12.974.12.970.72.870.72.870.72.8
Wheelbase (mm) (inch)101439.9102040.2103140.6103640.8104641.2106241.8
Chain Stay Length (mm) (inch)42516.742516.742516.742516.742516.742516.7
Bottom Bracket Drop (mm) (inch)702.8702.8702.8702.8702.8702.8
Stack (mm) (inch)54821.65582257222.558823.160223.761624.3
Reach (mm) (inch)37314.737514.83811538515.239115.440215.8
Stand Over Height (mm) (inch)71928.373428.975229.676830.278630.980331.6
Handlebar Width (mm) (inch)42016.542016.544017.344017.346018.146018.1
Stem Length (mm) (inch)702.8803.1903.51003.91003.91003.9
Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
Wheel Size 700C700C700C700C700C700C

Technologies & Features

Advanced Composite Technology
OverDrive
D-Fuse Technology
Tubeless System
