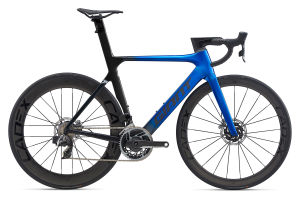

Propel Advanced SL 0 Disc Red

2020

$12,200

PLEASE NOTE: We cannot guarantee delivery by 12/24/24 on orders placed after 12/13/24. Orders may be delayed due to holiday schedules and shipping delays. Our support team will be unavailable starting 12/21/24-01/01/25. Any inquiries received during this time frame will be addressed starting 01/02/25, we apologize for any inconvenience.

If speed is your obsession, this is your bike. You train, you put in the work, and this aero machine does the rest. Built to give you an edge when it really counts—on the attack, in the sprint, going all out—it delivers energy-saving efficiency and race-winning aero performance.

Developed and proven by the fastest sprinters on the CCC Team WorldTour squad, the Propel Advanced SL Disc delivers ultimate speed through integrated aerodynamics. It’s engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. These tubes feature a “truncated ellipse” shape, which also result in a frame that is ultra-stiff and superlight. Disc-brake technology is integrated into the frameset with flat-mount calipers and thru-axles for optimal wheel stiffness and braking performance. For pro-level road performance and the ultimate aero advantage, the new Propel Advanced SL Disc puts you way ahead of the pack.

Key Performance Factors

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.

Total control

Integrated disc brakes deliver powerful stopping power and modulation for added control in variable weather. Thru-axles boost stiffness and improve overall handling and an integrated WheelSystem with a 65mm rear rim and 42mm front rim optimizes aerodynamics and control.

Unrivaled efficiency

Advanced SL-grade composite frameset features Giant’s highest performance materials and manufacturing processes for optimized stiffness and the lowest weight in its category.

Techs & Features

Advanced SL Composite Technology
AeroSystem Shaping Technology
RideSense
Tubeless System
OverDrive 2
PowerCore
360-View
Propel Advanced SL 0 Disc Red

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)68026.87102874029.177030.379031.182032.3
BSeat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°72.0°
CTop Tube Length (mm) (inch)51520.353521.155021.757022.458022.860523.8
DHead Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
EHead Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)702.8602.4572.2572.2572.2572.2
HWheelbase (mm) (inch)97238.397038.297638.499739.3100739.6102140.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)702.8682.7682.7652.6652.6652.6
KStack (mm) (inch)51720.452920.854521.556222.158122.959523.4
LReach (mm) (inch)37214.637814.938315.139815.740215.841216.2
MStand Over Height (mm) (inch)74429.376930.37873180731.882932.684333.2
NHandlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, ML, L, XL
  • Colors
    Gloss Electric Blue / Gloss Metallic Black
  • Frame
    Advanced SL-Grade Composite, integrated seatpost, disc
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SLR Aero
  • Stem
    Giant Contact SLR Aero
  • Seatpost
    integrated design
  • Saddle
    Giant Contact SLR (forward)
  • Pedals
    N/A
  • Shifters
    SRAM RED eTap AXS
  • Front Derailleur
    SRAM RED eTap AXS
  • Rear Derailleur
    SRAM RED eTap AXS
  • Brakes
    SRAM RED eTap AXS hydraulic
  • Brake Levers
    SRAM RED eTap AXS hydraulic
  • Cassette
    SRAM RED, 12-speed, 10x28
  • Chain
    SRAM RED D1
  • Crankset
    SRAM RED D1 DUB, 35/48with Quarq DZero power meter
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    CADEX Aero Disc Composite WheelSystem (F:42mm, R:65mm)
  • Hubs
    CADEX Aero Disc WheelSystem, 12mm thru-axle
  • Spokes
    CADEX Aero Disc Composite WheelSystem
  • Tires
    CADEX Race 25, tubeless,700x25, folding
  • Extras
    RideSense Bluetooth,race axle
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
