Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
$5,815
What is my size? | Why pick up in store?
Giant believes the Giant/Liv/Momentum retailer is an essential part of the cycling foundation. Competent bicycle retailers make the difference in creating a cyclist for life. Our family of retailers is ready to communicate our mutual commitment to the cycling lifestyle and its lifelong health benefits. Our promise to you; we are committed to your riding experience, there is no better way to service, fit, or impact the cycling experience with such emotion and sustainability than through an energized Giant/Liv/Momentum retailer.
Thank you for supporting a local business. Let’s ride!
All the best,
John ‘JT’ Thompson
General Manager – Giant Bicycle USA
THE FUTURE OF AERO ROAD. LIGHTWEIGHT, STIFF AND NEARLY INVISIBLE TO THE WIND, PLUS THE ADDED CONTROL OF Disc BRAKES.

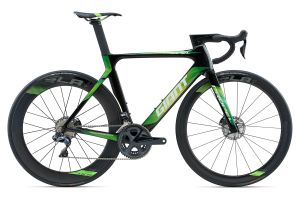

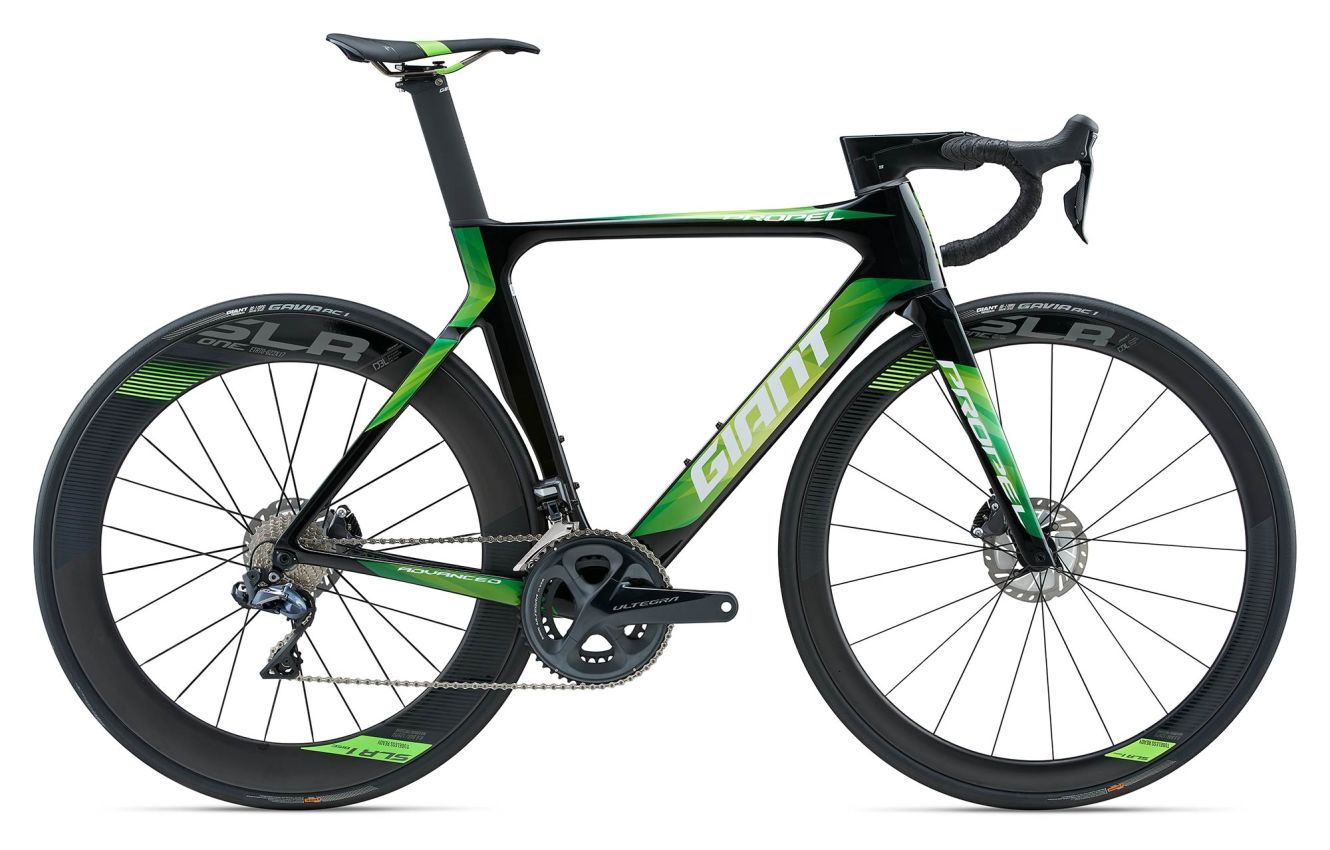

Meticulously developed for best-in-class aero road performance, this razor-sharp road racer offers a true advantage for sprinting and solo riding. And new this year, it also incorporates the superior control of disc brakes. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff, with a sharp, responsive ride quality. Its disc brakes are completely integrated within the frame using flat-mount calipers and thru-axles designed to optimize the technology. From sprints to solo attacks, cornering and descents, the new Propel Advanced Pro Disc helps you slice through the wind and gain an advantage on the competition.
Extensive CFD analysis and dynamic wind-tunnel testing were used to optimize every frame tube and angle in a process called AeroSystem Shaping technology. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff, with a sharp, responsive ride quality. Disc brakes are integrated with the frame using flat-mount calipers, thru-axles and an asymmetric fork to maximize aerodynamic performance. From sprints to solo attacks, cornering and descents, the new Propel Advanced Pro Disc helps you slice through the wind and gain an advantage on the competition. Here's a look at its key technologies/
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
167 cm5’6” 173 cm5’8” 178 cm5’10” 183 cm6’0” 188 cm6’2”
| XS | S | M | M/L | L | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 46518.3 | 50019.7 | 52020.5 | 54521.5 | 57522.6 |
| B | Seat Tube Angle (degrees) | 74.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) (inch) | 51520.3 | 53521.1 | 55021.7 | 57022.4 | 58022.8 |
| D | Head Tube Length (mm) (inch) | 1204.7 | 1305.1 | 1455.7 | 1656.5 | 1857.3 |
| E | Head Tube Angle (degrees) | 71.0° | 72.5° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| G | Trail (mm) (inch) | 702.8 | 602.4 | 572.2 | 572.2 | 572.2 |
| H | Wheelbase (mm) (inch) | 97238.3 | 97038.2 | 97638.4 | 99739.3 | 100739.6 |
| I | Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| J | Bottom Bracket Drop (mm) (inch) | 702.8 | 67.52.6 | 67.52.6 | 652.6 | 652.6 |
| K | Stack (mm) (inch) | 51720.4 | 52920.8 | 54521.5 | 56222.1 | 58122.9 |
| L | Reach (mm) (inch) | 37214.6 | 37814.9 | 38315.1 | 39815.7 | 40215.8 |
| M | Stand Over Height (mm) (inch) | 74429.3 | 76930.3 | 78731 | 80731.8 | 82932.6 |
| N | Handlebar Width (mm) (inch) | 40015.7 | 40015.7 | 42016.5 | 42016.5 | 44017.3 |
| O | Stem Length (mm) (inch) | 803.1 | 903.5 | 1003.9 | 1104.3 | 1104.3 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Giant’s chainstay integrated, wireless data transmitter. The removable transmitter sends wheel speed and cadence information directly to any ANT+ compatible computer.
This full-composite, lightweight and highly aerodynamic seatpost is engineered specifically for performance road riding.
All specifications and prices listed are subject to change without notice.
