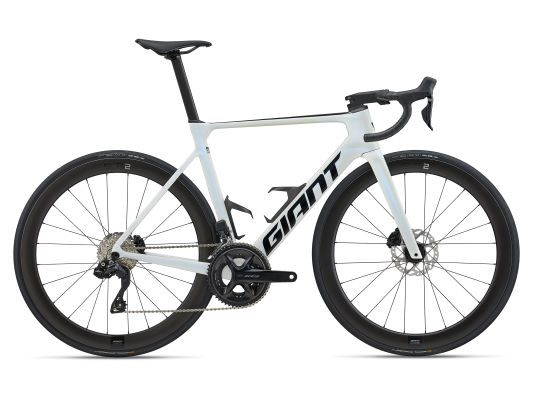

Propel Advanced 1

$5,500

Maximize your watts during sprints, breakaways and solo attacks. This aero road machine is built to give you a real advantage against the wind. Because small gains lead to big wins.

Key Performance Factors

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and all-new Contact SL Aero cockpit produce superior aero performance.

Easier adjustability

All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced-grade composite frame and hybrid alloy/composite fork deliver optimal stiffness and weight savings. The result is an even greater stiffness-to-weight advantage.

Techs & Features

Advanced Composite Technology
AeroSystem Shaping Technology
OverDrive Aero
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)46518.350019.752020.554521.557522.659523.4
BSeat Tube Angle (degrees)74.5°74.0°73.5°73.0°73.0°72.5°
CTop Tube Length (mm) (inch)52020.553521.155021.756522.258022.860023.6
DHead Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
EHead Tube Angle (degrees)71.0°72.3°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)70.52.862.52.457.82.257.82.257.82.257.82.2
HWheelbase (mm) (inch)97638.497738.598038.699139100639.6102040.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)722.8702.8702.8672.6672.6672.6
KStack (mm) (inch)51720.452820.854521.556222.158122.959623.5
LReach (mm) (inch)37614.838315.138815.339315.540215.841216.2
MStand Over Height (mm) (inch)72228.475329.677030.379431.382132.383432.8
NHandlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Blue Dragonfly, Illusion White
  • Frame
    Advanced-Grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SL Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Grips
    Stratus Lite 2.0
  • Stem
    Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Saddle
    Giant Fleet SL
  • Shifters
    Shimano 105 Di2
  • Front Derailleur
    Shimano 105 Di2
  • Rear Derailleur
    Shimano 105 Di2
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano RT-70 rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano 105 Di2 hydraulic
  • Cassette
    Shimano 105, 12-speed, 11x34
  • Chain
    KMC X12L-1
  • Crankset
    Shimano 105 Di2, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant SLR 2 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
  • Hubs
    [F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Gavia Course 1, tubeless,700x25c (28mm), folding
  • Extras
    computer mount, water bottle cages, tubeless prepared, 32mm max tire size
  • Max Tire Clearance
    32mm
  • Weight
    8.42 kg (18 lbs 09 oz) - Size (XL)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
