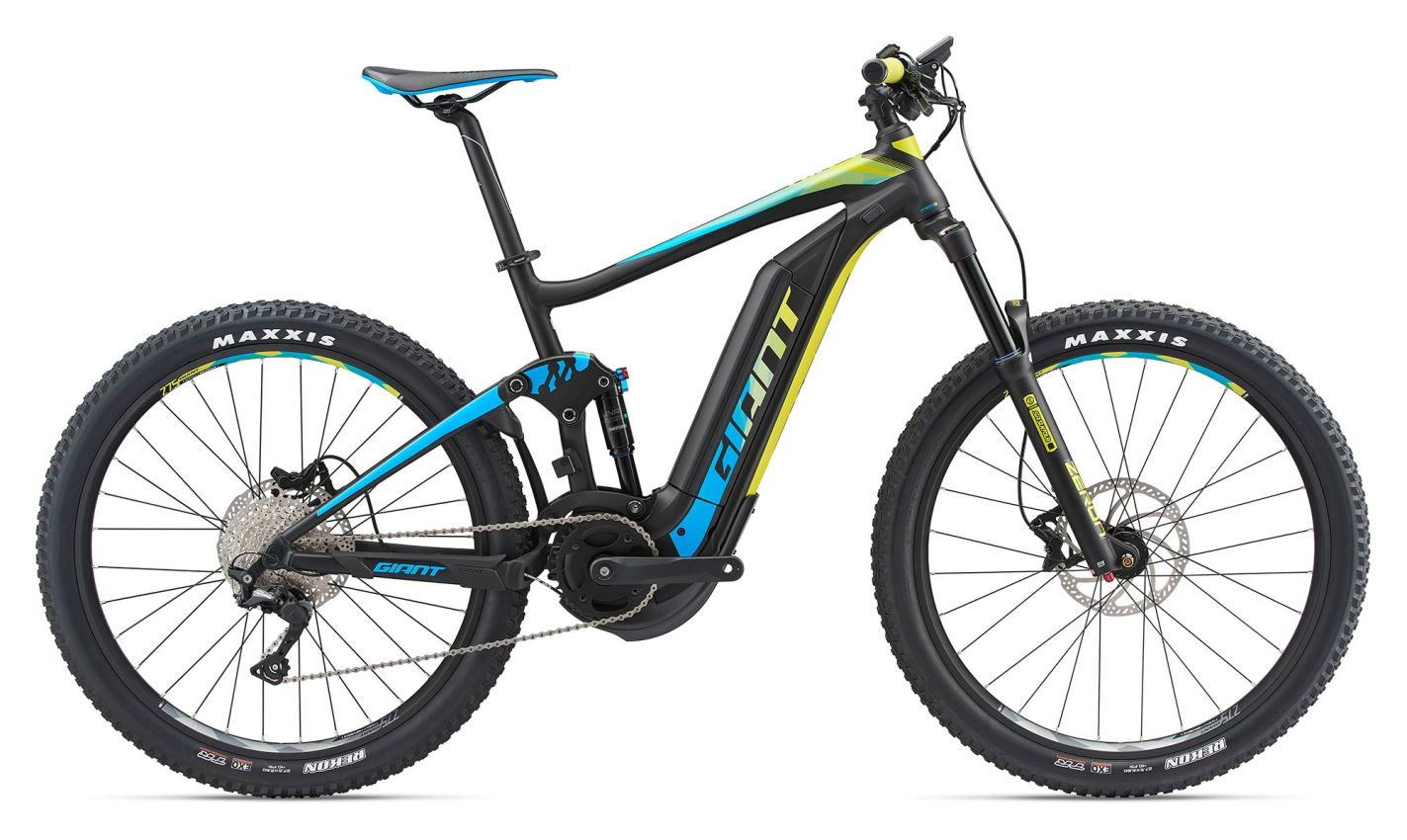

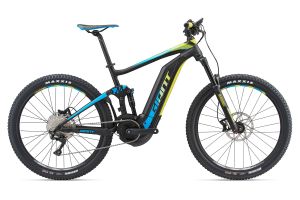

Full-E+ 3

2018

$3,570

Why pick up in store?

Share

By a professional mechanic

Original Owners

Within 14 Days

CONQUER TOUGH CLIMBS. ENJOY LONG DESCENTS. EXPERIENCE ADVENTURE LIKE NEVER BEFORE WITH THIS FULL-SUSPENSION E-BIKE.

Save some energy on the climbs and enjoy big mountain descents with this versatile full-suspension E-bike. The frame is engineered with lightweight and strong ALUXX SL aluminum that features 140mm of smooth Maestro rear suspension and a SyncDrive Sport motor that’s powered by Yamaha. With 80Nm or torque, you’ll float up tough climbs. And with a long-lasting 400Wh EnergyPak, you can push yourself to new limits. Proven off-road geometry, 27.5 wheels and Boost rear hub spacing make it a confident and capable adventure companion.

  • Giant SyncDrive Sport, powerfull 80Nm central motor
  • Giant EnergyPak400 lithium-ion battery
  • SR Suntour ZERON 35 LO-R 140mm suspension fork
  • Shimano Deore 1x10sp speed drivetrain
  • Hydraulic 4-piston disc brakes, 200mm rotors
  • Color: Black / Lime / Cyan

Techs & Features

ALUXX SL Aluminum Technology
Maestro Suspension Technology
Hybrid Cycling Technology
SyncDrive Sport
RideControl Charge
EnergyPak Plus

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 182 cm6’0”
  • L
      182 cm6’0”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 196 cm6’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)4311745017.750019.753020.9
BSeat Tube Angle (degrees)73.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)56522.259023.26102463525
DHead Tube Length (mm) (inch)1254.91254.91405.51606.3
EHead Tube Angle (degrees)67.0°67.0°67.0°67.0°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)1094.31094.31094.31094.3
HWheelbase (mm) (inch)114345116846119046.9121747.9
IChain Stay Length (mm) (inch)46318.246318.246318.246318.2
JBottom Bracket Drop (mm) (inch)120.5120.5120.5120.5
KStack (mm) (inch)610246102462424.664225.3
LReach (mm) (inch)37814.940315.941916.543817.2
MStand Over Height (mm) (inch)76830.276930.380631.783232.8
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)502602.4602.4702.8
PCrank Length (mm) (inch)1706.71706.71706.71706.7
QWheel Size 27.5+27.5+27.5+27.5+
Specs
  • Motor

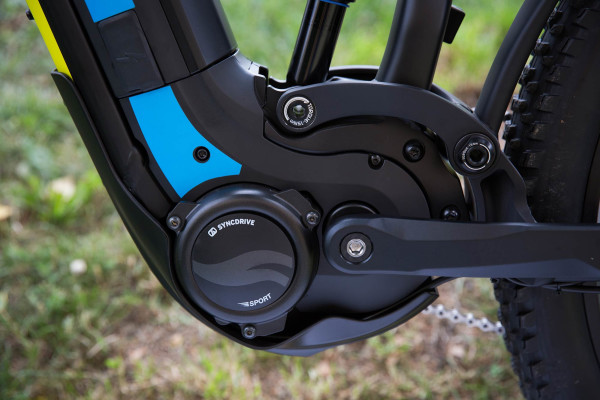

    Giant SyncDrive Sport, 80Nm, Powered by Yamaha
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display

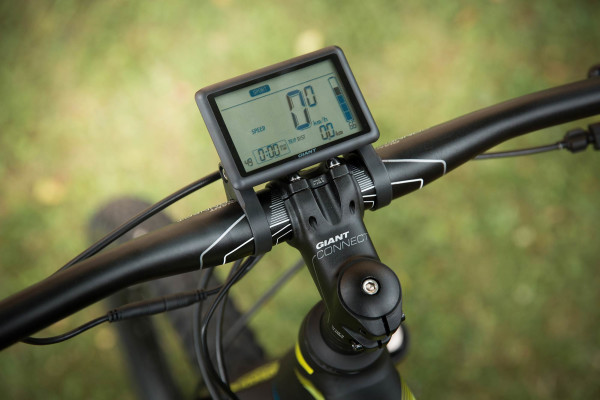

    Giant RideControl Charge, grip launch control with walk assist, mini USB charger
  • Battery
    Giant EnergyPak400, 36V, 11.3Ah, Rechargeable Lithium-Ion
  • Sizes
    S, M, L, XL
  • Colors
    Black/Yellow/Blue
  • Frame
    ALUXX SL-grade aluminum
  • Fork

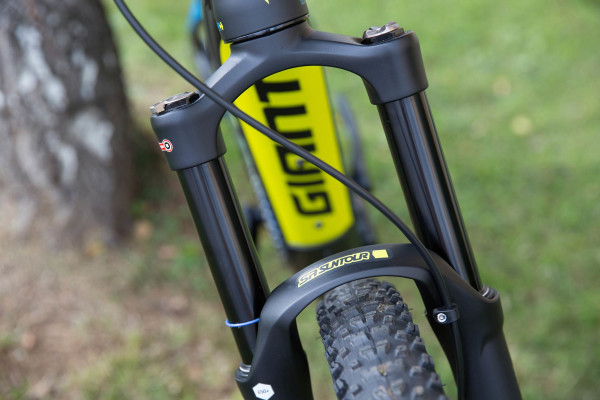

    SR Suntour ZERON 34 LO-R 27.5+, OverDrive, Boost, Lockout, 140mm travel
  • Shock
    SR Suntour UnAir LO-R, Lockout, Trunnion mount, custom tuned
  • Handlebar
    Giant Connect TR, 31.8mm
  • Stem
    Giant Connect
  • Seatpost
    Giant Connect, 30.9
  • Saddle
    Giant Contact Neutral
  • Pedals
    Alloy Platform
  • Shifters
    Shimano Deore
  • Front Derailleur
    N/A
  • Rear Derailleur

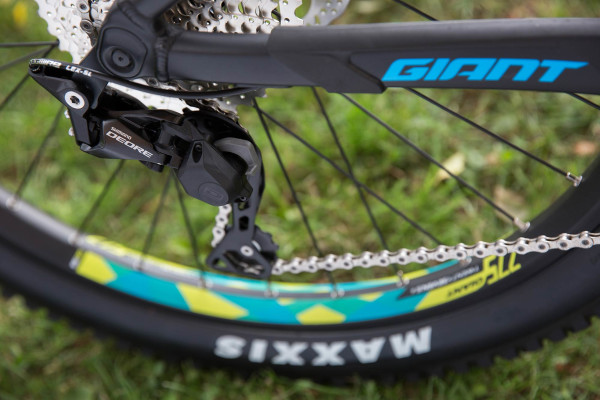

    Shimano new Deore shadow+
  • Brakes
    Tektro Orion 4P HD-M745 4-piston, 203mm Disc
  • Brake Levers
    Tektro Orion 4P HD-M745 hydraulic disc
  • Cassette
    SunRace CS-MS2 11x42, 10-Speed
  • Chain
    KMC X.10e, e-bike optimized
  • Crankset
    Samox AONE, 38T
  • Bottom Bracket
    N/A
  • Rims
    Giant eXX2 Disc, Tubeless, e-bike optimized
  • Hubs
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
  • Spokes
    Stainless Steel, [F] 14g [R] 13g
  • Tires
    Maxxis Rekon, 27.5x2.6, foldable, Double Compound, Exo protect, Tubeless
  • Extras
    Giant EnergyPak 3A charger
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
