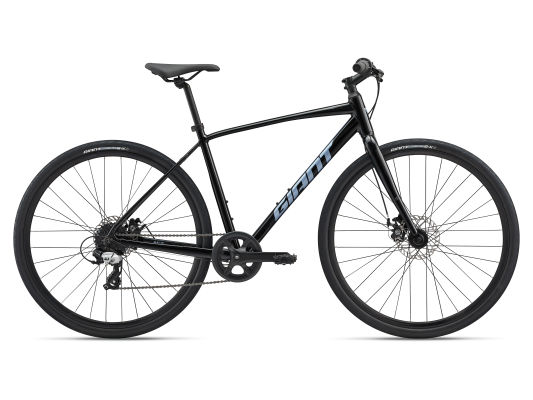

Escape Disc 4

$710

Similar Products

Best For: City & Hybrid

Escape Disc 2

$850

Commute to work, ride to class, find new adventures in your daily routine. This flat-bar all-rounder will get your legs spinning and inspire you to be active every day.

Key Performance Factors

Balanced and efficient

Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.

Versatile and capable

Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.

Rugged reliability

Puncture-resistant tires and integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.

Techs & Features

ALUXX Aluminum Technology
OverDrive

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 180 cm5’11”
  • L
      180 cm5’11”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Seat Tube Length (mm) (inch)43016.948519.153521.158523
B Seat Tube Angle (degrees)73.5°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)56522.258022.859523.461024
D Head Tube Length (mm) (inch)1154.51305.11606.31907.5
E Head Tube Angle (degrees)70.0°71.0°71.0°71.0°
F Fork Rake (mm) (inch)502502502502
G Trail (mm) (inch)76369.42.769.42.769.42.7
H Wheelbase (mm) (inch)107442.3107542.3109143110743.6
I Chain Stay Length (mm) (inch)44517.544517.544517.544517.5
J Bottom Bracket Drop (mm) (inch)602.4602.4602.4602.4
K Stack (mm) (inch)53821.255621.95852361324.1
L Reach (mm) (inch)4061641016.141616.442316.7
M Stand Over Height (mm) (inch)71428.175429.779931.584233.1
N Handlebar Width (mm) (inch)64025.264025.269027.269027.2
O Stem Length (mm) (inch)903.5903.51003.91003.9
P Crank Length (mm) (inch)1706.71706.71756.91756.9
Q Wheel Size 700C700C700C700C
Specs
  • Sizes
    S, M, L, XL
  • Colors
    Mars Dust, Black
  • Frame
    ALUXX-grade aluminum, disc
  • Fork
    high-tensile steel, rack mount, disc
  • Shock
    N/A
  • Handlebar
    Giant Sport XC, 25.4mm XS:60cm, S:64cm, M:64cm, L:68cm, XL:68cm
  • Grips
    Giant Sole-O
  • Stem
    Giant Sport, 15-degree, 25.4mm XS:75mm, S:90mm, M:90mm, L:90mm, XL:105mm
  • Seatpost
    Giant D-Fuse, alloy XS:300mm, S:300mm, M:350mm, L:350mm, XL:350mm
  • Saddle
    Giant ErgoContact
  • Pedals
    Giant Urban Fitness
  • Shifters
    Shimano Tourney TX, 1x8
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Tourney TX
  • Brakes
    Tektro mechanical, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Alloy
  • Cassette
    Shimano CS-HG200-8, 12x32
  • Chain
    KMC Z8.3
  • Crankset
    forged alloy, 40t XS:170mm, S:170mm, M:170mm, L:172.5mm, XL:175mm
  • Bottom Bracket
    cartridge
  • Rims
    Giant double wall aluminum
  • Hubs
    alloy, 32h
  • Spokes
    stainless, 14g
  • Tires
    Giant S-X3, puncture protect, 700x38c
  • Extras
    45mm max tire size
  • Max Tire Clearance
    45mm
  • Weight
    11.24 kg (24 lbs 12 oz) - Size (S)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
