Dirt-E+ 2

2018

$2,600

What is my size?

Why pick up in store?

Share

On All Bicycles

Within 14 Days

By a professional mechanic

GET READY TO EXPERIENCE TRAIL RIDING LIKE NEVER BEFORE. MORE POWER, MORE CONTROL ON ROUGH ROADS, PATHS OR SINGLETRACK.

The all-new Dirt-E+ lets you tap into an added boost of power to help you tackle the toughest terrain. The compact SyncDrive Sport motor delivers a smooth and instantaneous boost that blends seamlessly with your own pedaling power—so you can ride stronger and longer, even on steep and challenging trails. With its stable, XC-oriented frame and integrated EnergyPak battery, the Dirt-E+ gives you the power to conquer mountains.

  • Giant SyncDrive Sport, 20mph, 80Nm torque, powered by Yamaha
  • Giant PedalPlus 4-sensor technology
  • Giant EnergyPak 500
  • ALUXX SL-grade aluminum frame
  • Shimano 2x9-speed shifting with Shimano hydraulic disc brakes

Highlights

With its stable, XC-oriented frame made from lightweight ALUXX SL aluminum and an integrated EnergyPak battery to power the SyncDrive motor, the Dirt-E+ gives you the power to conquer mountains.

Dirt-E+ with interactive tooltips

Techs & Features

ALUXX SL Aluminum Technology
Hybrid Cycling Technology
SyncDrive Sport
EnergyPak Plus

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 180 cm5’11”
  • L
      180 cm5’11”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 196 cm6’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)40515.945517.950519.953521.1
BSeat Tube Angle (degrees)73.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)57022.459023.26102463024.8
DHead Tube Length (mm) (inch)1355.31355.31556.11706.7
EHead Tube Angle (degrees)69.5°69.5°69.5°69.5°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)913.6913.6913.6913.6
HWheelbase (mm) (inch)111243.8113244.6115345.4117446.2
IChain Stay Length (mm) (inch)45517.945517.945517.945517.9
JBottom Bracket Drop (mm) (inch)351.4351.4351.4351.4
KStack (mm) (inch)60523.860523.862324.563825.1
LReach (mm) (inch)38515.240515.941916.543517.1
MStand Over Height (mm) (inch)74529.377430.580731.882832.6
NHandlebar Width (mm) (inch)73028.773028.773028.773028.7
OStem Length (mm) (inch)602.4702.8803.1903.5
PCrank Length (mm) (inch)1706.71706.71706.71706.7
QWheel Size 27.5"27.5"27.5"27.5"
Specs

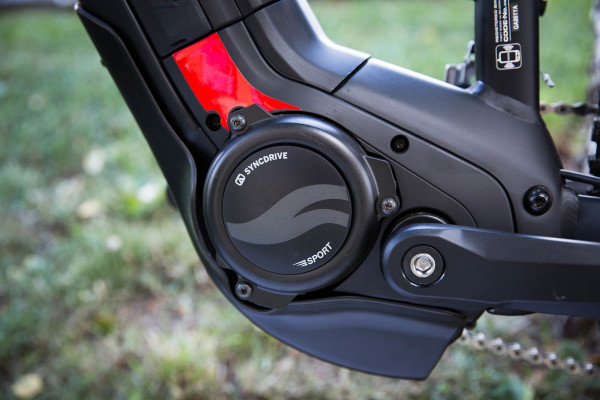

  • Motor
    Giant SyncDrive Sport, 80Nm, Powered by Yamaha
  • Sensors
    Giant PedalPlus 4-sensor technology

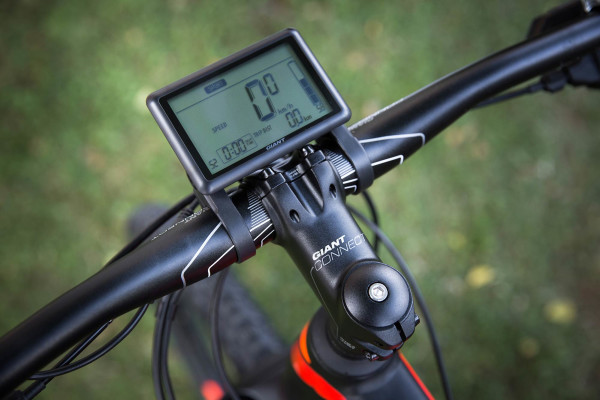

  • Display
    Giant RideControl Charge, grip launch control with walk assist, mini USB charger
  • Battery
    Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
  • Sizes
    S, M, L, XL
  • Colors
    Black/Orange/Red
  • Frame
    ALUXX SL-grade aluminum

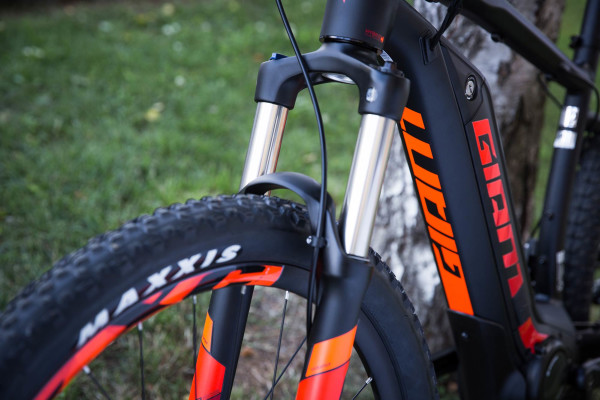

  • Fork
    SR Suntour XCR 32 LO-R, OverDrive, lockout, 120mm travel
  • Shock
    N/A
  • Handlebar
    Giant Connect Trail, 31.8mm
  • Stem
    Giant Connect
  • Seatpost
    Giant Connect, 30.9
  • Saddle
    Giant Contact Neutral
  • Pedals
    Alloy Platform
  • Shifters
    Shimano Acera
  • Front Derailleur
    Shimano Deore

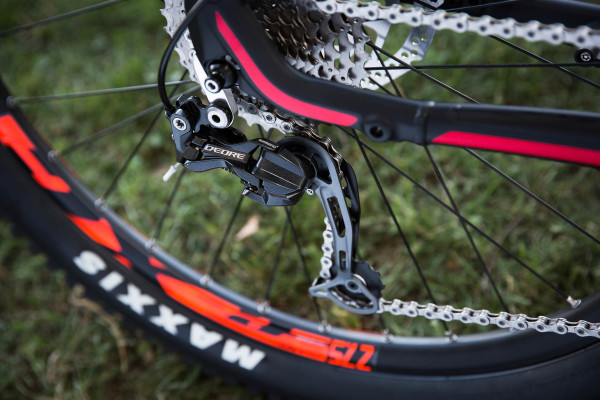

  • Rear Derailleur
    Shimano Deore Shadow
  • Brakes
    Shimano M315, hydraulic disc, 180mm
  • Brake Levers
    Shimano M315
  • Cassette
    Shimano HG 201-9 11x36, 9-Speed
  • Chain
    KMC X.9e, e-bike optimized

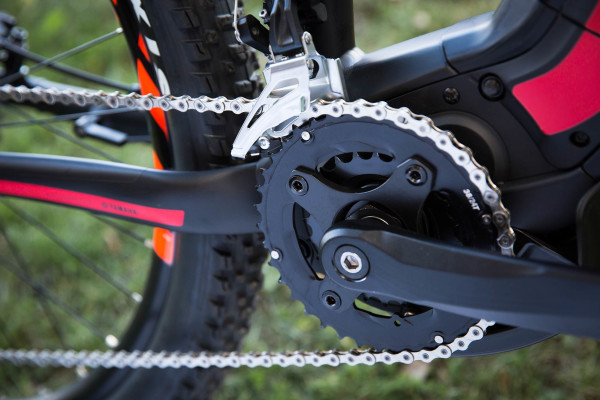

  • Crankset
    FSA, 24/38
  • Bottom Bracket
    N/A
  • Rims
    Giant eX2 Disc, Tubeless, e-bike optimized
  • Hubs
    [F] Giant eTracker 15mm Thru-Axle, sealed bearings, 28h,[R]Giant eTracker 135mm QR, e-bike optimized, 32h
  • Spokes
    Stainless Steel, [F] 14g [R] 13g
  • Tires
    Maxxis Ardent, 27.5x2.4, EXO, 60 TPI, TLR
  • Extras
    Giant EnergyPak 3A charger
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
