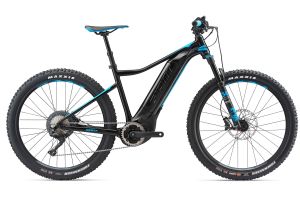

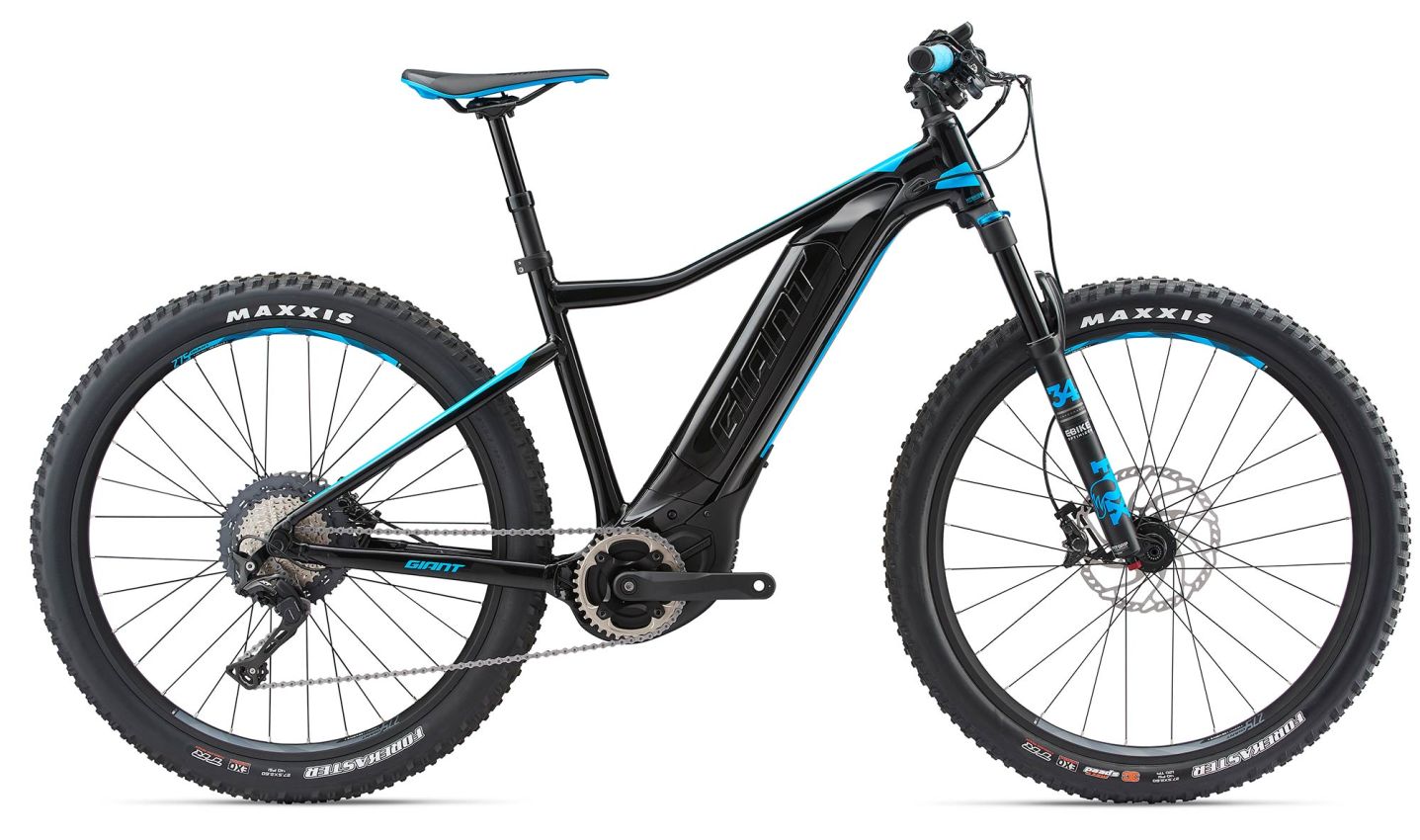

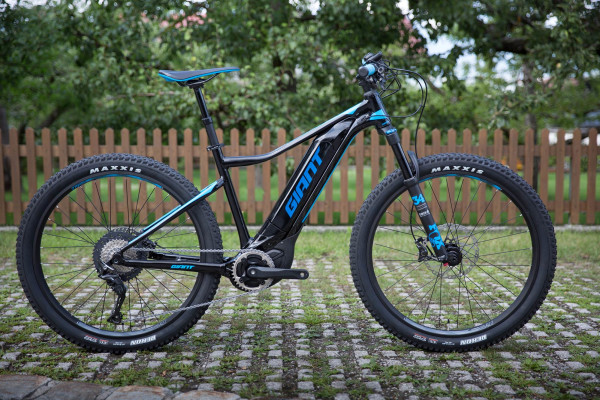

Dirt-E+ 0 Pro

2018

$4,340

By a professional mechanic

Original Owners

Within 14 Days

GET READY TO EXPERIENCE TRAIL RIDING LIKE NEVER BEFORE. MORE POWER, MORE CONTROL ON ROUGH ROADS, PATHS OR SINGLETRACK.

The all-new Dirt-E+ Pro lets you tap into an added boost of power to help you tackle the toughest terrain. The compact SyncDrive Sport motor delivers a smooth and instantaneous boost that blends seamlessly with your own pedaling power—so you can ride stronger and longer, even on steep and challenging trails. With its stable, XC-oriented frame and integrated EnergyPak battery, the Dirt-E+ Pro gives you the power to conquer mountains.

  • Giant SyncDrive Pro, 20mph, 80Nm torque, powered by Yamaha
  • Giant PedalPlus 4-sensor technology
  • Giant EnergyPak 500
  • ALUXX SL-grade aluminum frame
  • Shimano 1x11-speed shifting with Shimano XT hydraulic disc brakes

Techs & Features

ALUXX SL Aluminum Technology
E+ System
SyncDrive
RideControl EVO

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Seat Tube Length (mm) (inch)40515.945517.950519.953521.1
B Seat Tube Angle (degrees)73.0°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)57522.659523.461524.263525
D Head Tube Length (mm) (inch)1104.31154.51355.31505.9
E Head Tube Angle (degrees)68.0°68.0°68.0°68.0°
F Fork Rake (mm) (inch)461.8461.8461.8461.8
G Trail (mm) (inch)993.9993.9993.9993.9
H Wheelbase (mm) (inch)113344.6115445.4117646.3119747.1
I Chain Stay Length (mm) (inch)47018.547018.547018.547018.5
J Bottom Bracket Drop (mm) (inch)451.8451.8451.8451.8
K Stack (mm) (inch)59923.660423.862324.563725.1
L Reach (mm) (inch)39115.441016.142416.744017.3
M Stand Over Height (mm) (inch)75329.676029.97873179131.1
N Handlebar Width (mm) (inch)78030.778030.778030.778030.7
O Stem Length (mm) (inch)502602.4602.4702.8
P Crank Length (mm) (inch)1706.71706.71706.71706.7
Q Wheel Size 27.5+27.5+27.5+27.5+
Specs

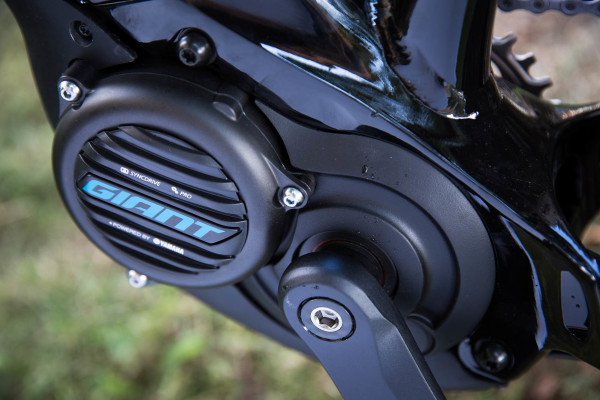

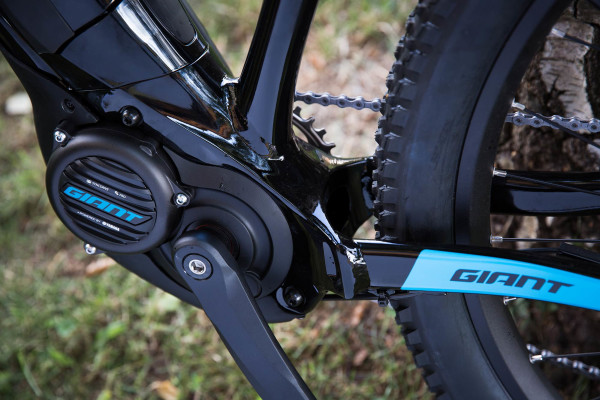

  • Motor
    Giant SyncDrive Pro, 80Nm, Powered by Yamaha
  • Sensors
    Giant PedalPlus 4-sensor technology

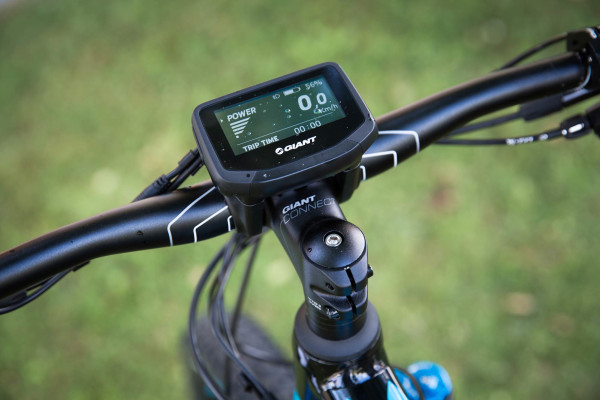

  • Display
    Giant RideControl EVO, grip launch control with walk assist, mini USB charger
  • Battery
    Giant EnergyPak500, 36V, 13.8Ah, Rechargeable Lithium-Ion
  • Sizes
    XS, S, M, L, XL
  • Colors
    Black/Blue
  • Frame
    ALUXX SL-grade aluminum
  • Fork

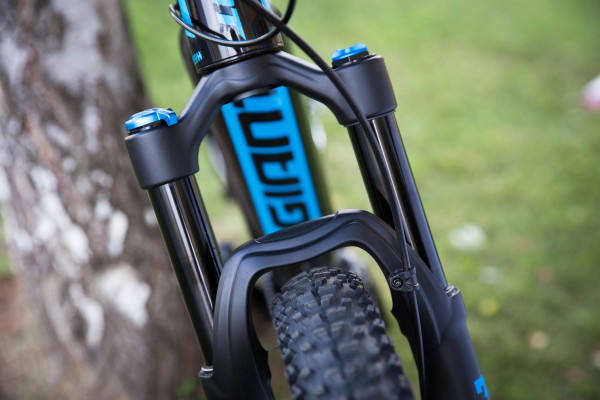

    Fox 34 Float Performance, EVOL Grip Damper, 2-position lever, e-bike optimized, 120mm travel
  • Shock
    N/A
  • Handlebar
    Giant Connect Trail, 31.8mm
  • Stem
    Giant Connect
  • Seatpost
    Giant Contact Switch, remote height adjust, 30.9
  • Saddle
    Giant Contact Neutral
  • Pedals
    Alloy Platform
  • Shifters
    Shimano DXT
  • Front Derailleur
    N/A

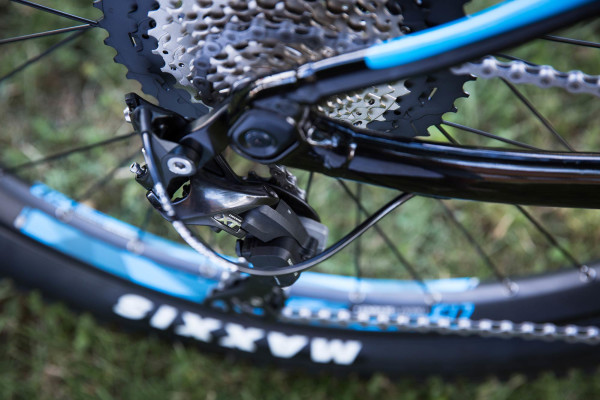

  • Rear Derailleur
    Shimano XT Shadow+
  • Brakes
    Shimano XT, hydraulic disc, [F] 200mm, [R] 180mm
  • Brake Levers
    Shimano XT, i-Spec II
  • Cassette
    Shimano HG-M7000 11x46, 11-Speed
  • Chain
    KMC X.11e, EcoProteq, e-bike specific

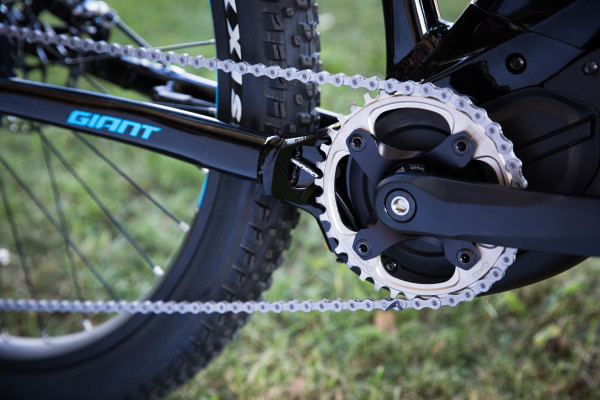

  • Crankset
    Praxis Works, 36T
  • Bottom Bracket
    N/A
  • Rims
    Giant eXX2 Disc, Tubeless, e-bike optimized
  • Hubs
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
  • Spokes
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt[F] 110x15mm, 28h,[R] 148x12mm Thru-axle, e-bike optimized, 32h
  • Tires
    Maxxis Forekaster, 27.5x2.6, foldable, Exo protect, Tubeless Ready
  • Extras
    Giant EnergyPak 3A charger
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
