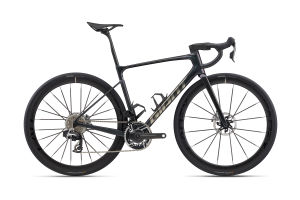

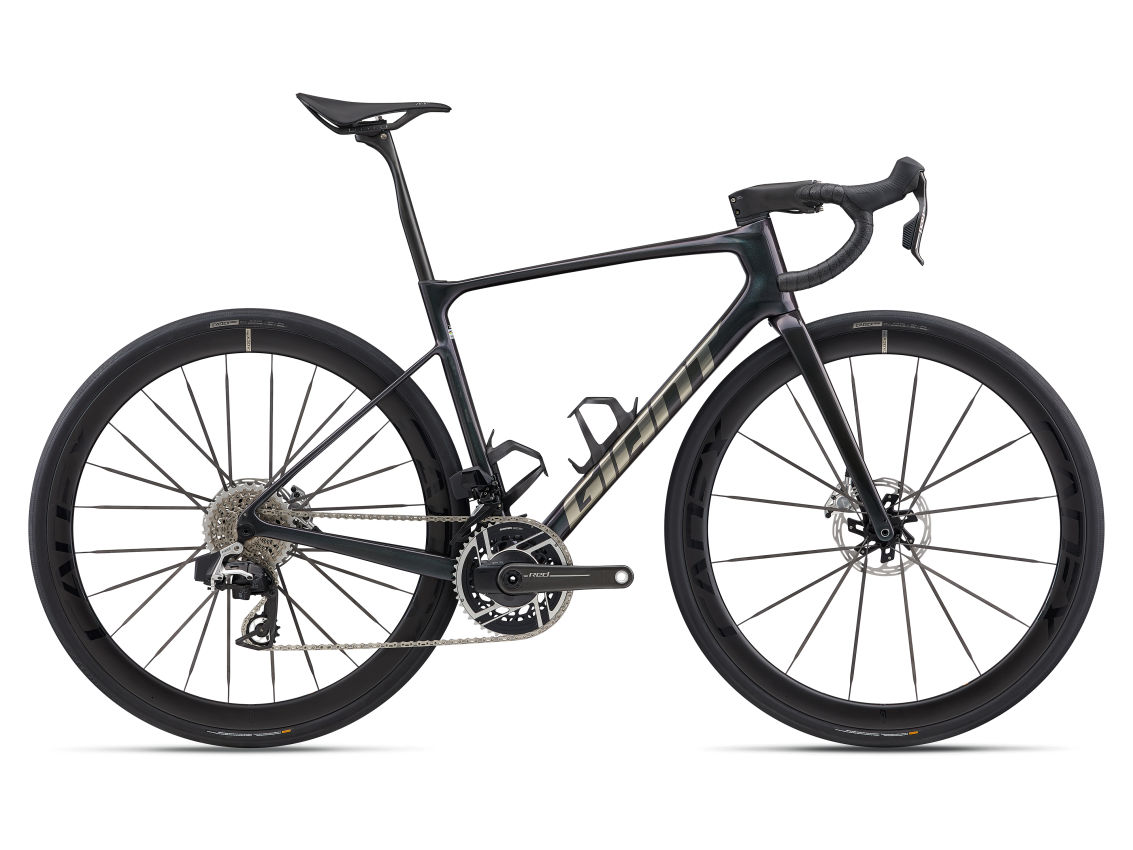

Defy Advanced SL 0

$13,000

Go long. Go fast. Superlight and silky smooth, the flagship series of the new Defy range is back to reclaim its title as the pinnacle of endurance road. It’s the perfect choice for the sportive or gran fondo that’s circled on your calendar.

Key Performance Factors

Functional simplicity

Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.

Engineered compliance

Advanced SL-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.

Total control

A new Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimized for high-volume tubeless tires (up to 38mm), and a 40mm rim depth offers stable, predictable handling in crosswinds.

Techs & Features

Advanced SL Composite Technology
Compact Road Design
D-Fuse Technology
OverDrive Aero
PowerCore
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      160 cm5’3”  to 168 cm5’6”
  • S
      166 cm5’5”  to 174 cm5’9”
  • M
      172 cm5’8”  to 180 cm5’11”
  • ML
      178 cm5’10”  to 186 cm6’1”
  • L
      184 cm6’0”  to 192 cm6’4”
  • XL
      190 cm6’3”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMMLLXL
A Seat Tube Length (mm) (inch)41016.144517.548018.951520.353521.156522.2
B Seat Tube Angle (degrees)74.5°74.0°73.5°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)51520.353020.954521.55602257522.659523.4
D Head Tube Length (mm) (inch)1254.91355.31505.91756.91957.72158.5
E Head Tube Angle (degrees)70.5°71.8°72.5°72.5°72.5°72.5°
F Fork Rake (mm) (inch)502502502502502502
G Trail (mm) (inch)71.62.863.42.558.62.358.62.358.62.358.62.3
H Wheelbase (mm) (inch)99539.299439.199839.3101039.8102540.4104040.9
I Chain Stay Length (mm) (inch)42016.542016.542016.542016.542016.542016.5
J Bottom Bracket Drop (mm) (inch)753753753702.8702.8702.8
K Stack (mm) (inch)52720.754121.35582257722.759623.561524.2
L Reach (mm) (inch)36914.537514.83801538415.139315.540215.8
M Stand Over Height (mm) (inch)70527.873328.97623079631.38143284133.1
N Handlebar Width (mm) (inch)40415.940415.942416.742416.744417.544417.5
O Stem Length (mm) (inch)803.1903.51003.91003.91104.31104.3
P Crank Length (mm) (inch)1656.51656.51706.71706.7172.56.8172.56.8
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Arctic Light/Chrome
  • Frame
    Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Handlebar
    Giant Contact SLR D-Fuse XS:404/380mm, S:404/380mm, M:424/400mm, M/L:424/400mm, L:444/420mm, XL:444/420mm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
  • Seatpost
    Giant D-Fuse SLR, composite, -5/+15mm offset
  • Saddle
    CADEX AMP
  • Shifters
    SRAM RED AXS E1
  • Front Derailleur
    SRAM RED AXS E1
  • Rear Derailleur
    SRAM RED AXS E1
  • Brakes
    SRAM RED AXS E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM RED AXS hydraulic
  • Cassette
    SRAM RED XG-1290, 12-speed, 10x36
  • Chain
    SRAM RED E1
  • Crankset
    SRAM RED E1 DUB, 33/46 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
  • Bottom Bracket
    SRAM DUB ceramic, press fit
  • Rims
    CADEX Ultra 40 WheelSystem, [F]40mm, [R]40mm
  • Hubs
    [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C48 Aero Hub, 48T ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    CADEX Super Aero Carbon Spoke
  • Tires
    CADEX Classics, tubeless, 700x32c (33.5mm), folding
  • Extras
    computer mount, fender mount, water bottle cages, tubeless prepared, 40mm max tire size
  • Max Tire Clearance
    40mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
