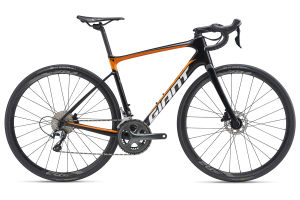

Choose the longer route. Climb higher mountains. This all-new endurance road bike is purpose-built to help you tackle long-distance road rides in all types of conditions. It’s smooth, it’s efficient, and it’s fast.
Ride farther and faster with an all-new composite frameset that’s engineered with endurance geometry and built-in compliance. Handcrafted with Advanced-grade composite material, it’s engineered with tube shapes that are optimized to absorb road shocks and vibrations. And the frame is still stiff in all the ways that matter—for pedaling efficiency as well as steering and cornering precision. It’s made with a specific carbon layup to give it just the right feel. And for added control, it features integrated disc brakes with flat mounts and 12mm thru-axles. The D-Fuse seatpost and handlebar system also help reduce road vibrations, adding to its smooth, compliant feel on the road.
Advanced Composite frame is specifically engineered for endurance road riding, delivering a smoother ride quality and less fatigue on long rides. The D-Fuse seatpost and handlebar system works seamlessly with the frame to absorb road shocks and vibrations.
Seamless disc brake integration including flat mounts and 12mm front and rear thru-axles produces more consistent braking power for better control, even in wet weather and rough roads.
Endurance road geometry, added tire clearance (up to 32c) and disc-brake integration allow you to tackle a variety of roads and conditions, from smooth pavement to rugged backroads and mountain passes.
Ride farther and faster with an all-new composite frameset featuring endurance geometry and built-in compliance. Handcrafted with Advanced-grade composite material, it’s engineered with tube shapes that are optimized to absorb road shocks and vibrations. And the frame is still stiff in all the ways that matter—for pedaling efficiency as well as steering and cornering precision. It’s made with a specific carbon layup to give it just the right feel. And for added control, it features integrated disc brakes with flat mounts and 12mm thru-axles. The D-Fuse SL composite seatpost and Contact SL D-Fuse aluminum handlebar system also help reduce road vibrations, adding to its smooth, compliant feel on the road. The oversized and tapered OverDrive full-composite steerer tube aids cornering precision, while the PowerCore bottom bracket (dropped 5mm from the previous generation Defy to compensate for larger tires) delivers precise handling and class-leading pedaling efficiency.
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
175 cm5’9” 181 cm5’11” 187 cm6’2” 193 cm6’4” 199 cm6’6”
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| Seat Tube Length (mm) (inch) | 44517.5 | 48018.9 | 51520.3 | 53521.1 | 56522.2 | |
| Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° | |
| Top Tube Length (mm) (inch) | 53020.9 | 54521.5 | 56022 | 57522.6 | 59523.4 | |
| Head Tube Length (mm) (inch) | 1405.5 | 1606.3 | 1857.3 | 2058.1 | 2258.9 | |
| Head Tube Angle (degrees) | 71.7° | 72.5° | 72.5° | 72.5° | 72.5° | |
| Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | |
| Trail (mm) (inch) | 632.5 | 582.3 | 582.3 | 582.3 | 582.3 | |
| Wheelbase (mm) (inch) | 99539.2 | 99839.3 | 101039.8 | 102540.4 | 104040.9 | |
| Chain Stay Length (mm) (inch) | 42016.5 | 42016.5 | 42016.5 | 42016.5 | 42016.5 | |
| Bottom Bracket Drop (mm) (inch) | 753 | 753 | 702.8 | 702.8 | 702.8 | |
| Stack (mm) (inch) | 54621.5 | 56722.3 | 58623.1 | 60523.8 | 62424.6 | |
| Reach (mm) (inch) | 37414.7 | 37714.8 | 38115 | 39015.4 | 39815.7 | |
| Stand Over Height (mm) (inch) | 76029.9 | 78630.9 | 81632.1 | 83532.9 | 85633.7 | |
| Handlebar Width (mm) (inch) | 40015.7 | 42016.5 | 42016.5 | 44017.3 | 44017.3 | |
| Stem Length (mm) (inch) | 903.5 | 1003.9 | 1003.9 | 1104.3 | 1104.3 | |
| Crank Length (mm) (inch) | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 | |
| Wheel Size | 700C | 700C | 700C | 700C | 700C |
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
All specifications and prices listed are subject to change without notice.
