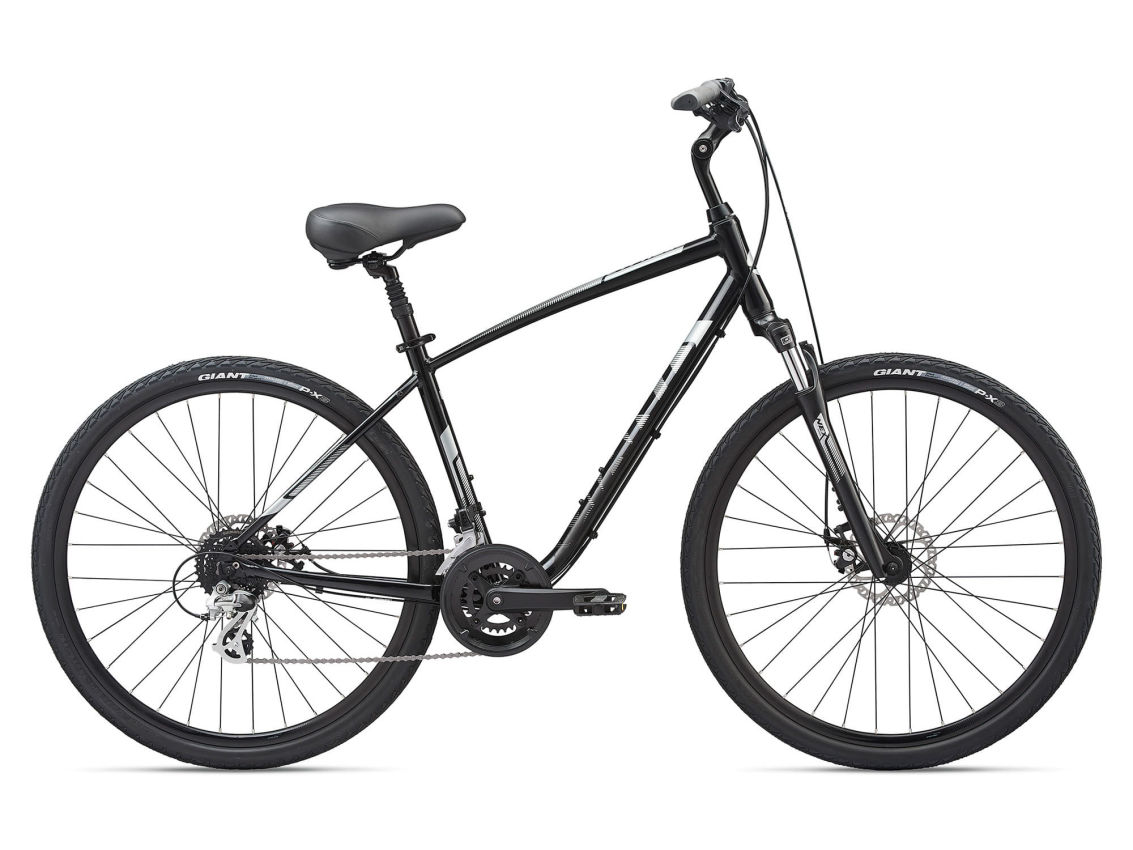

Cypress DX

2021

$710

Smooth-rolling 700c wheels give Cypress a comfortable ride, even when things get a little bumpy. The suspension seatpost soaks up shocks, and the ALUXX aluminum frame provides a comfortable, upright ride. You can take it on roads or bike paths, even some dirt. Just keep pedaling and enjoy the ride.

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1”  to 165 cm5’5”
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 180 cm5’11”
  • L
      180 cm5’11”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMLXL
BSeat Tube Angle (degrees)74.0°73.5°73.5°73.5°73.5°
CTop Tube Length (mm) (inch)55021.757022.45852360023.661524.2
DHead Tube Length (mm) (inch)1505.91505.91656.51857.32007.9
EHead Tube Angle (degrees)69.5°69.5°69.5°69.5°69.5°
HWheelbase (mm) (inch)107442.3108942.9110543.5112144.1113744.8
IChain Stay Length (mm) (inch)45517.945517.945517.945517.945517.9
KStack (mm) (inch)60623.960623.962024.463925.265325.7
LReach (mm) (inch)37614.839015.440115.841116.242116.6
MStand Over Height (mm) (inch)72628.674429.378230.880831.883332.8
PCrank Length (mm) (inch)1706.71706.71756.91756.91756.9
Specs
  • Sizes
    XS, S, M, L, XL
  • Colors
    Metallic Black
  • Frame
    ALUXX-Grade Aluminum, disc
  • Fork
    SR Suntour NEX, 63mm travel
  • Shock
    N/A
  • Handlebar
    Alloy, high rise, 25.4
  • Stem
    Alloy, adjustable quill
  • Seatpost
    alloy suspension, 30.9
  • Saddle
    Giant Comfort
  • Pedals
    platform plus comfort
  • Shifters
    Shimano M315
  • Front Derailleur
    MicroSHIFT T382
  • Rear Derailleur
    Shimano Altus
  • Brakes
    Tektro mechanical disc, 160mm
  • Brake Levers
    alloy
  • Cassette
    Shimano HG31, 8-speed, 11x34
  • Chain
    KMC Z8.3
  • Crankset
    forged alloy, 28/44 with chainguard
  • Bottom Bracket
    sealed cartridge
  • Rims
    Giant GX wheelset
  • Hubs
    Alloy, QR, 32h
  • Spokes
    Stainless
  • Tires
    Giant P-X2, 700x45c, puncture protect
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
