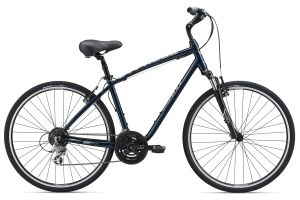

Cypress DX

2018

$460

By a professional mechanic

Original Owners

Within 14 Days

HERE’S AN OPEN INVITATION TO RIDE. WITH ITS COMFORTABLE, RELAXING RIDE, CYPRESS MAKES IT EASY.

Smooth-rolling 700c wheels give Cypress a comfortable ride, even when things get a little bumpy. The suspension seatpost soaks up shocks, and the lightweight aluminum frame provides a comfortable, upright ride. Just keep pedaling and enjoy the ride.

  • ALUXX-grade butted aluminum frame
  • SR Suntour NEX 63mm-travel fork
  • Suspension seatpost for added comfort
  • Upright position for “heads-up” riding
  • 3x8-speed trigger-shift drivetrain

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      152 cm5’0”  to 160 cm5’3”
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 182 cm6’0”
  • L
      182 cm6’0”  to 192 cm6’4”
  • XL
      192 cm6’4”  to 196 cm6’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMLXL
A Seat Tube Length (mm) (inch)3561440616457185082055922
B Seat Tube Angle (degrees)74.0°73.5°73.5°73.5°73.5°
C Top Tube Length (mm) (inch)55021.757022.45852360023.661524.2
D Head Tube Length (mm) (inch)1505.91505.91656.51857.32007.9
E Head Tube Angle (degrees)69.5°69.5°69.5°69.5°69.5°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8
G Trail (mm) (inch)843.3843.3843.3843.3843.3
H Wheelbase (mm) (inch)107442.3108942.9110543.5112144.1113744.8
I Chain Stay Length (mm) (inch)45517.945517.945517.945517.945517.9
J Bottom Bracket Drop (mm) (inch)702.8702.8702.8702.8702.8
K Stack (mm) (inch)60623.960623.962024.463925.265325.7
L Reach (mm) (inch)37614.839015.440115.841116.242116.6
M Stand Over Height (mm) (inch)72628.674429.378230.880831.883332.8
N Handlebar Width (mm) (inch)6102461024610246102461024
O Stem Length (mm) (inch)1204.71204.71355.31355.31355.3
P Crank Length (mm) (inch)1706.71706.71756.91756.91756.9
Q Wheel Size 700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, L, XL
  • Colors
    Dark Blue/Silver, Matte Yellow/Black
  • Frame
    ALUXX-grade aluminum
  • Fork
    SR Suntour NEX 4110, 63mm travel
  • Shock
    N/A
  • Handlebar
    Alloy, High Rise
  • Stem
    Alloy, Adjustable
  • Seatpost
    Alloy Suspension, 30.9mm
  • Saddle
    Giant Comfort
  • Pedals
    Platform
  • Shifters
    Shimano EF 500
  • Front Derailleur
    Shimano M191
  • Rear Derailleur
    Shimano Altus
  • Brakes
    Alloy, Direct Pull
  • Brake Levers
    Alloy Comfort
  • Cassette
    Shimano Altus CS-HG31-8 11x34, 8-Speed
  • Chain
    KMC Z72
  • Crankset
    Shimano FC-TY501, 28/38/48
  • Bottom Bracket
    Sealed Cartridge, Threaded
  • Rims
    Giant Alloy, Double Wall
  • Hubs
    Alloy, 32h
  • Spokes
    Stainless Steel, 14g
  • Tires
    Giant P-X3, 700x38, Multi-Surface
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
