High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
{{ item.Quote }}

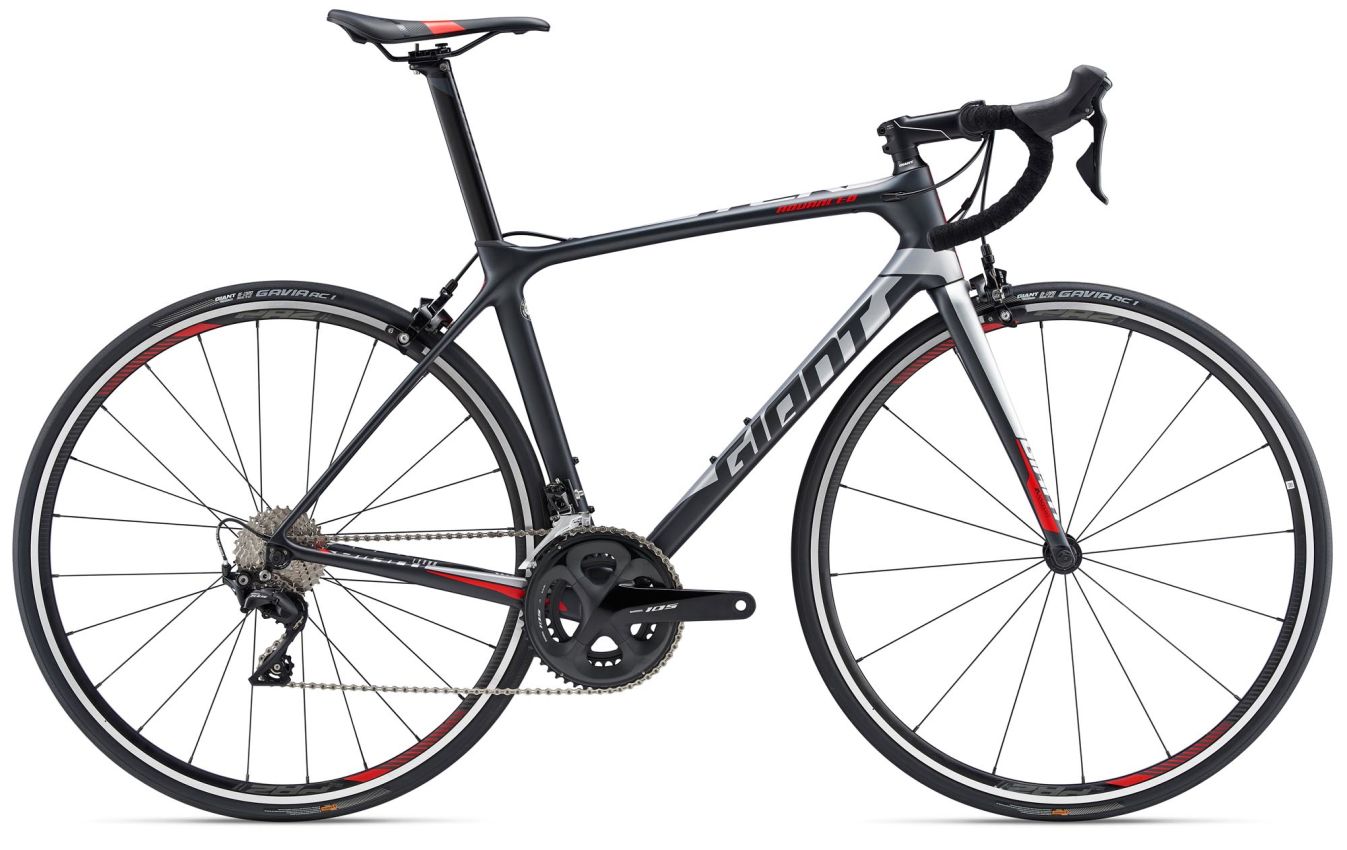

TCR Advanced 2
2019
The most efficient race bikes have the perfect balance of light weight, stiffness and smooth compliance on the road. The TCR Advanced delivers on all three, making it a versatile performer for competitive road riders.
The Advanced-grade composite of the TCR Advanced frame manages to shave every gram possible—without sacrificing its pedal-stomping stiffness. The OverDrive steerer system and MegaDrive downtube are engineered for the precise handling so you can rail corners at speed. And the Variant seatpost is engineered for an ideal blend of efficiency and compliance—so you stay fresh until the finish on those big days in the saddle.
Ключові Фактори Ефективності
Lightweight efficiency
Composite frameset is engineered to offer minimal weight without sacrificing pedaling stiffness and efficiency.
Pro pedigree
Proven geometry and precise steering stiffness makes this frame design the choice of climbers and all-rounders who compete at the Giro d’Italia, Tour de France and other major races around the world.
Speed and compliance
The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.
Особливості
The Advanced-grade composite of the TCR Advanced frame manages to shave every gram possible without sacrificing its pedal-stomping stiffness. The OverDrive steerer system and MegaDrive downtube are engineered for precise handling so you can rail corners at speed. And the Variant seatpost produces an ideal blend of efficiency and compliance—so you stay fresh until the finish on those big days in the saddle.
1
Advanced Composite
2
Advanced-grade hybrid fork
An Advanced-grade composite fork with an OverDrive tapered hybrid steerer tube constructed for excellent handling and ride-quality.
3
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter-wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
4
MegaDrive
A massive rectangular downtube forms the link between the oversized OverDrive system and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while minimizing weight.
5
Variant Seatpost
This proprietary seatpost design offers an optimized balance of lightweight, superior ride-quality and easy adjustment to enhance TCR’s total race performance characteristics.
6
INTERNAL SEATPOST CLAMP
A lightweight, all-internal seatpost locking mechanism provides confident clamping force with clean performance and aesthetics.
7
Internal cable routing
Internal cable routing with fewer, yet larger ports and tool-free bottom bracket guide ensures easy cable installation while minimizing frame weight.
8
Optimized tube shaping
The TCR Advanced frame optimizes every tube shape to shave weight, maintain stiffness and improve ride-quality.
9
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Технології
Технологія Advanced Composite
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Геометрія Compact Road
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Кермова OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Безкамерні системи
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Таблиця розмірів та геометрія
Інформація про розмір має виключно довідковий характер та не є максимально достовірною. Будь ласка, зверніться до Вашого уповноваженого дилера Giant та Liv для визначення правильного розміру.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Довжина підсідельної труби (mm) (inch) | 42516,7 | 44517,5 | 47018,5 | 50019,7 | 52520,7 | 55021,7 |
| B | Нахил підсідельної труби (degrees) | 74,5° | 73,5° | 73,0° | 73,0° | 73,0° | 72,0° |
| C | Довжина верхньої труби (mm) (inch) | 51520,3 | 53521,1 | 55021,7 | 57022,4 | 58022,8 | 60523,8 |
| D | Висота кермової труби (mm) (inch) | 1234,8 | 1335,2 | 1485,8 | 1686,6 | 1887,4 | 2038 |
| E | Нахил кермової труби (degrees) | 71,0° | 72,5° | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Виліт вилки (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| G | Шлях вилки (mm) (inch) | 702,8 | 602,4 | 572,2 | 572,2 | 572,2 | 572,2 |
| H | Колісна база (mm) (inch) | 97238,3 | 97038,2 | 97638,4 | 99739,3 | 100739,6 | 102140,2 |
| I | Довжина нижніх пір'їв рами (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Провисання каретки (mm) (inch) | 702,8 | 682,7 | 682,7 | 652,6 | 652,6 | 652,6 |
| K | Ефективна висота (mm) (inch) | 51720,4 | 52920,8 | 54521,5 | 56222,1 | 58122,9 | 59523,4 |
| L | Ефективна довжина (mm) (inch) | 37214,6 | 37814,9 | 38315,1 | 39815,7 | 40215,8 | 41216,2 |
| M | Безпечна висота (mm) (inch) | 72428,5 | 74229,2 | 76530,1 | 78731 | 80531,7 | 82332,4 |
| N | Ширина керма (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Довжина виносу (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| P | Довжина шатунів (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Розмір коліс | 700C | 700C | 700C | 700C | 700C | 700C |
Giant залишає за собою право змiнювати специфiкацiї без попереднього повiдомлення.
