車款類別: 平把運動
FastRoad AR Advanced 2
NT$38,000
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

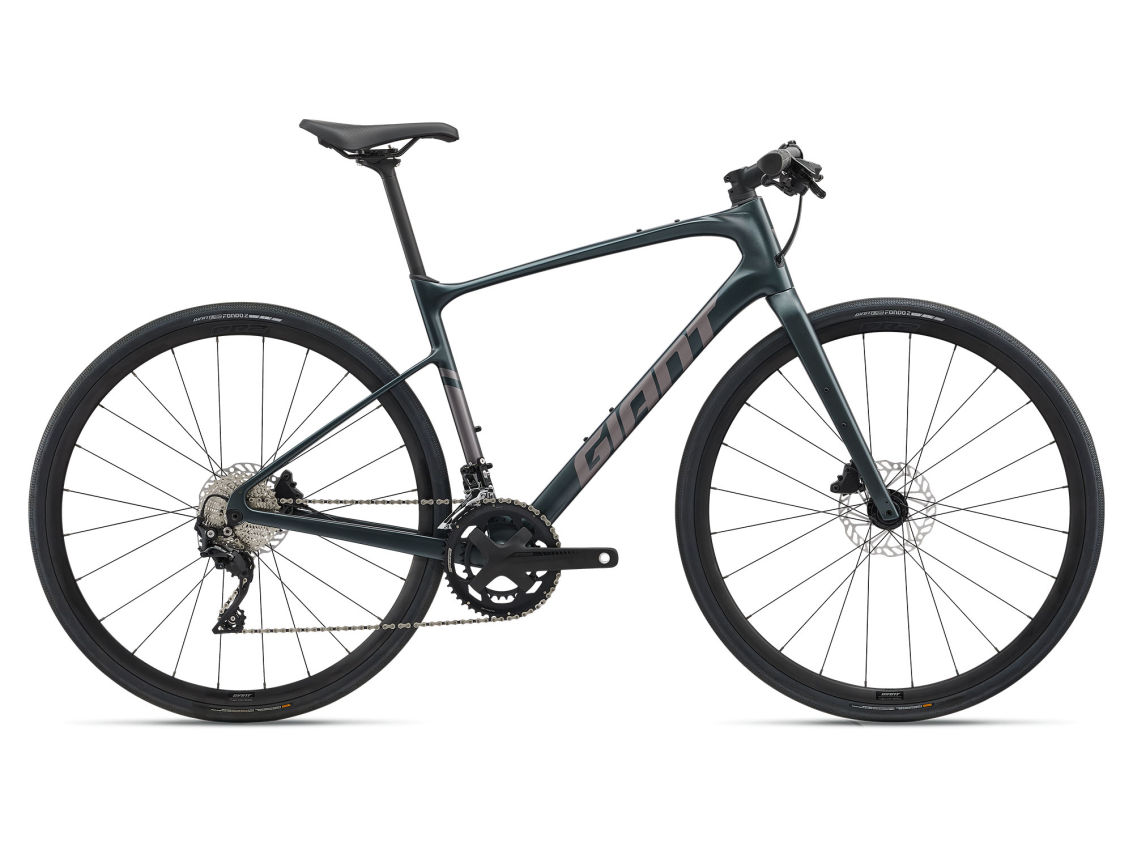

FastRoad AR Advanced 1 Asia
NT$45,800
同車系車款
車架幾何
車架幾何僅供參考，請洽詢問捷安特授權門市；尺寸會因為不同國家而異。
- XS
- 155 cm5’1”
165 cm5’5”
- S
- 160 cm5’3” 170 cm5’7”
- M
- 170 cm5’7” 180 cm5’11”
- ML
- 175 cm5’9” 185 cm6’1”
- L
- 180 cm5’11” 190 cm6’3”
| XS | S | M | ML | L | |
|---|---|---|---|---|---|
| A 座(立)管長 (mm) (inch) | 43517.1 | 45517.9 | 47518.7 | 49519.5 | 52520.7 |
| B 座(立)管角度 (degrees) | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° |
| C 上管長度 (mm) (inch) | 54521.5 | 56022 | 57522.6 | 59023.2 | 61024 |
| D 頭管長度 (mm) (inch) | 1104.3 | 1305.1 | 1556.1 | 1756.9 | 2007.9 |
| E 頭管角度 (degrees) | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° |
| F 前叉 (mm) (inch) | 502 | 502 | 502 | 502 | 502 |
| G Trail (mm) (inch) | 73.72.9 | 73.72.9 | 70.42.8 | 70.42.8 | 67.12.6 |
| H 前後輪距 (mm) (inch) | 103140.6 | 104741.2 | 105841.7 | 106942.1 | 108442.7 |
| I 後下叉長度 (mm) (inch) | 43517.1 | 43517.1 | 43517.1 | 43517.1 | 43517.1 |
| J 五通下降高度 (mm) (inch) | 753 | 753 | 753 | 753 | 753 |
| K 頭碗至五通高度 (mm) (inch) | 53321 | 55221.7 | 57822.8 | 59723.5 | 62324.5 |
| L 頭碗至五通長度 (mm) (inch) | 38715.2 | 39615.6 | 40415.9 | 40716 | 41916.5 |
| M 上管至地面高度 (mm) (inch) | 71828.3 | 73629 | 75629.8 | 77330.4 | 80031.5 |
| N 把手寬 (mm) (inch) | 64025.2 | 64025.2 | 68026.8 | 68026.8 | 68026.8 |
| O 龍頭長度 (mm) (inch) | 702.8 | 803.1 | 903.5 | 903.5 | 1003.9 |
| P 曲柄長度 (mm) (inch) | 1706.7 | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 |
| Q 輪組尺寸 | 700C | 700C | 700C | 700C | 700C |
＊捷安特公司對本網站所刊載之產品資料保留修改權利，恕不另行通知(包括有關設備、規格、型號、重量、顏色和材料等)，請以實際產品為主。
