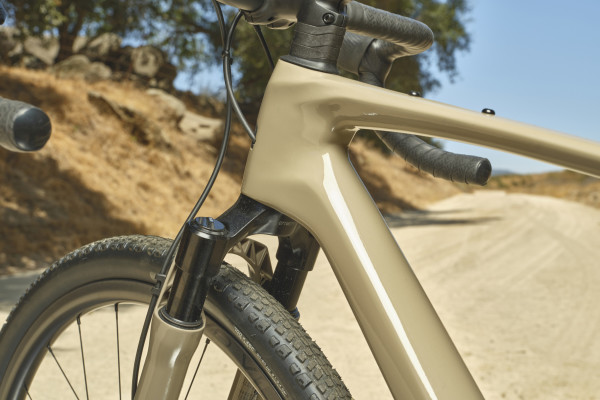

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

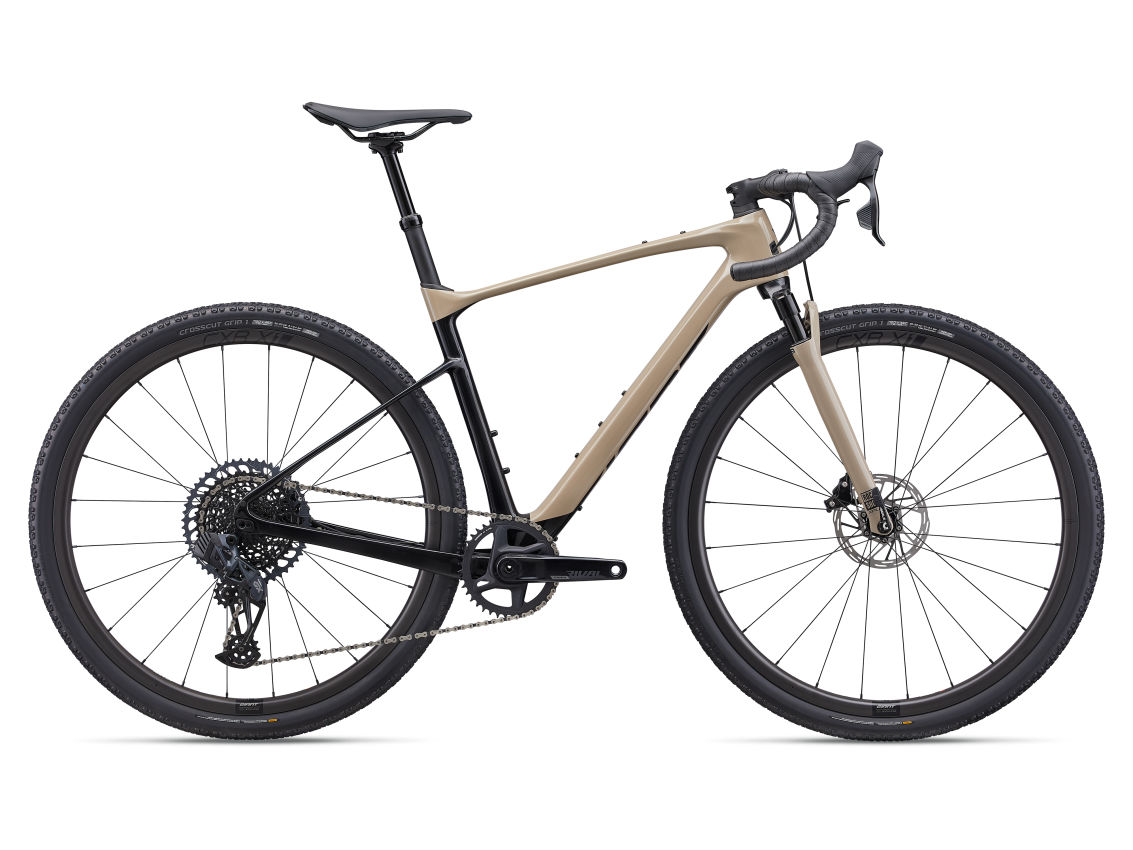

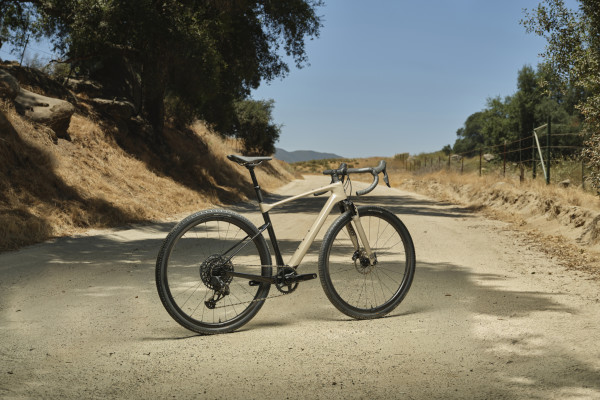

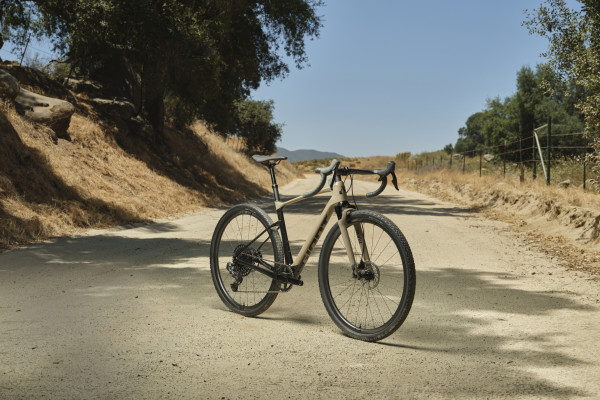

Revolt X Advanced Pro 1
Techs & Features
Advanced Composite Technology
D-Fuse Technology

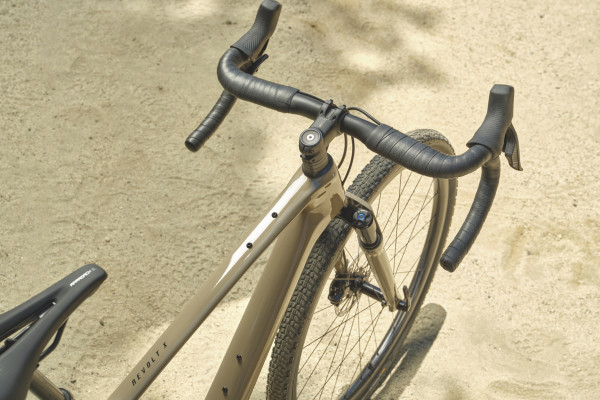

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 155 cm5’1”
166 cm5’5”
- S
- 159 cm5’3” 171 cm5’7”
- M
- 169 cm5’7” 181 cm5’11”
- ML
- 174 cm5’9” 186 cm6’1”
- L
- 179 cm5’10” 191 cm6’3”
- XL
- 189 cm6’2” 200 cm6’7”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Seat Tube Length (mm) (inch) | 43016.9 | 45017.7 | 47018.5 | 49019.3 | 51020.1 | 53020.9 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.9° | 73.5° | 73.4° | 73.5° | 73.4° | 73.0° | 72.9° | 73.0° | 72.9° | 73.0° | 72.9° |
| C | Top Tube Length (mm) (inch) | 54321.4 | 55321.8 | 56022 | 57522.6 | 58523 | 60023.6 |
| D | Head Tube Length (mm) (inch) | 903.5 | 1003.9 | 1154.5 | 1305.1 | 1455.7 | 1606.3 |
| E | Head Tube Angle (degrees) | 70.5° | 70.4° | 71.0° | 70.9° | 71.5° | 71.4° | 72.0° | 71.9° | 72.0° | 71.9° | 72.0° | 71.9° |
| F | Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 80.33.1 | 83.73.3 | 76.93 | 80.33.1 | 73.52.9 | 76.83 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 | 70.12.8 | 73.42.9 |
| H | Wheelbase (mm) (inch) | 102340.3 | 103340.7 | 102440.3 | 103440.7 | 102640.4 | 103640.8 | 103140.6 | 104141 | 104141 | 105141.4 | 105741.6 | 106742 |
| I | Chain Stay Length (mm) (inch) | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 |
| J | Bottom Bracket Drop (mm) (inch) | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 | 682.7 | 692.7 |
| K | Stack (mm) (inch) | 54921.6 | 56022 | 57622.7 | 59223.3 | 60723.9 | 62124.4 |
| L | Reach (mm) (inch) | 38615.2 | 38715.2 | 38915.3 | 39315.5 | 39915.7 | 41016.1 |
| M | Stand Over Height (mm) (inch) | 72028.3 | 72628.6 | 73629 | 74329.3 | 75529.7 | 76130 | 77230.4 | 77830.6 | 79031.1 | 79631.3 | 80831.8 | 81432 |
| N | Handlebar Width (mm) (inch) | 44017.3 | 44017.3 | 46018.1 | 46018.1 | 48018.9 | 48018.9 |
| O | Stem Length (mm) (inch) | 502 | 602.4 | 702.8 | 803.1 | 803.1 | 903.5 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
All specifications listed are subject to change without notice.
