Professional-grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fiber Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
Nové
{{ productAwardLocalized.Quote }}
The latest generation of our flagship road racing series has been winning the biggest races in the world for more than three decades. It’s the ultimate all-rounder for the performance obsessed.
Hlavné výhody
Class-leading efficiency
With the highest pedaling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control

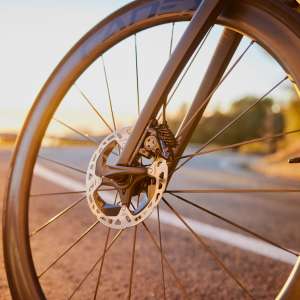

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

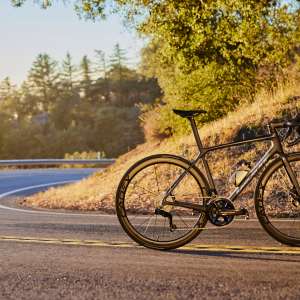

Galéria
Výhody

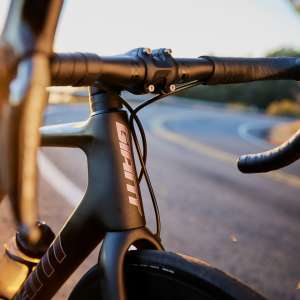

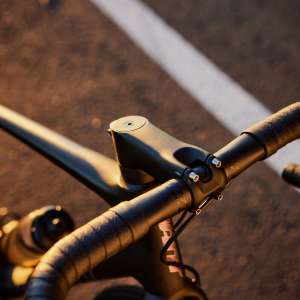

The latest TCR Advanced SL Disc builds on its proven climbing capabilities, boasting its highest stiffness-to-weight ratio ever, and adds aero shaping in key sections of the frameset for added all-rounder performance. Additional updates include added frame and fork clearance to fit high-volume tires up to 32mm, the latest integrated WheelSystem technology, and a new aero-engineered Contact SLR composite handlebar to make it even faster against the wind.
Výber veľkosti a geometrie
Uvedené hodnoty sú orientačné. Odporúčame výber veľkosti konzultovať u vášho autorizovaného predajcu Giant / Liv a veľkosť rámu si pred nákupom bicykla vyskúšať.
- XS
- 157 cm5’2”
169 cm5’7”
- S
- 165 cm5’5” 175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Dĺžka sedlovej trubky (mm) (inch) | 68026,8 | 71028 | 74029,1 | 77030,3 | 80031,5 | 83032,7 |
| B | Uhol sedlovej trubky (degrees) | 74,5° | 74,0° | 73,5° | 73,0° | 73,0° | 72,5° |
| C | Dĺžka hornej rámovej trubky (mm) (inch) | 52020,5 | 53521,1 | 55021,7 | 56522,2 | 58022,8 | 60023,6 |
| D | Dĺžka hlavovej trubky (mm) (inch) | 1204,7 | 1305,1 | 1455,7 | 1656,5 | 1857,3 | 2007,9 |
| E | Uhol hlavovej trubky (degrees) | 71,0° | 72,3° | 73,0° | 73,0° | 73,0° | 73,0° |
| F | Offset vidlice (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| G | Trail (mm) (inch) | 72,12,8 | 642,5 | 59,22,3 | 59,22,3 | 59,22,3 | 59,22,3 |
| H | Rázvor (mm) (inch) | 97638,4 | 97738,5 | 98038,6 | 99139 | 100639,6 | 102040,2 |
| I | Dĺžka zadnej stavby (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Rozdiel zadnej voči stredovej osi - BB DROP (mm) (inch) | 722,8 | 702,8 | 702,8 | 672,6 | 672,6 | 672,6 |
| K | Stack - výška riadenia (mm) (inch) | 51720,4 | 52820,8 | 54521,5 | 56222,1 | 58122,9 | 59623,5 |
| L | Reach (mm) (inch) | 37614,8 | 38315,1 | 38815,3 | 39315,5 | 40215,8 | 41216,2 |
| M | Výška rámu od zeme (mm) (inch) | 70627,8 | 72528,5 | 74729,4 | 77330,4 | 80031,5 | 81632,1 |
| N | Šírka riaditok (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Dĺžka predstavca (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| P | Dĺžka kľúk (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Rozmer kolies | 700C | 700C | 700C | 700C | 700C | 700C |
Technológie
Advanced SL Composite Technology
Surové uhlíkové vlákno profesionálnej kvality je tkané v našej kompozitnej továrni na výrobu najľahších, najtuhších a najkvalitnejších rámov. Túto technológiu používajú profesionálni pretekári Giant takmer v každej cyklistickej disciplíne
OverDrive 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Compact Road Design
Kompaktná geometria, ktorú predstavil Giant s profesionálnym tímom ONCE v 90. rokoch, navždy zmenila vzhľad a dojem z vysokovýkonných cestných bicyklov. Dolu klesajúca horná trubka (od hlavovej trubky k sedlovej trubke) vytvára menšie predné a zadné trojuholníky pre ľahší a tuhší bicykel. Tiež uľahčuje jazdcom všetkých veľkostí perfektné prispôsobenie.
Tubeless System
Technologie Giant Tubeless System nabízí kompletní řešení pro bezdušová kola. Zahrnuje vše, co je potřeba – zapletená kola, pláště, ventilky a těsnicí tmely, čímž eliminuje potíže s instalací a kompatibilitou, a vy tak můžete jezdit bez obav a omezení.

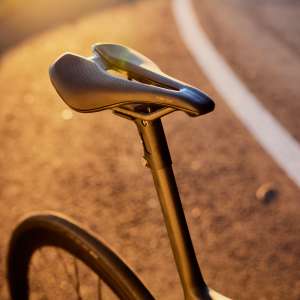

Integrated Seatpost
Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 45 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
RideSense Ready
This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.
