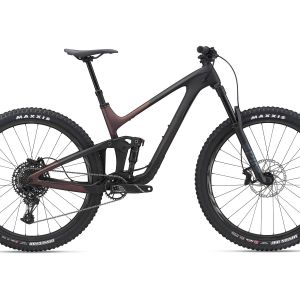

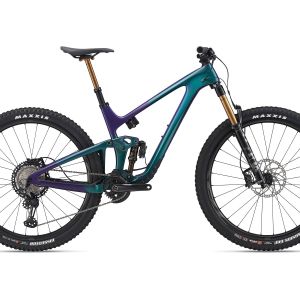

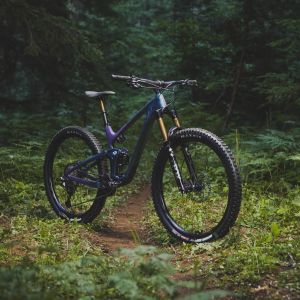

Trance X Advanced Pro 29
Master the Mountain
Extra travel, extra fun. From rowdy enduro runs to backcountry missions on steep, chunky singletrack, this new composite 29er builds on the Trance 29 platform with beefed up suspension and adjustable frame geometry.
This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails. The full composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding style and terrain. To fine tune the ride, you can choose a steeper or slacker headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2 degrees), which results in either a 30mm or 40mm bottom bracket drop. And it’s all built around 29-inch wheels for added stability on rugged terrain.
Hlavné výhody
Sebadôvera a kontrola
Optimalizované odpruženie Maestro pre 29-palcové kolesá so zdvihom 135 mm vzadu / 150 mm vpredu, s vyváženosťou a stabilitou, čo vám dáva viac hybnosti pre technické stúpania a istotu lietať na rýchlych a robustných zjazdoch po singláči. Až pre 2,5-palcové pneumatiky.
Karbónový
Rám a zadná stavba sú vyrobené z patentovaného materiálu s vysoko výkonnými uhlíkovými vláknami a živicou. Ručne vyrobená monokoková konštrukcia ho robí ľahkým, tuhým a poddajným.
Nastaviteľná geometria rámu
Flip chip vám umožňuje meniť uhly hlavovej a sedlovej trubky, spolu s výškou spodnej konzoly, aby ste doladili ovládanie. Môžete si zvoliť nízku polohu (uhol 65,5 / 77,2 hlavy / sedlovej trubky a 40 mm pokles BB) pre rýchlejší otvorený terén alebo vysokú (uhol 66,2 / 77,9 hlavy / sedlovej trubky a 30 mm pokles) pre pomalší a užší singletrack.
Výhody

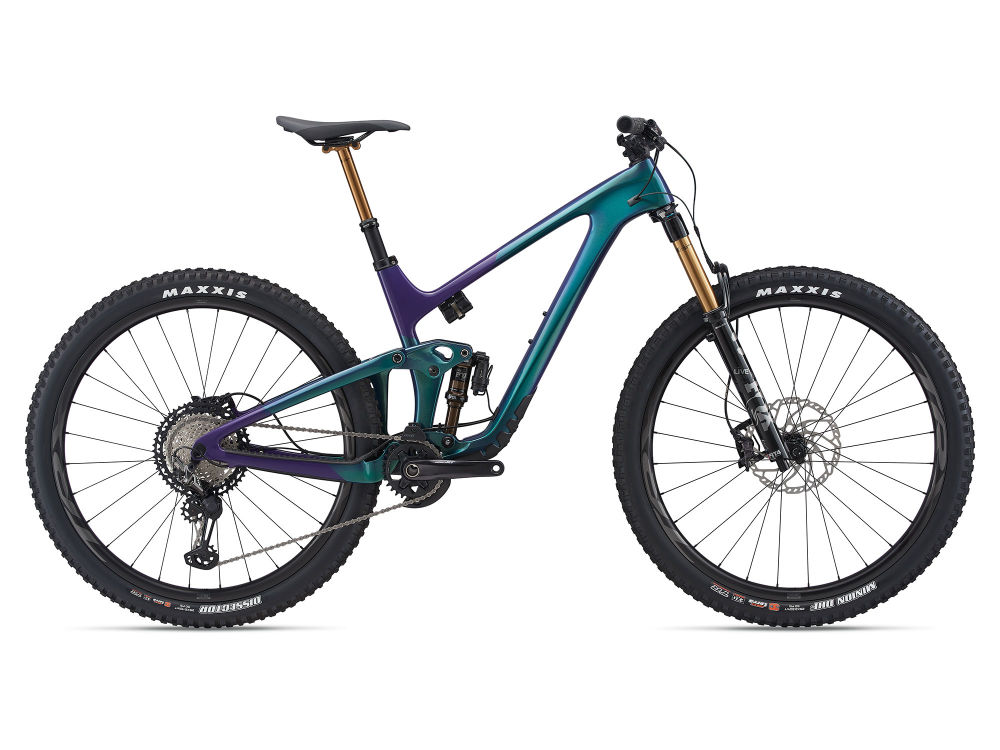

This full-composite, fully capable trail bike is engineered with a longer-travel Maestro suspension system and progressive geometry that you can fine tune with a flip chip to suit your riding style and terrain. Here’s a look at the key technologies in the new Trance X Advanced Pro 29.
1
Advanced Composite Mainframe And Swingarm
High-performance grade raw carbon fiber and custom resin is used to produce this high-quality frame in Giant’s own composite factory. Handcrafted monocoque construction makes it extremely lightweight, stiff and compliant.
2

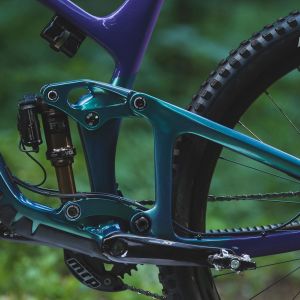

Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.
3
Advanced Forged Composite
A state-of-the-art, high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
4
Trunnion Mount
Integrated shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
5
Adjustable Frame Geometry
Flip chip adjustability lets you switch between two settings depending on the terrain you are riding. You can select either 66.2 or 65.5-degree head angle and 77.9 or 77.2-degree seattube angle, resulting in either a 30mm or 40mm bottom bracket drop.
6

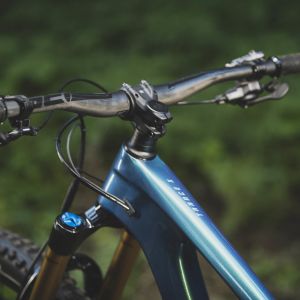

OverDrive
Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
7
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
8

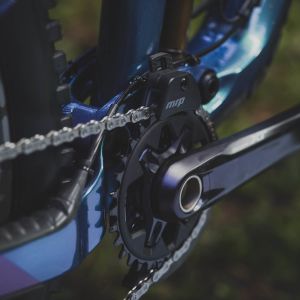

PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92mm wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
9
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92mm wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
10
Integrated Frame Protection

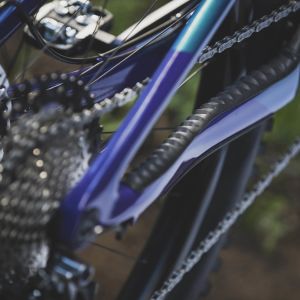

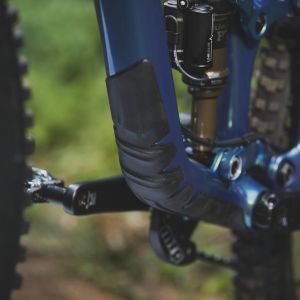

Drive-side chainstay and downtube feature built-in protection against rocks and debris. A clear 3M protective strip on the underside of the headtube/downtube junction protects the frame when it’s loaded onto a shuttle vehicle.
11
Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
12
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
