Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on
the trail.

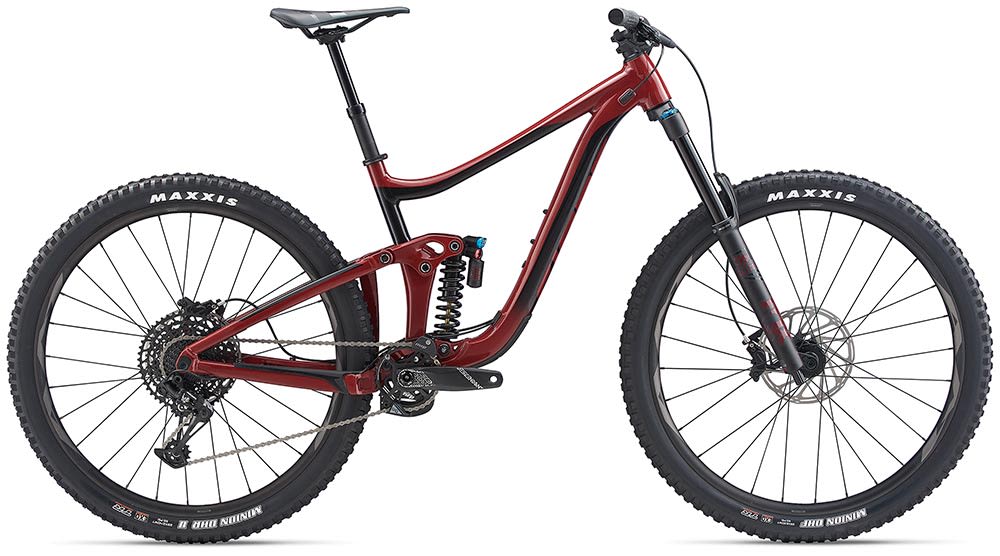

Reign SX 29
REIGN SUPREME
Nenájdený žiadny produkt
Výhody
This all-new full-suspension 29er features a new ALUXX SL frameset, our latest Maestro rear suspension, and components that are aimed at technical descents. It’s engineered with progressive geometry that’s optimized for its 29-inch wheels. That means shorter chainstays, a longer toptube, and headtube/seattube angles that put you in the perfect position to slay all types of singletrack. The rear suspension gives you 146mm of smooth, active rear travel with a new trunnion mount shock and Advanced Forged Composite rocker arm. And this SX model features a longer travel 170mm fork for even more control on high-speed descents. Add in a host of other aggressive trail riding technologies, including a cleanly routed dropper seatpost, the latest Giant WheelSystem with Boost hub spacing, and tubeless tires set up right out of the box, and it’s ready to rip when you are.

Maestro Suspension Technology
ALUXX SL Aluminum Main and Subframe
High-performance level, state-of-the-art aluminum material is made predominantly of 6061 alloy and delivers best-in-class strength-to-weight ratio. These framesets also feature unique welding technologies for a high-performance ride quality.
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
29-Specific Enduro Geometry
Updated “long and low” enduro-frame geometry with 64/75.8-degree headtube/seattube angles for aggressive handling is tailored for 29-inch wheels to optimize roll-over capabilities and high-speed momentum.
Boost Technology
Wider hub spacing (110mm front / 148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
Trunnion Mount
New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
