Four strategically positioned pivot points and two linkages work together to create a single floating pivot point for the most active, efficient suspension system.

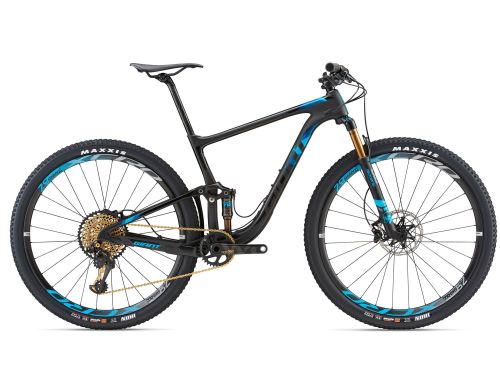

Anthem Advanced Pro 29
PURE XC SPEED
This pro-level, fully composite XC flyer blends trail-smoothing Maestro suspension with the added control and stability of progressive 29er geometry. When XC racing is your game, this is your ticket to the podium.
Výhody
Engineered with a full composite frameset including the front triangle and rear swingarm, this 29er has 90mm of smooth rear suspension travel and 100mm up front. The Maestro rear suspension system includes a trunnion mount shock that produces a lower leverage ratio for efficient pedaling and braking performance. The innovative linkage makes room for shorter chainstays to improve climbing capabilities and overall agility. The Advanced Forged Composite upper rocker arm is lighter, stiffer and stronger than aluminum, and other updates include wider Boost hub spacing and an integrated Giant WheelSystem that gives you super strong and stiff wheels for confident, precise handling on XC terrain.
Galéria
Selecting any of the image buttons will open a larger image gallery with image descriptions
Technológie
Technológia Advanced Composite
Surový uhlíkový materiál vysokej kvality sa používa na výrobu tohto materiálu na zákazku v našej vlastnej továrni na výrobu kompozitov s vysokým pomerom tuhosti k hmotnosti. Predný trojuholník je zostavený a formovaný ako jeden súvislý kus v priemyselnom výrobnom procese s názvom Modified Monocoque Construction.
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
Maestro Suspension Technology
Štyri strategicky umiestnené otočné body a dve spojenia spolupracujú na vytvorení jediného plávajúceho otočného čapu pre najaktívnejší, najefektívnejší a nezávislý systém zavesenia kolies na trati.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
