XTC Advanced 29 2

Podobni Artikli

Best For: Kros

XTC Advanced 29 1

:

XTC Advanced 29 3

Skip to compare section

Tehnologije

Advanced Composite Technology
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4” to 172 cm5’8”
  • M
      171 cm5’7” to 180 cm5’11”
  • L
      179 cm5’10” to 188 cm6’2”
  • XL
      187 cm6’2” to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Dolžina sedežne cevi (mm) (inch)380154311747518,752520,7
A1 Seat Post Insertion Depth (mm) (inch)1656,52208,726010,231012,2
B Kot sedežne cevi (degrees)73,5°73,5°73,5°73,5°
C Top Tube Length (mm) (inch)59523,461424,26352566526,2
D Višina glave okvirja (mm) (inch)953,7953,71054,11154,5
E Krmilni kot (degrees)69,5°69,5°70,0°70,0°
F Zamik vpetja osi (mm) (inch)431,7431,7431,7431,7
G Trail (mm) (inch)953,7953,7953,7953,7
H Medosna razdalja (mm) (inch)108742,8110643,5112844,4115945,6
I Dolžina cevi ob verigi (mm) (inch)42516,742516,742516,742516,7
J Bottom Bracket Drop (mm) (inch)582,3582,3582,3582,3
K Oddaljenost zgornje cevi od gonilne osi (mm) (inch)60423,860423,861324,163224,9
L Doseg (mm) (inch)41616,443517,145317,847718,8
M Višina zgornje cevi (mm) (inch)7372976430,179131,182932,6
N Širina krmila (mm) (inch)76029,976029,976029,976029,9
O Dolžina opore krmila (mm) (inch)602,4702,8803,1903,5
P Dolžina gonilke (mm) (inch)1706,71756,91756,91756,9
Specifikacije
  • Velikosti
    S, M, L, XL
  • Barve

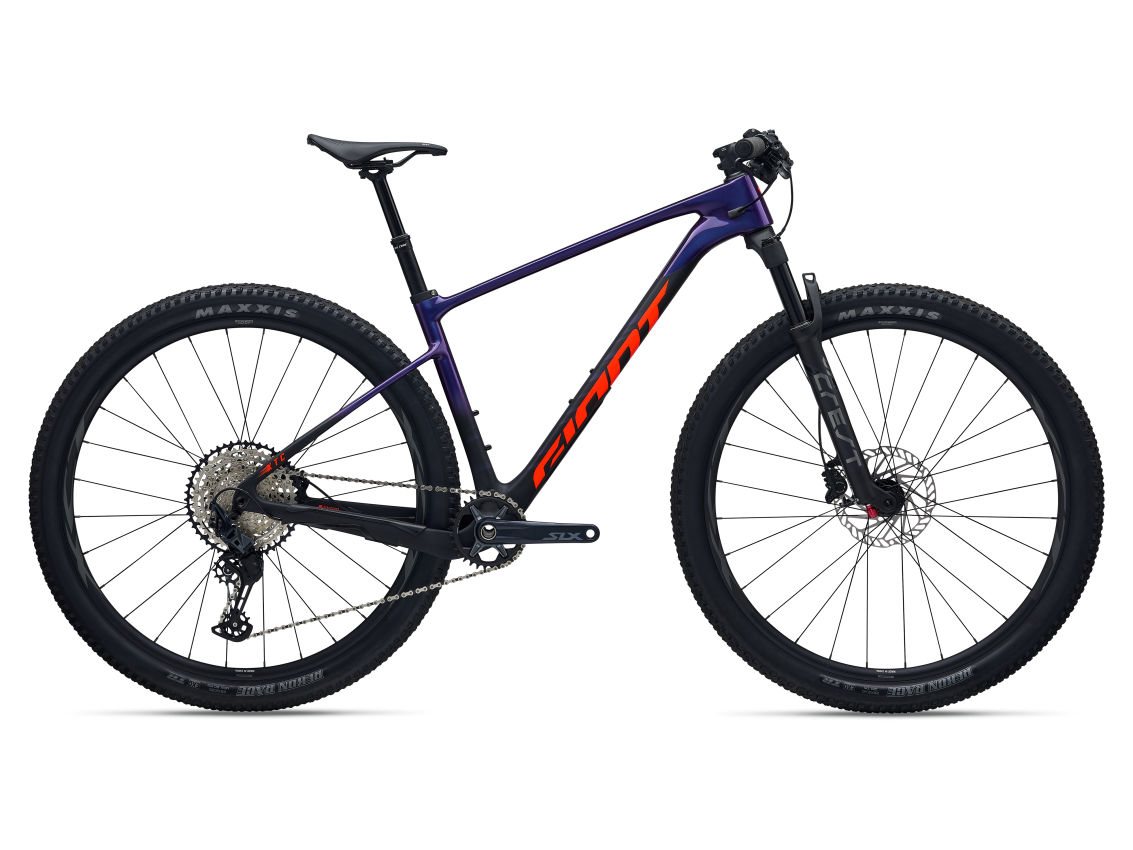

    Purple Haze
  • Okvir
    Advanced-grade composite, 12x148mm thru-axle
  • Vilice
    Giant Crest SL, 100mm, remote lockout, 44mm offset, 15x110
  • Amortizer
    N/A
  • Krmilo
    Giant Contact SL XC, 780x31.8mm
  • Grips
    Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
  • Opora krmila
    Giant Contact S:60mm, M:70mm, L:80mm, XL:90mm
  • Opora sedeža
    Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm XL: 120
  • Sedež
    Giant Grit PP
  • Prestavne ročice
    Shimano SLX, 1x12
  • Prednji menjalnik
    N/A
  • Zadnji menjalnik
    Shimano SLX
  • Zavore
    Shimano BR-MT500, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm
  • Zavorne ročice
    Shimano MT-501
  • Verižnik
    Shimano SLX, 10x51
  • Veriga
    KMC X-12
  • Gonilke z verižniki
    Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Obroči
    Giant XCT 29, 25mm inner width
  • Pesta
    alloy, sealed
  • Napere
    Sapim
  • Plašči
    [F] Maxxis Rekon Race, 29x2.4, [R] Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO
  • Dodatki
    tubeless prepared, 2.25" max tire size, 38t max chainring size
  • Teža
    Koliko tehta to kolo? To je pogosto vprašanje. A v resnici v kolesarstvu ni standardov za uradne teže koles, zato je veliko zavajajočih podatkov. Do razlik prihaja zaradi velikosti, materialov okvirja, končne obdelave in opreme. Pri vse lažjih kolesih so te razlike kritične. Pri Giantu verjamemo, da je edini pravi podatek o teži tisti, do katerega boste prišli sami pri vašem prodajalcu.

Prenesite PDF

Vse navedene specifikacije se lahko spremenijo brez obvestila.
