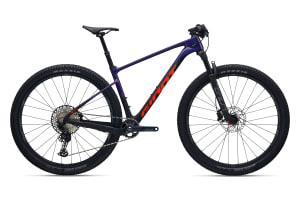

XTC Advanced 29 1

Podobni Artikli

Best For: Kros

XTC Advanced 29 2

:

XTC Advanced 29 3

Skip to compare section

Tehnologije

Advanced Composite Technology
Tubeless System
OverDrive

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4” to 172 cm5’8”
  • M
      171 cm5’7” to 180 cm5’11”
  • L
      179 cm5’10” to 188 cm6’2”
  • XL
      187 cm6’2” to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Dolžina sedežne cevi (mm) (inch)380154311747518,752520,7
A1 Seat Post Insertion Depth (mm) (inch)1656,52208,726010,231012,2
B Kot sedežne cevi (degrees)73,5°73,5°73,5°73,5°
C Top Tube Length (mm) (inch)59523,461424,26352566526,2
D Višina glave okvirja (mm) (inch)953,7953,71054,11154,5
E Krmilni kot (degrees)69,5°69,5°70,0°70,0°
F Zamik vpetja osi (mm) (inch)431,7431,7431,7431,7
G Trail (mm) (inch)953,7953,7953,7953,7
H Medosna razdalja (mm) (inch)108742,8110643,5112844,4115945,6
I Dolžina cevi ob verigi (mm) (inch)42516,742516,742516,742516,7
J Bottom Bracket Drop (mm) (inch)582,3582,3582,3582,3
K Oddaljenost zgornje cevi od gonilne osi (mm) (inch)60423,860423,861324,163224,9
L Doseg (mm) (inch)41616,443517,145317,847718,8
M Višina zgornje cevi (mm) (inch)7372976430,179131,182932,6
N Širina krmila (mm) (inch)76029,976029,976029,976029,9
O Dolžina opore krmila (mm) (inch)602,4702,8803,1903,5
P Dolžina gonilke (mm) (inch)1706,71756,91756,91756,9
Specifikacije
  • Velikosti
    S, M, L, XL
  • Barve
    Abyss Black/Steampunk
  • Okvir
    Advanced-grade composite, 12x148mm thru-axle
  • Vilice
    Fox 32 Float Step Cast Performance, 100mm, GRIP damper, 44mm offset, two-position remote lockout, Boost 15x110 Kabolt
  • Amortizer
    N/A
  • Krmilo
    Giant Contact XC 35, 760x35mm
  • Grips
    Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
  • Opora krmila
    Giant Contact SL XC 35 S:60mm, M:70mm, L:80mm, XL:90mm
  • Opora sedeža
    Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm XL
  • Sedež
    Giant Grit SL
  • Prestavne ročice
    Shimano Deore XT M8100, 1x12
  • Prednji menjalnik
    N/A
  • Zadnji menjalnik
    Shimano Deore XT M8100
  • Zavore
    Shimano Deore XT BR-M8100, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm
  • Zavorne ročice
    Shimano Deore XT BL-M8100
  • Verižnik
    Shimano SLX M7100, 10x51
  • Veriga
    KMC X-12
  • Gonilke z verižniki
    Shimano Deore XT M8120, 32t S:170mm, M:175mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Obroči
    Giant XCR 2 Carbon 29 WheelSystem
  • Pesta
    [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
  • Napere
    Sapim
  • Plašči
    [F] Maxxis Rekon Race, 29x2.4, [R] Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO
  • Dodatki
    tubeless prepared, 2.25" max tire size, 38t max chainring size
  • Teža
    Koliko tehta to kolo? To je pogosto vprašanje. A v resnici v kolesarstvu ni standardov za uradne teže koles, zato je veliko zavajajočih podatkov. Do razlik prihaja zaradi velikosti, materialov okvirja, končne obdelave in opreme. Pri vse lažjih kolesih so te razlike kritične. Pri Giantu verjamemo, da je edini pravi podatek o teži tisti, do katerega boste prišli sami pri vašem prodajalcu.

Prenesite PDF

Vse navedene specifikacije se lahko spremenijo brez obvestila.
