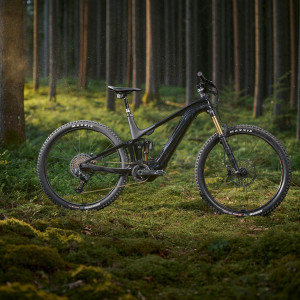

Trance X
Advanced E+ LTD

Deli

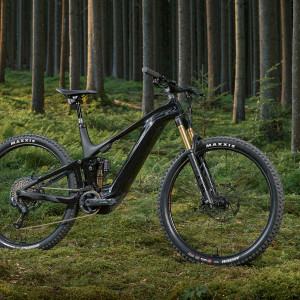

This limited-edition, high-performance E-MTB gives riders the power to conquer any terrain, from big mountain adventures to everyday trail rides, with absolute confidence and fun.

Glavne značilnosti

POWERFUL AND RESPONSIVE

SyncDrive Pro motor with 85Nm of torque creates powerful pedaling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

ADAPTABLE TO THE TERRAIN

Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

CLEAN COCKPIT

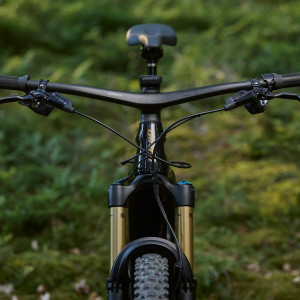

The RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design. An all-new composite Giant Contact SLR Trail Integrated handlebar offers adjustability, compliance, light weight (255gr), and a clean profile.

Domet & Čas Polnenja

Kakšen domet lahko pričakujem na svojem Giant e-kolesu?

Razpon z enim polnjenjem se zelo razlikuje glede na več okoliščin, kot so: zunanja temperatura, odpornost na veter, tlak v pnevmatikah in profil, dvig terena in površina, teža kolesa in tovora, pospeški, vzdrževanje e-kolesa in stanje baterije.

Spodnja tabela prikazuje približni razpon. Pogoji so razvrščeni kot slabi, dobri in idealni. Slabe razmere se običajno pojavljajo pri vožnji s težkim bremenom, močnimi vetrovi ali prekomernimi vzponi.

Energypak 800 / SyncDrive Pro

  • Domet & Čas Polnenja
  • Extreme: 70 km 43 miles
  • Dobro: 140 km 86 miles
  • Idealno: 250 km 155 miles

Poudarki

Built on a lightweight, stiff and durable composite frameset, the Trance X Advanced E+ LTD combines progressive trail bike design with a powerful new motor and battery system. It also features a host of cutting-edge technologies including a flip chip feature that lets riders adjust frame geometry; a new integrated composite handlebar/stem unit; a Fox Live Valve suspension system; and a wireless electronic drivetrain and dropper seatpost. Here’s a look at some of its key technologies.

Trance X Advanced E+ LTD with interactive tooltips

Tehnologije

Advanced Composite Technology
Hybrid Cycling Technology
Maestro Suspension Technology
SyncDrive Pro
PedalPlus 6-Sensor Technology
Energypak
RideControl Go
RideControl Ergo 3

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 174 cm5’9”
  • M
      171 cm5’7”  to 182 cm6’0”
  • L
      179 cm5’10”  to 190 cm6’3”
  • XL
      187 cm6’2”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
  LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
ADolžina sedežne cevi (mm) (inch)40015,742516,745017,747518,7
BKot sedežne cevi (degrees)77,2° | 78,0°76,0° | 76,7°76,0° | 76,7°76,0° | 76,7°
CTop Tube Length (mm) (inch)57722,7 | 57522,660723,9 | 60523,863725,1 | 6352566726,3 | 66526,2
DVišina glave okvirja (mm) (inch)953,71003,91104,31204,7
EKrmilni kot (degrees)65,7° | 66,5°65,8° | 66,5°65,8° | 66,5°65,8° | 66,5°
FZamik vpetja osi (mm) (inch)441,7441,7441,7441,7
GTrail (mm) (inch)1174,6 | 122,44,81174,6 | 122,44,81174,6 | 122,44,81174,6 | 122,44,8
HMedosna razdalja (mm) (inch)122048 | 122148,1123948,8 | 123748,7126849,9 | 126950130051,2 | 130151,2
IDolžina cevi ob verigi (mm) (inch)47318,6 | 47318,647318,6 | 47318,647318,6 | 47318,647318,6 | 47318,6
JBottom Bracket Drop (mm) (inch)301,2 | 200,8301,2 | 200,8301,2 | 200,8301,2 | 200,8
KOddaljenost zgornje cevi od gonilne osi (mm) (inch)60623,9 | 60123,761124,1 | 60523,862124,4 | 61424,263024,8 | 62424,6
LDoseg (mm) (inch)43917,3 | 44717,645718 | 46218,248219 | 48919,351020,1 | 51720,4
MVišina zgornje cevi (mm) (inch)74029,1 | 74629,472728,6 | 73428,971828,3 | 72628,671528,1 | 72328,5
NŠirina krmila (mm) (inch)78030,778030,778030,778030,7
ODolžina opore krmila (mm) (inch)401,6401,6502502
PDolžina gonilke (mm) (inch)1606,31656,51656,51706,7
QVelikost obročnikov 29"29"29"29"
Specifikacije
  • Motor

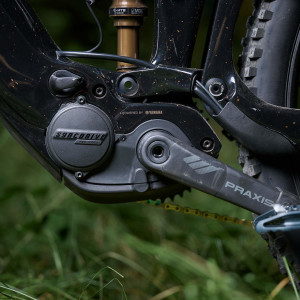

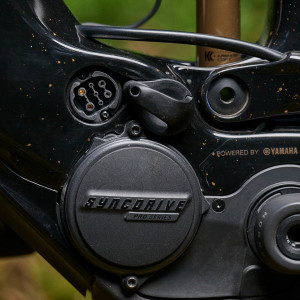

    Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
  • Tipalo

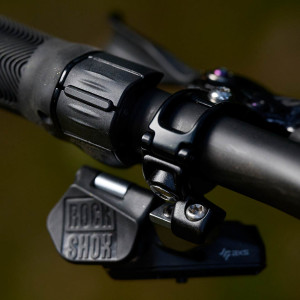

    Giant RideControl Ergo3, grip integrated remote
  • Prikazovalnik

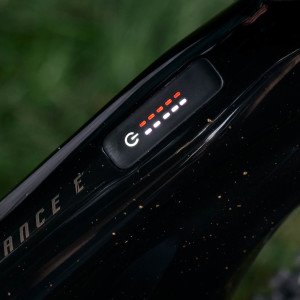

    Giant RideControl GO, frame integrated LED console, Optional wireless ANT+ display
  • Baterija
    Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
  • Charger
    Giant EnergyPak 6A smart charger, 60% in 3:00h
  • Velikosti
    S, M, L, XL
  • Barve
    Kashima Flake
  • Okvir

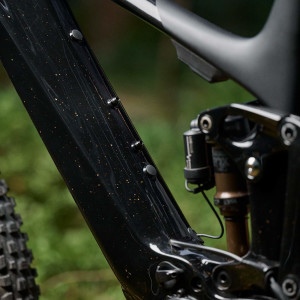

    Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
  • Vilice
    Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, E-bike integrated
  • Amortizer

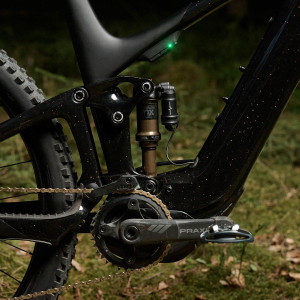

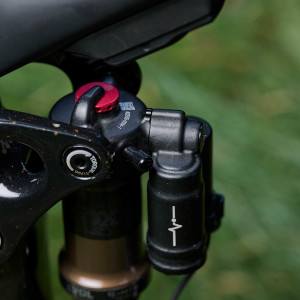

    Fox Float X Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, E-bike integrated
  • Krmilo

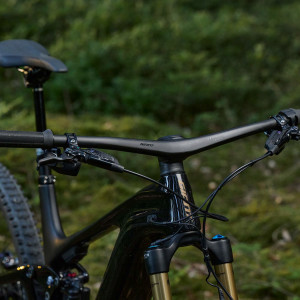

    Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm (760mm minimum cut width), 7/8/9° Back Sweep adjust system, meets DH test standard, GPS mount included
  • Grips
    Giant Tactal Pro-E, single lock-on, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
  • Opora krmila
    Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
  • Opora sedeža
    SRAM Reverb AXS, dropper, 30.9mm (S:125, M:150, L/XL:170)
  • Sedež
    Giant Romero SL, Neutral
  • Pedala
    Flat pedal
  • Prestavne ročice
    SRAM AXS Rocker Paddle, wireless electronic shifting
  • Prednji menjalnik
    MRP HD2 co-moulded chain guide
  • Zadnji menjalnik

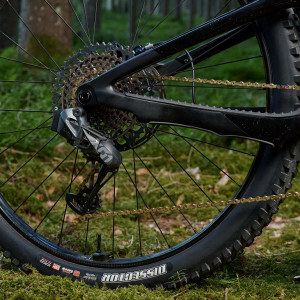

    SRAM XO1 Eagle AXS wireless electronic shifting
  • Zavore
    SRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R]
  • Zavorne ročice
    SRAM Code RSC
  • Verižnik

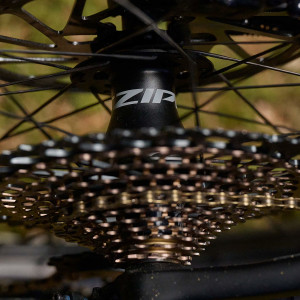

    SRAM XG 1299 Eagle, 10-52T, 12-Speed
  • Veriga
    SRAM XX1 Eagle PowerLock, 12-Speed
  • Gonilke z verižniki
    Praxis Performance Carbon e-crank arms, SRAM X-SYNC Eagle 36T chain ring
  • Bottom Bracket
    -
  • Obroči
    Zipp 3ZERO MOTO Carbon
  • Pesta
    Zipp 3ZERO MOTO ZM2
  • Napere
    Zipp 3ZERO MOTO
  • Plašči
    Maxxis Minion DHF 29x2.6"" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis Dissector 29x2.6"" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
  • Dodatki
    Torx 25 Battery Lock with built-in Torque limiter, Tubeless (Quarq TyreWiz air pressure sensor valves, levers, manual, tool) Inner tube supplied
  • Teža
    Koliko tehta to kolo? To je pogosto vprašanje. A v resnici v kolesarstvu ni standardov za uradne teže koles, zato je veliko zavajajočih podatkov. Do razlik prihaja zaradi velikosti, materialov okvirja, končne obdelave in opreme. Pri vse lažjih kolesih so te razlike kritične. Pri Giantu verjamemo, da je edini pravi podatek o teži tisti, do katerega boste prišli sami pri vašem prodajalcu.

Vse navedene specifikacije se lahko spremenijo brez obvestila.
