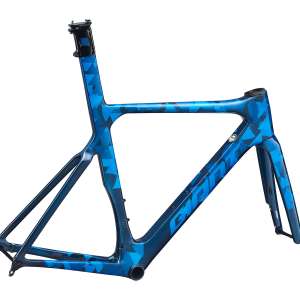

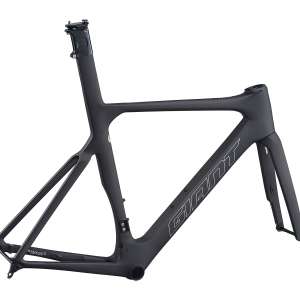

Propel Advanced SL Disc Frameset

What is my size?

Deli

Specifikacije
  • Velikosti
    XS, S, M, M/L, L, XL
  • Barve
    Carbon, Hematite
  • Okvir
    Advanced SL-Grade Composite, integrated seatpost, disc
  • Vilice
    Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Amortizer
    N/A
  • Opora sedeža
    Advanced SL-Grade composite, integrated design, -5/+15mm offset
  • Dodatki
    28mm max tire size, 12mm thru-axles
  • Teža
    Koliko tehta to kolo? To je pogosto vprašanje. A v resnici v kolesarstvu ni standardov za uradne teže koles, zato je veliko zavajajočih podatkov. Do razlik prihaja zaradi velikosti, materialov okvirja, končne obdelave in opreme. Pri vse lažjih kolesih so te razlike kritične. Pri Giantu verjamemo, da je edini pravi podatek o teži tisti, do katerega boste prišli sami pri vašem prodajalcu.

Vse navedene specifikacije se lahko spremenijo brez obvestila.

Poudarki

The Propel Advanced SL Disc is engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. The tubes feature a truncated ellipse shape for a frame that is ultra-stiff and superlight. Disc-brake technology is integrated into the frameset with flat-mount calipers and thru-axles for optimal wheel stiffness and braking performance.

Propel Advanced SL Disc Frame with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ADolžina sedežne cevi (mm) (inch)68026,87102874029,177030,379031,182032,3
BKot sedežne cevi (degrees)74,5°73,5°73,0°73,0°73,0°72,0°
CTop Tube Length (mm) (inch)51520,353521,155021,757022,458022,860523,8
DVišina glave okvirja (mm) (inch)1204,71305,11455,71656,51857,32007,9
EKrmilni kot (degrees)71,0°72,5°73,0°73,0°73,0°73,0°
FZamik vpetja osi (mm) (inch)451,8451,8451,8451,8451,8451,8
GTrail (mm) (inch)702,8602,4572,2572,2572,2572,2
HMedosna razdalja (mm) (inch)97238,397038,297638,499739,3100739,6102140,2
IDolžina cevi ob verigi (mm) (inch)40515,940515,940515,940515,940515,940515,9
JBottom Bracket Drop (mm) (inch)702,8682,7682,7652,6652,6652,6
KOddaljenost zgornje cevi od gonilne osi (mm) (inch)51720,452920,854521,556222,158122,959523,4
LDoseg (mm) (inch)37214,637814,938315,139815,740215,841216,2
MVišina zgornje cevi (mm) (inch)74429,376930,37873180731,882932,684333,2
NŠirina krmila (mm) (inch)40015,740015,742016,542016,544017,344017,3
ODolžina opore krmila (mm) (inch)803,1903,51003,91104,31104,31204,7
PDolžina gonilke (mm) (inch)1706,71706,7172,56,8172,56,81756,91756,9
QVelikost obročnikov 700C700C700C700C700C700C

Tehnologije

Advanced Composite SL Technology
AeroSystem Shaping Technology
Integrated Seatpost
OverDrive 2
RideSense Ready

Vse navedene specifikacije se lahko spremenijo brez obvestila.
