Best For: Vzdržljivostna

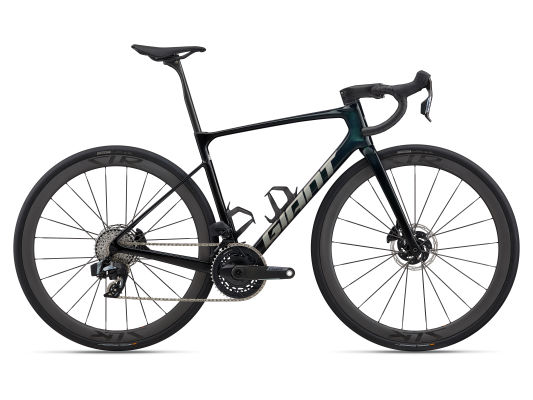

Defy Advanced SL 0
Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.
Advanced SL-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.
A new Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimized for high-volume tubeless tires (up to 38mm), and a 36mm rim depth offers stable, predictable handling in crosswinds.
With greater lateral stiffness and a superlight frame weight of 785g, this is the most efficient Defy ever. The composite frame layup targets smooth-riding performance for long, hard rides. The new D-Fuse SLR seatpost is now lighter and engineered with 40 percent added compliance. The Contact SLR D-Fuse handlebar, also new, features similar D-shaped tubing as the seatpost to absorb shocks and vibrations, plus an 8-degree flare for improved ergonomics and control. Component highlights include the new Contact SLR AeroLight stem with integrated cable routing. A CADEX 36 WheelSystem with superlight hookless carbon rims delivers snappy yet stable handling and superior tubeless tire performance.
Professional-grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including Continuous Fiber Technology, Carbon Nanotube Technology and Fusion Process.
The D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
Proprietary seatpost features a D-shaped composite shaft to better absorb road vibrations without the need for mechanical devices or special inserts. Optimized carbon layup helps increase overall compliance by 40% over previous generation.
Lightweight carbon handlebar with D-shaped tubing combines road-smoothing comfort (40% more compliant than the previous generation) with greater pulling (upward) stiffness for better efficiency while sprinting and climbing.
A massively oversized bottom bracket area features a fully integrated 86mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Frame/handlebar/stem feature unique cable porting for sleek, non-cluttered appearance and performance.
The frame and fork are engineered specifically for flat-mount disc-brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
Composite integrated stem with semi-internal cable routing improves aero performance and aesthetics with wind tunnel-inspired design.
Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
169 cm5’7” 175 cm5’9” 181 cm5’11” 187 cm6’2” 193 cm6’4” 199 cm6’6”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Dolžina sedežne cevi (mm) (inch) | 41016,1 | 44517,5 | 48018,9 | 51520,3 | 53521,1 | 56522,2 |
| B | Kot sedežne cevi (degrees) | 74,5° | 74,0° | 73,5° | 73,0° | 73,0° | 73,0° |
| C | Top Tube Length (mm) (inch) | 51520,3 | 53020,9 | 54521,5 | 56022 | 57522,6 | 59523,4 |
| D | Višina glave okvirja (mm) (inch) | 1204,7 | 1405,5 | 1505,9 | 1756,9 | 1957,7 | 2158,5 |
| E | Krmilni kot (degrees) | 70,5° | 71,8° | 72,5° | 72,5° | 72,5° | 72,5° |
| F | Zamik vpetja osi (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 71,62,8 | 63,42,5 | 58,62,3 | 58,62,3 | 58,62,3 | 58,62,3 |
| H | Medosna razdalja (mm) (inch) | 99539,2 | 99439,1 | 99839,3 | 101039,8 | 102540,4 | 104040,9 |
| I | Dolžina cevi ob verigi (mm) (inch) | 42016,5 | 42016,5 | 42016,5 | 42016,5 | 42016,5 | 42016,5 |
| J | Bottom Bracket Drop (mm) (inch) | 753 | 753 | 753 | 702,8 | 702,8 | 702,8 |
| K | Oddaljenost zgornje cevi od gonilne osi (mm) (inch) | 52720,7 | 54121,3 | 55822 | 57722,7 | 59623,5 | 61524,2 |
| L | Doseg (mm) (inch) | 36914,5 | 37514,8 | 38015 | 38415,1 | 39315,5 | 40215,8 |
| M | Višina zgornje cevi (mm) (inch) | 70527,8 | 73328,9 | 76230 | 79631,3 | 81432 | 84133,1 |
| N | Širina krmila (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 | 44017,3 | 44017,3 |
| O | Dolžina opore krmila (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1003,9 | 1104,3 | 1104,3 |
| P | Dolžina gonilke (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q | Velikost obročnikov | 700C | 700C | 700C | 700C | 700C | 700C |
Vse navedene specifikacije se lahko spremenijo brez obvestila.
